Tenda D305 User Manual

109

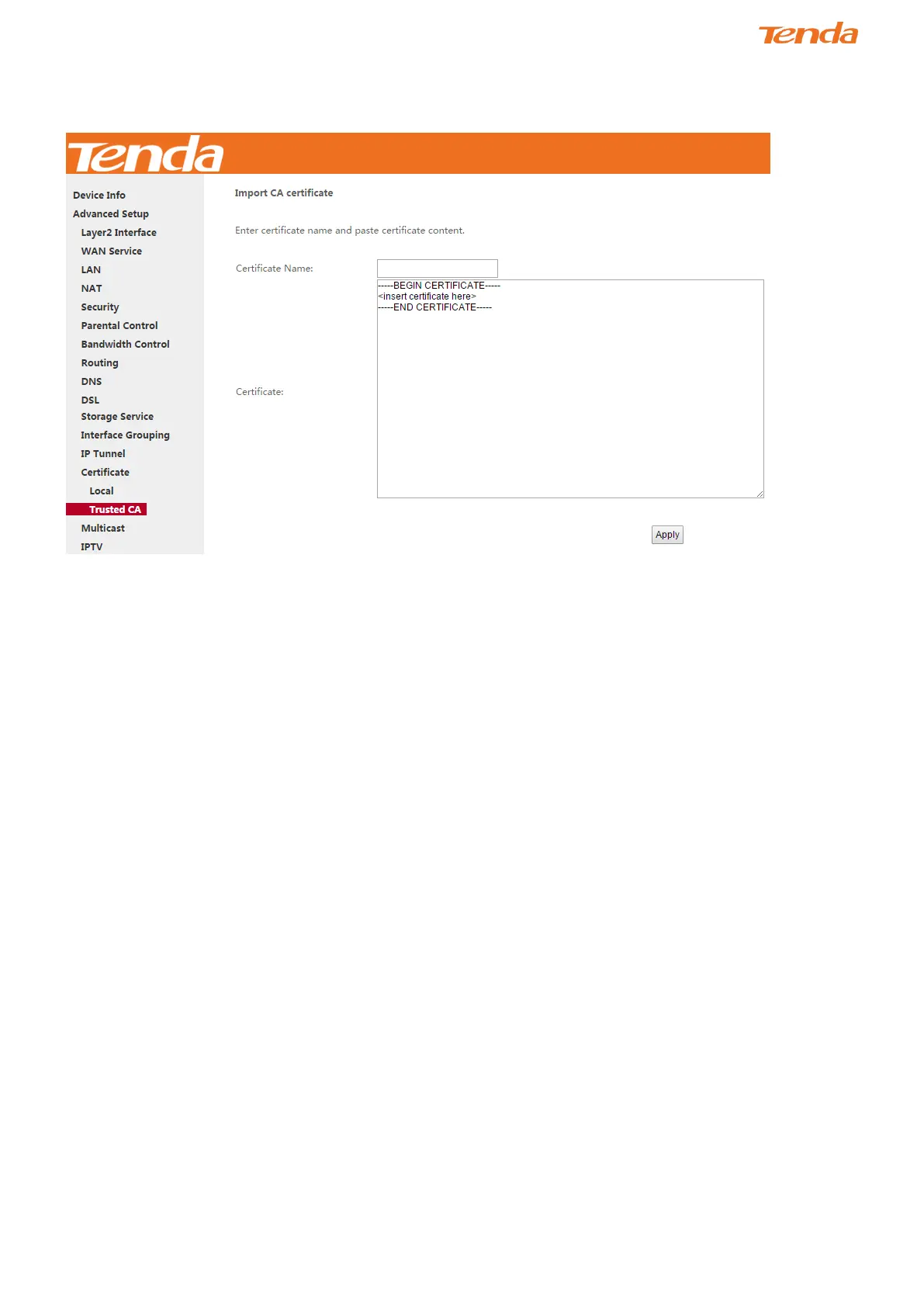

To Import certificate：
① Click the Import Certificate button to enter the page below.
② Enter the certificate name.
③ Paste the certificate content.
④ Click Apply to apply your settings.
4.2.15 Multicast
Here you can configure the multicast feature.
To configure IGMP for IPv4
① Check the LAN to LAN (Intra LAN) Multicast Enable box.
② Check the Membership Join Immediate (IPTV) box. This is only required for IPTV.
③ Keep other options unchanged from factory defaults if you are not an advanced user. This is strongly
recommended.

Tenda D305 Specifications

General

Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Memory card slot(s)	No
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
Product type	Tabletop router
Product color	Black
LED indicators	DSL, LAN, Power, System, USB, WLAN, WPS
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Cables included	LAN (RJ-45), Phone (RJ-11)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPS
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	125 mm
Width	190 mm
Height	26.5 mm
