17
Static IP requires a group of IP info provided by your ISP. Type them in the corresponding field.
Finish the wireless setup. (Recommended)
Click OK.

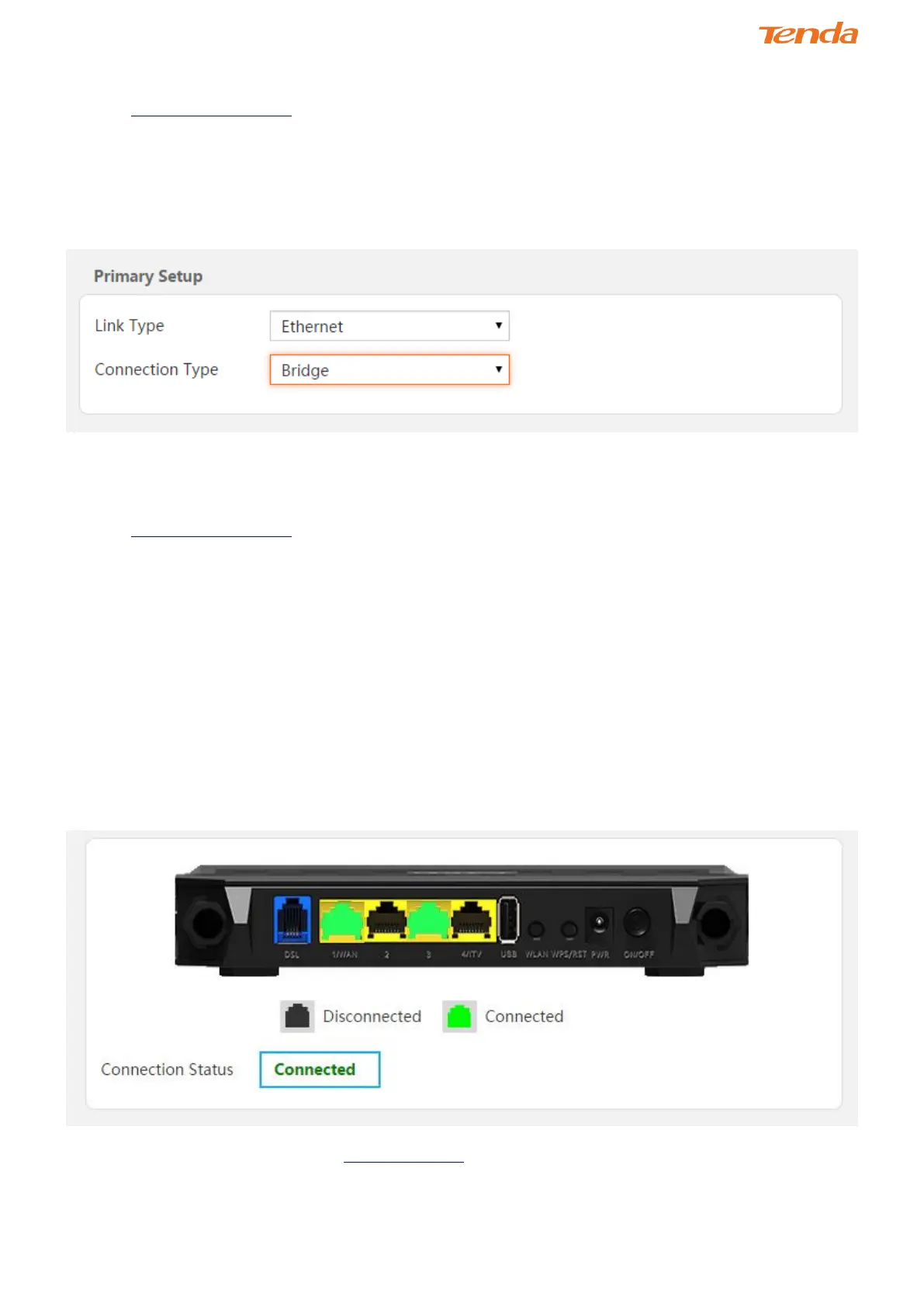

Bridge
Link Type: Select Auto or Ethernet.
Select Bridge connection type.
Finish the wireless setup. (Recommended)
Click OK.
When Bridge mode in Ethernet access is enabled, dial up from the local PC with the account provided by your ISP for
Internet service.
Test Internet Connectivity
After the device is correctly set, it may get to the Internet. (Connection Status: Connected)
You can launch a web browser and search www.tendacn.com. If the webpage displays, you are able to enjoy the Internet
service.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda D305 and is the answer not in the manual?

Tenda D305 Specifications

General IconGeneral
Wi-Fi bandSingle-band (2.4 GHz)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)300 Mbit/s
Antennas quantity4
Antenna gain level (max)5 dBi
Ethernet LANYes
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Memory card slot(s)No
RJ-11 ports quantity1
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports3
Product typeTabletop router
Product colorBlack
LED indicatorsDSL, LAN, Power, System, USB, WLAN, WPS
Output current1 A
Output voltage12 V
AC input voltage100 - 240 V
Power source typeDC
AC input frequency50 - 60 Hz
Cables includedLAN (RJ-45), Phone (RJ-11)
Security algorithms64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPS
CertificationCE, FCC, RoHS
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth125 mm
Width190 mm
Height26.5 mm
