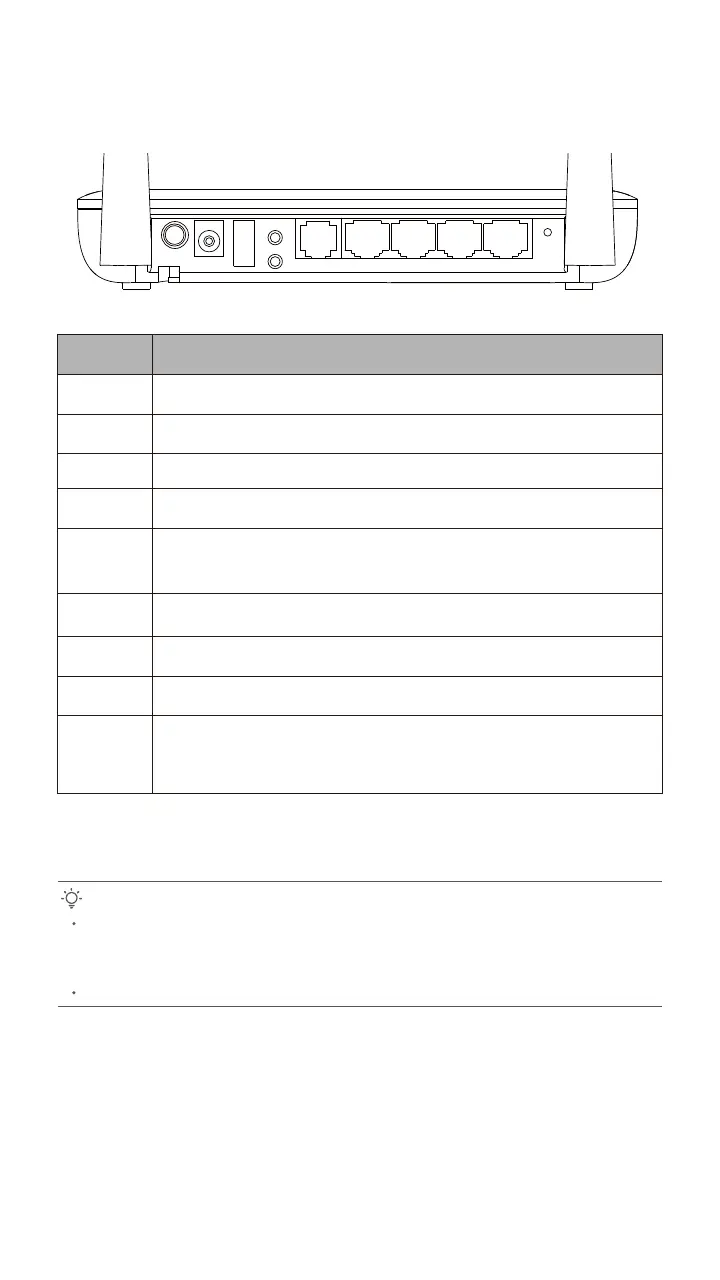

Ports & Buttons
Port/Button
Description
ON/OFF
PON
PWR
USB
WPS
Power on/off button.
Press the button to turn on or off the ONT.
Optical fiber port.
Used to connect to a fiber cord.
Power jack.
Please use the included power adapter to connect the ONT to a power source.
WLAN
Wi-Fi function button.
Press the button to enable or disable the Wi-Fi function of the ONT.
TEL
Telephone port.
Used to connect to a telephone for voice service.
LAN1/2/3/4
One gigabit (LAN4) and three fast LAN ports.
Used to connect to a router, switch, computer or IPTV set-top box.
RESET
Reset button.
After the ONT completes startup, use an object with a spike to hold down the button for 10 or more
seconds and release it. All LED indicators light off in a few seconds. When the PWR LED indicator
lights solid on again, the ONT is reset.
USB 2.0 port.
Used to connect to a USB storage for resource sharing.
WPS button.
Press the button to start the WPS negotiation process of the ONT. The WPS LED indicator blinks.
Within 2 minutes, enable the WPS function on a WPS-supported device to establish a WPS
connection.
Tips:
This ONT supports wall mounting (two mounting holes on the bottom). The recommended parts are
as follows:
Expansion bolt: PA6*26.4 mm; inner diameter: 2.4 mm
Screw: Quantity: 2; Diameter: 3.0-4.0 mm; head diameter: 5.0-6.5 mm; head thickness: ≤2.0 mm.
This ONT is only suitable for mounting at heights ≤ 2m.
