137

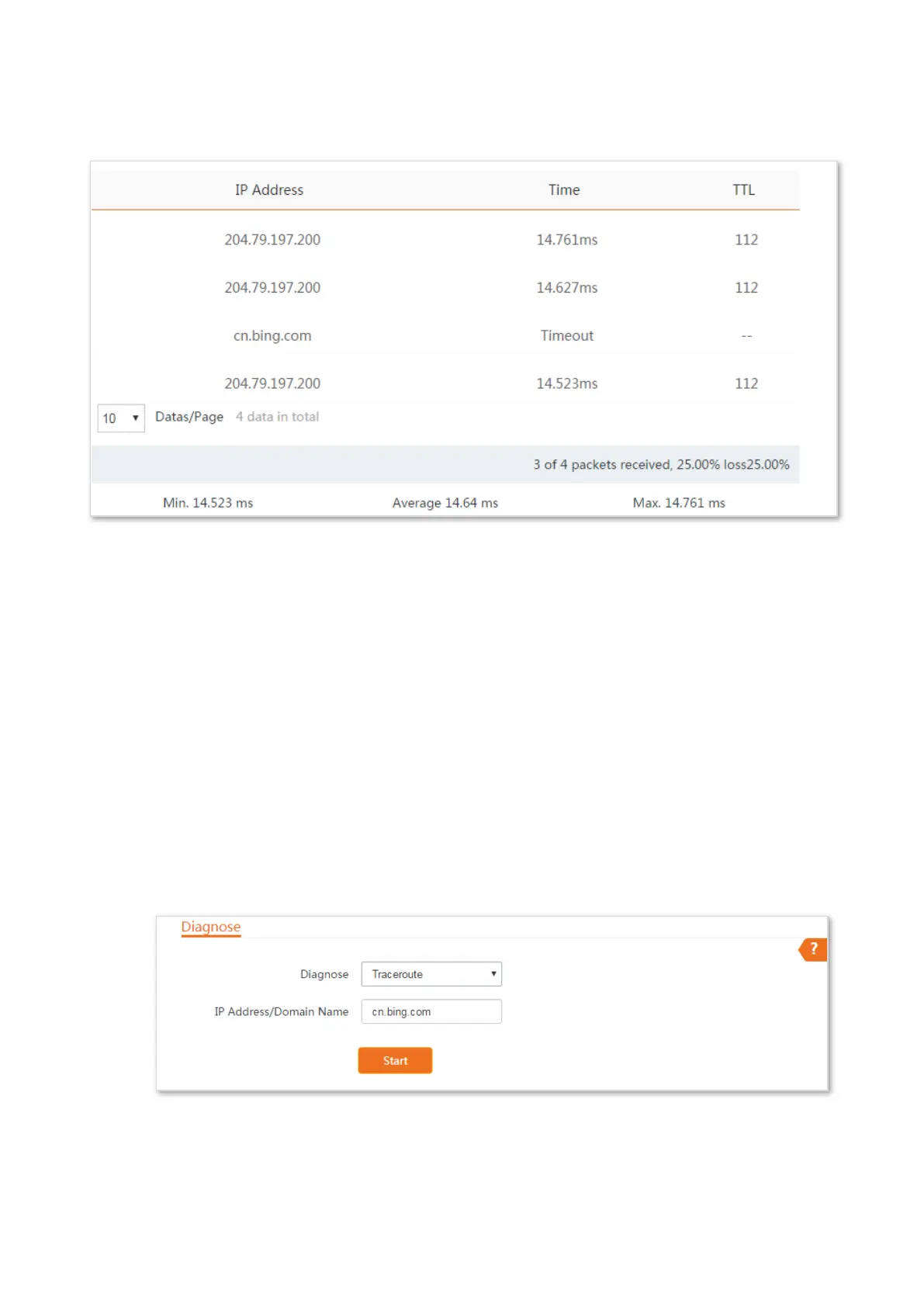

The diagnosis result will be displayed in a few seconds in the list below Start button. See the
following figure:
8.2.4 Traceroute
You can use the Traceroute tool to detect the routes that the packets pass by from the device to
destination host.
Assume that you want to detect the routes that the packets pass by from the device to
cn.bing.com.
Configuration procedures:
Step 1 Start a web browser on the computer connected to the CPE, visit 192.168.2.1 and choose
Advanced > Diagnose.
Step 2 Select Traceroute in the Diagnose drop-down list menu.
Step 3 Enter the target IP address or a domain name, which is cn.bing.com in this example.
Step 4 Click Start.
----End
The diagnosis result will be displayed in a few seconds in the list below Start button. See the
following figure:
