Tenda O1 User Manual

145
Configuration procedures

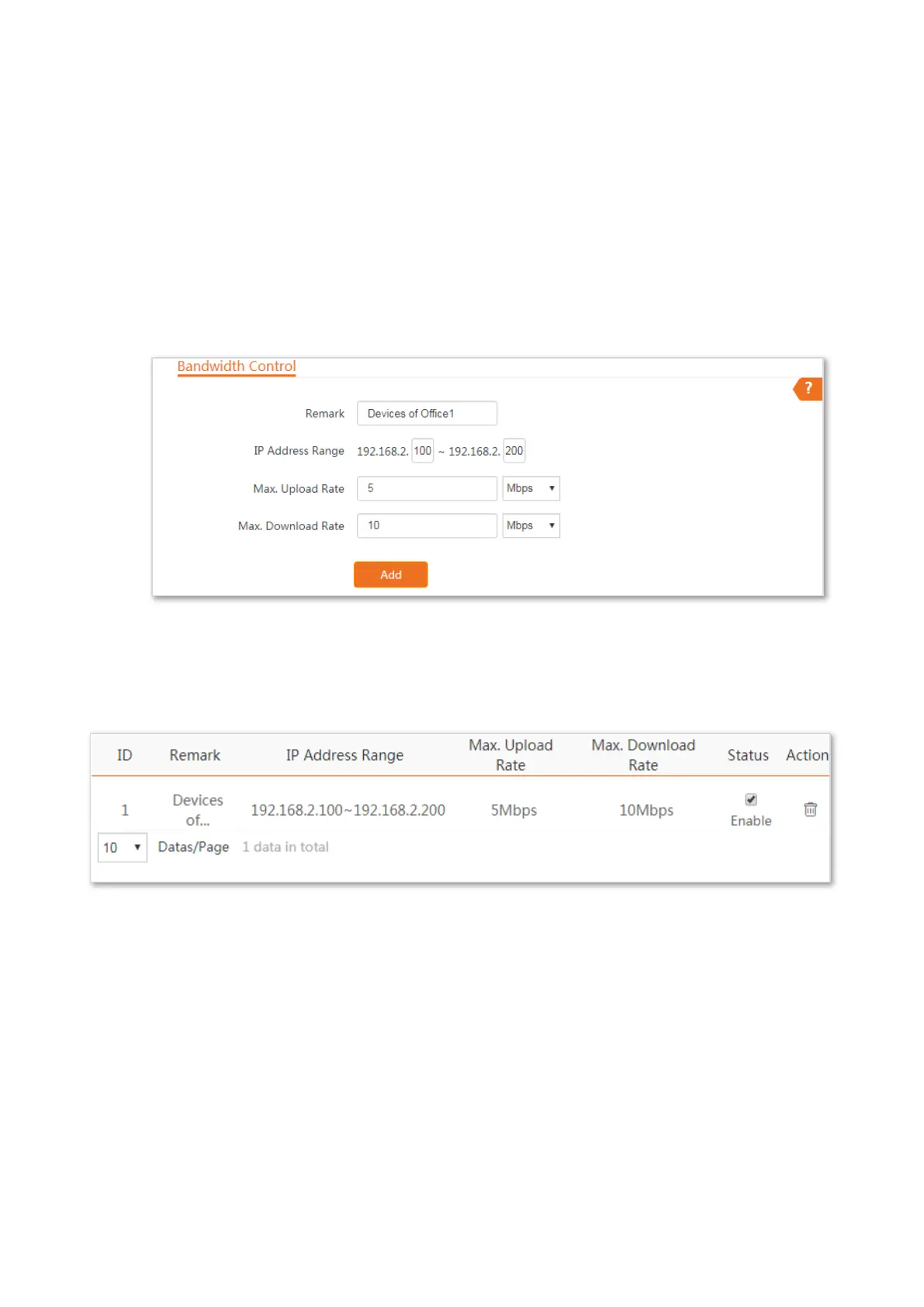

Step 1 Start a web browser on the computer connected to the CPE, visit 192.168.2.1 and choose
Advanced > Bandwidth Control.
Step 2 Enter a remark, such as Devices of Office1.
Step 3 Specify an IP address range, which are 100 and 200 in this example.
Step 4 Specify the maximum upload rate and download rate respectively, which are 5 and 10 in
this example.
Step 5 Click Add.
----End
If the rule is added successfully, it is displayed in the list below the Add button. See the following
figure:
Verification
For a device whose IP address is within the range of 192.168.2.100 to 192.168.2.200, its maximum
upload rate is 5 Mbps and its maximum download rate is 10 Mbps.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
