Tenda O1 User Manual

158

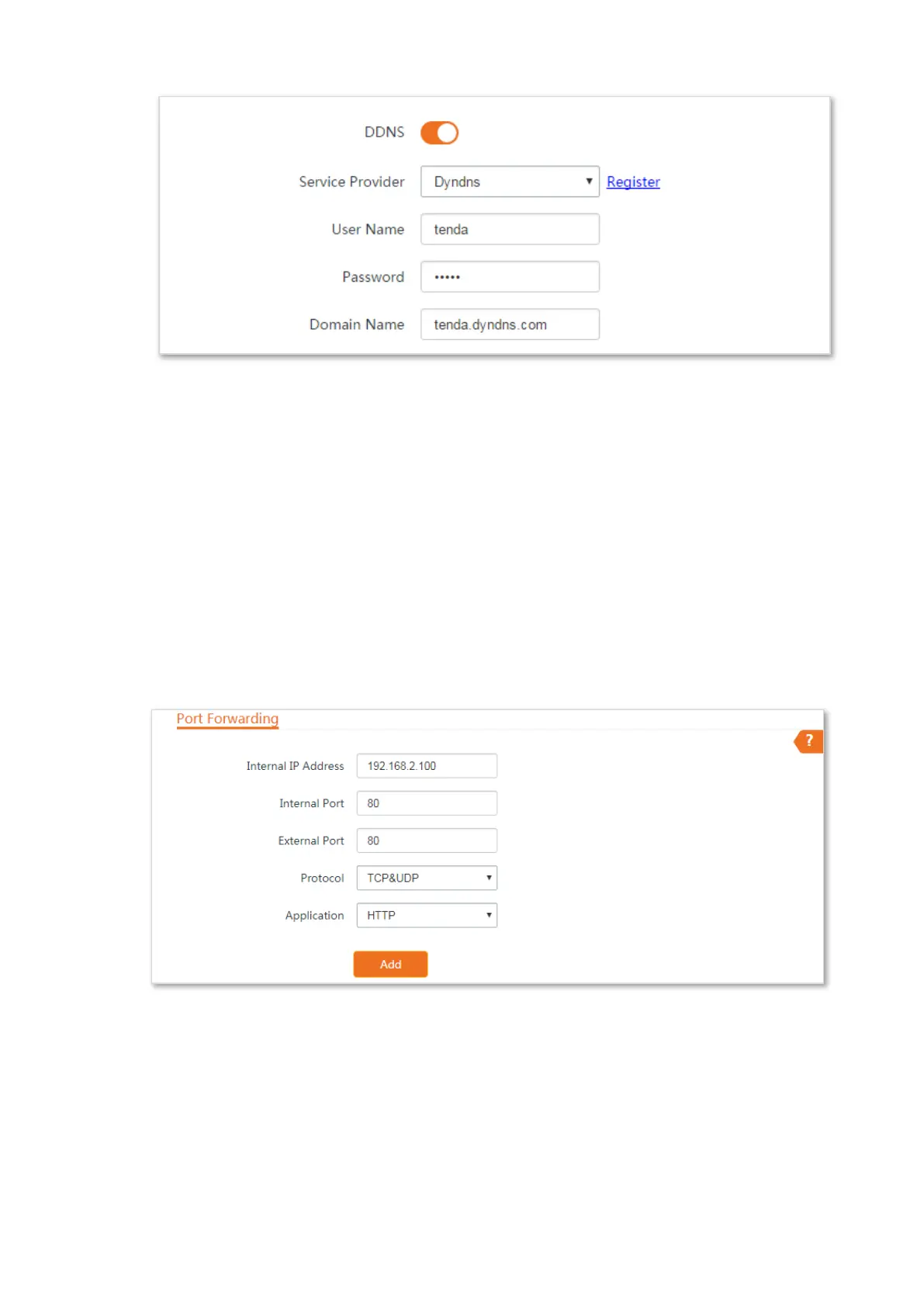

Step 2 Set up the port forwarding function.
Prerequisite: manually set static an IP address and related parameters for the web server to avoid
the service disconnection caused by the dynamic IP address.
1. Start a web browser on the computer connected to the CPE, visit 192.168.2.1 and choose
Advanced > Port Forwarding.
2. Enter the IP address of the web server, which is 192.168.2.100 in this example.
3. Select an application, which is HTTP in this example, and the Internal Port and External Port
will be populated automatically.
4. Select the protocol of the service. TCP&UDP is recommended if you are not sure.
5. Click Add.
----End

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
