Tenda O1 User Manual

10

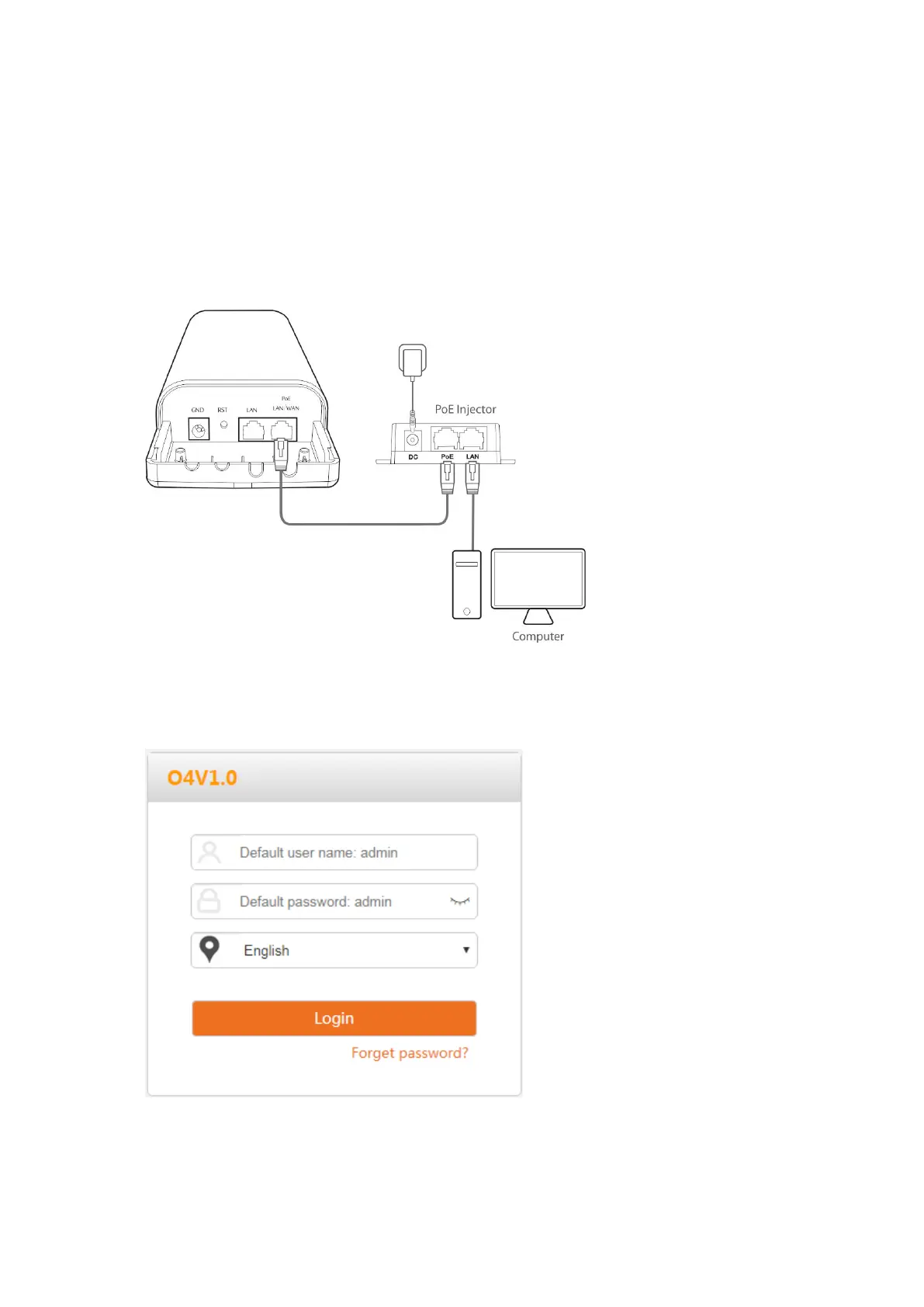

Step 2 Connect the computer to CPE1.
1. Uncover the housing of CPE1.
2. Use an Ethernet cable to connect the PoE LAN/WAN port of CPE1 to the PoE port of the
PoE injector.
3. Use the included power adapter to connect the PoE injector to a power socket. The
LAN/WAN LED indicator of the CPE1 lights up.
4. Use an Ethernet cable to connect your computer to the LAN port of the PoE injector.
Step 3 Set CPE1 to AP Mode.
1. Start a web browser on the computer, and visit 192.168.2.1. Enter your user name and
password (default: admin/admin), and click Login.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
