Tenda O1 User Manual

42

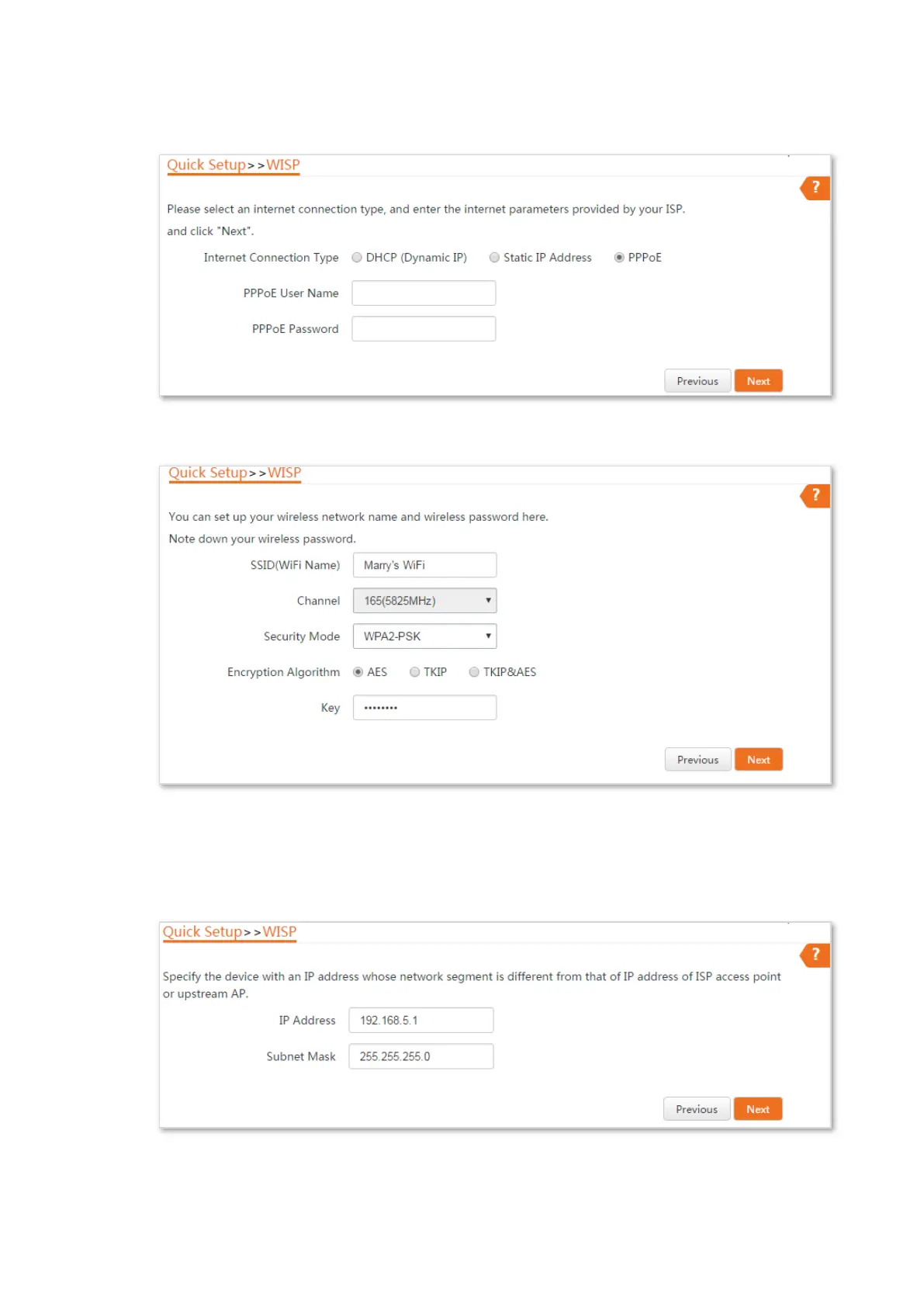

Step 5 Select the Internet Connection Type of your ISP hotspot, which is PPPoE in this example.
Enter the PPPoE user name and password provided by your ISP, and click Next.
Step 6 Customize the SSID and key, and click Next.
Step 7 Set an IP address belonging to a different network segment as that of your ISP hotspot.
For example, if the IP address of your ISP hotspot is 192.168.2.1, you can set this device’s
IP address to 192.168.X.1 (X ranges from 0 to 254 excluding 2) which is also the login IP
address of the CPE. Then click Next.
*
*

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
