Tenda O1 User Manual

43

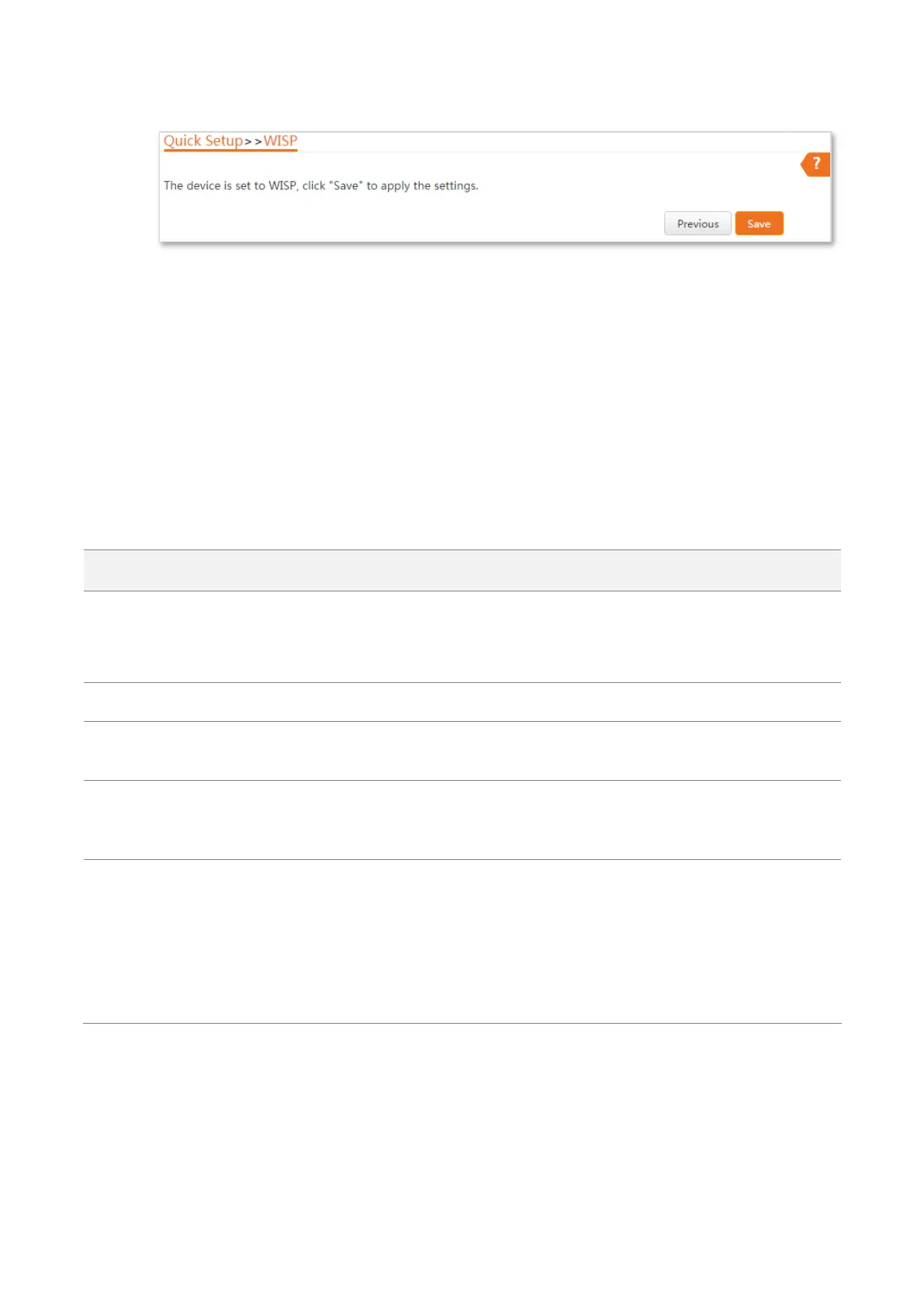

Step 8 Click Save, and wait until the device reboots to activate the settings.
----End
When LED1, LED2, and LED3 of the CPE are blinking, the device is connected to your ISP hotspot
successfully.
To access the internet with:
 Wireless devices: Connect the wireless devices, such as a smart phone, to the WiFi network of
the wireless router which is connected to the CPE.
 Wired devices: Connect the wired devices, such as a computer, to the LAN ports of the
wireless router which is connected to the CPE.
Parameters description
Name
Description
Working modes
It specifies the working mode of this device.
WISP mode: In this mode, the device connects to an access point provided by ISP
in wireless manner.
Upstream AP
It specifies the wireless network name (SSID) of the upstream AP.
Channel
It specifies the operating channel of the WiFi network to be bridged. It will be
automatically populated when you select an SSID to bridge.
Security Mode
It specifies the security mode of the WiFi network to be bridged. It will be
automatically populated when you select an SSID to bridge. If the WiFi network to
be bridged has a WiFi password, you need to enter the password manually.
Internet Connection Type

DHCP (Dynamic IP): The device obtains an IP address and other parameters form
the DHCP server of upstream device for internet access.

Static IP Address: The device access the internet by setting the IP address,
subnet mask, default gateway and DNS server IP addresses manually.

PPPoE: The device access the internet using the PPPoE user name and password
provided by the ISP.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
