Tenda TEG1016D User Manual

6

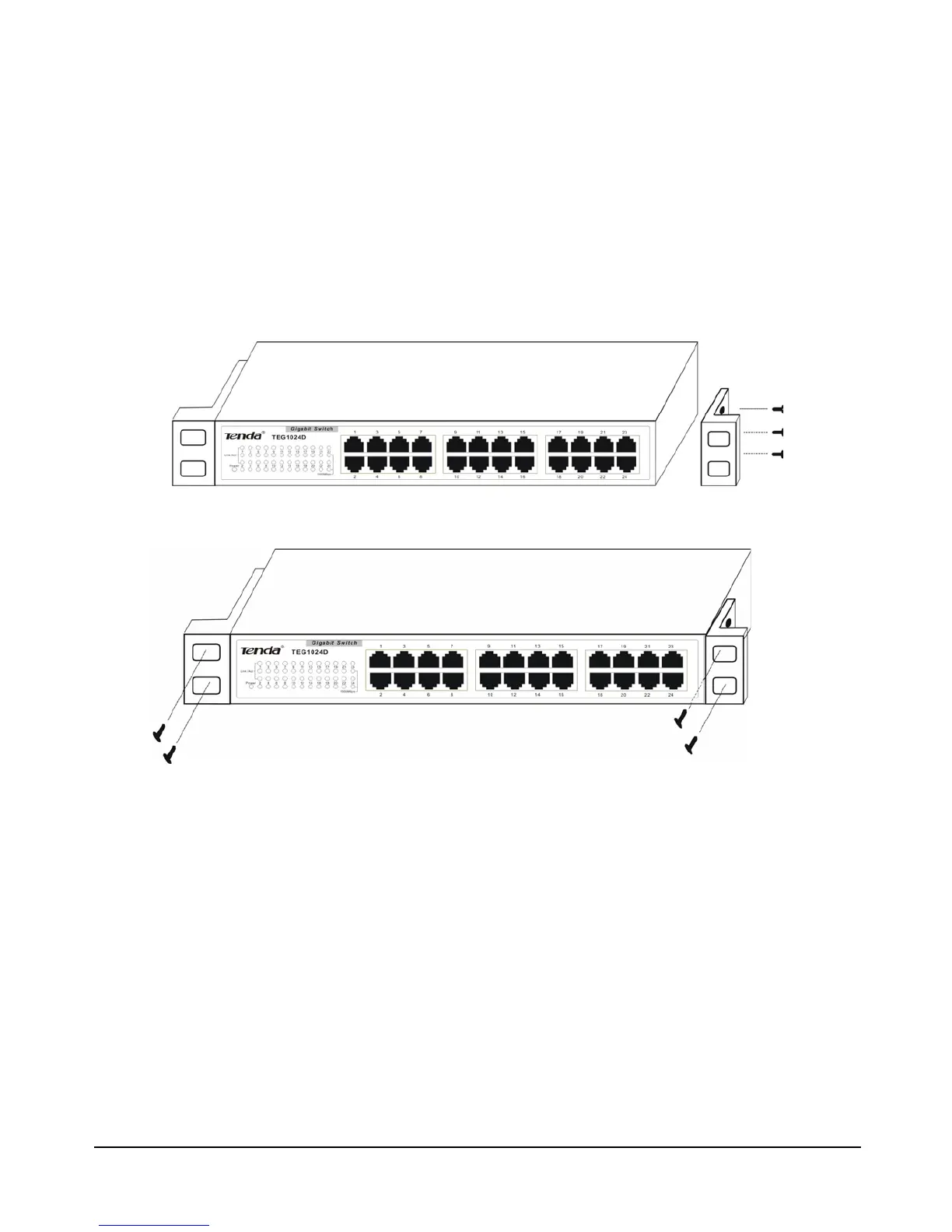

Setting up the Switch on a Rack
The 16/24-Port Gigabit Switch can easily be set up on a rack. Two mounting
ears are employed to stabilize the Switch. In order to view the LEDs, the
front panel exposed is needed. Please refer to the following illustration:
Setting up the Switch to a rack
1. Attach the ears to each side of the Switch, using the screw-holes located
on the side of the device.
2. Firmly attach the ears to the rack as the illustration. Please be careful
during the setup.

Tenda TEG1016D Specifications

General

MAC address table	8000 entries
Store-and-forward	Yes
Maximum data transfer rate	32 Gbit/s
Supported data transfer rates	10/100/1000 Mbps
Wi-Fi	No
Size (imperial)	11 \
Power requirements	100 - 240 V
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Connectivity technology	Wired
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	1000Base-T, 100Base-TX, 10Base-T
Switch type	Unmanaged
Power connector	DC-in jack
Basic switching RJ-45 Ethernet ports quantity	16
Certification	QA
Product color	Blue
Power consumption (typical)	25 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990
