ADSL2/2+ Router

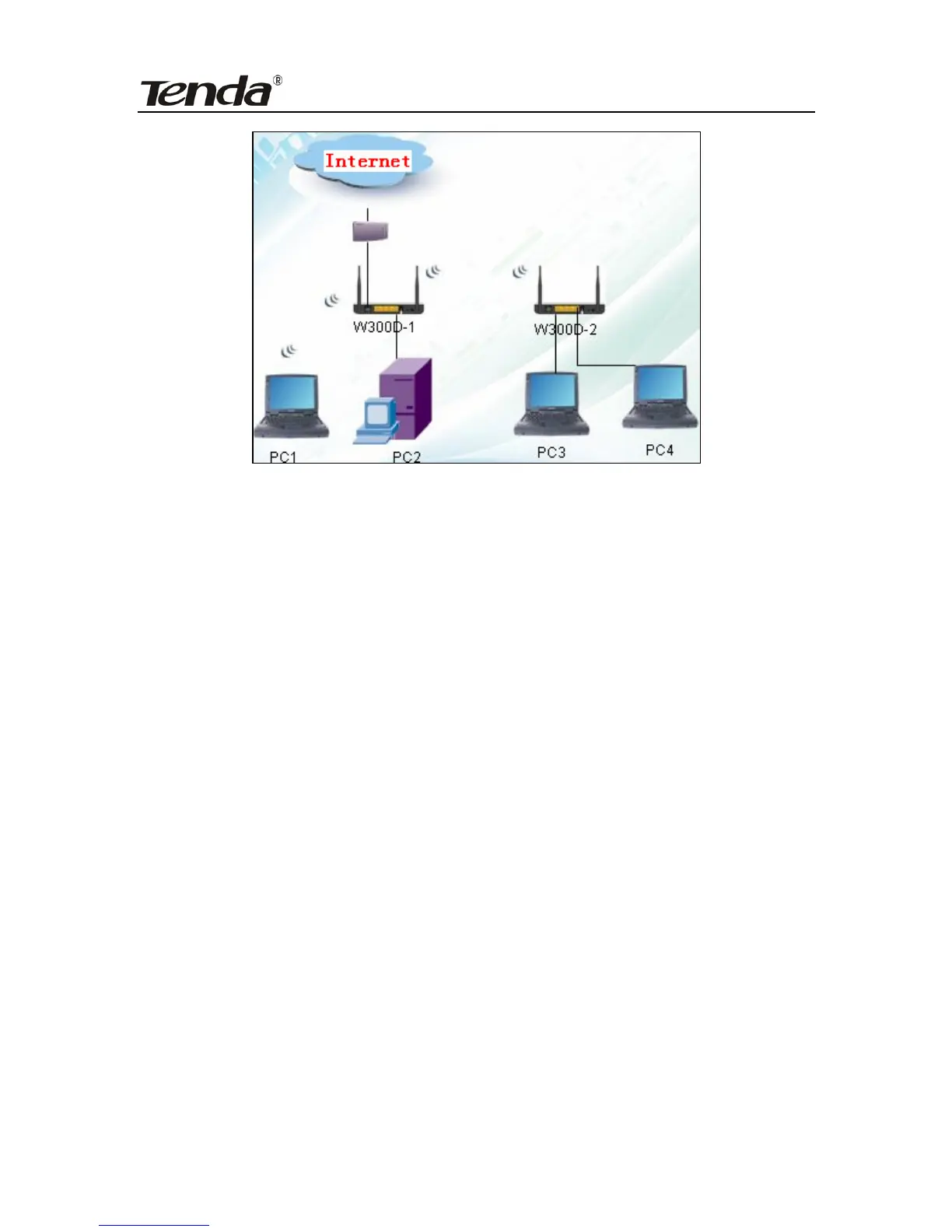

In the above figure, two W300Ds are used to enlarge wireless signal
coverage. W300D-2 is configured as a wireless bridge to establish a
wireless bridge with W300D-1. W300D-2, here, does not have the AP
function, thus, PC3 and PC4 can communicate with W300D-2 and
access Internet only through wired network adapters instead of wireless
ones.
Bridge Restrict：There are three options available: Enabled, Enabled
(Scan) and Disabled.
Enabled: Select it to enable wireless bridge function. You need to know
the MAC address of a remote bridge and enter it manually. 4 MAC
addresses of remote bridges can be saved to simultaneously establish
bridges with 4 APs.
Enabled (Scan):
Select it to enable wireless bridge function. In the
meantime, system will automatically scan MAC addresses of available
wireless devices. See the figure below:
- 105 -
