ADSL2/2+ Router
download will be aborted.
The ports that BT “seed” server frequently uses are in the range of
6900-8100 such as 69698000 and 7373. Therefore, we can block
this port range by creating proper rules to stop BT software from
connecting the server. However, some Non-BT “seed” servers are
also using port 8080, thus, in order not to affect other servers, we
must divide the port range of 6900-8100 to be blocked into 2
groups: 6900-8079 and 8081-8100.
The protocols that BT uses are TCP/UDP, so we need to block
both of them.
URL Filter
URL filter function blocks all LAN PCs from accessing specific domain
names on Internet. It rejects all requests to access the specific
domains.
For example, if you want to prevent all LAN PCs from accessing
www.sina.com.cn, then follow the instructions below:

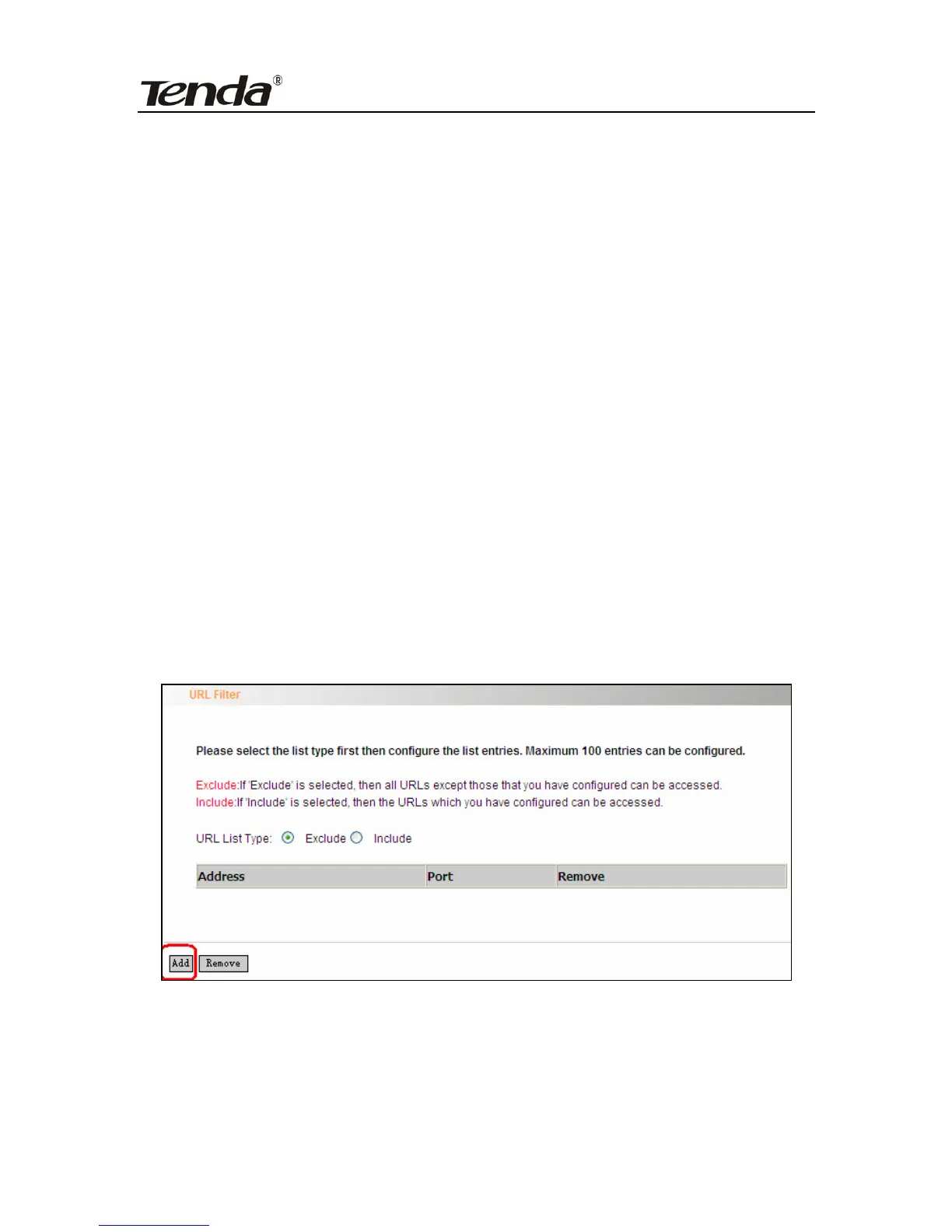

Click “Advanced Setup”Æ“Security”Æ“URL Filter” to the page above
- 75 -

Other manuals for Tenda W300D

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda W300D and is the answer not in the manual?

Tenda W300D Specifications

General IconGeneral
VPN supportPPPTP, L2TP, Ipsec
Ethernet LANYes
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Wi-Fi bandNo
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity13 channels
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)300 Mbit/s
Bandwidth2.4 GHz
InterfaceLAN, WAN, WLAN
Power requirements9V DC
USB ports quantity0
Networking featuresEthernet, Fast Ethernet
Maximum data transfer rate0.1 Gbit/s
Supported data transfer rates10/100Mbit/s
WLAN data transfer rates supported11, 54, 300 Mbit/s
Supported network protocolsIPoE, PPPoE, PPPoA, IPoA, DHCP server
Security algorithmsWEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Antennas quantity2
Antenna gain level (max)5 dBi
Web-based management-
RJ-11 ports quantity1
Ethernet LAN (RJ-45) ports4
CertificationFCC, CE, RoHS
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)9 W
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Cables includedLAN (RJ-45)
Product colorWhite
LED indicatorsLAN, Link, Power, WAN, WLAN
Weight and Dimensions IconWeight and Dimensions
Depth171.95 mm
Width118.97 mm
Height31 mm
Weight- g
