Tenma 72-6947 - Measuring Methods; Measuring an Individual Speaker

-4-
PRIOR TO USE, READ SAFETY
NOTES ON PAGE 2.
1. Ensure the system under test is not live.
2. If prior to use, the
display, batteries should be replaced.
3. Set the function switch to suitable range then press the
pushbutton to test and take the reading.
4. Measuring Methods
" " symbol appears on the
+
-
AUDIO IMPEDANCE TESTER
CAT.III 100V
OFF
72-6947
20W
200W
COM
TEST ON / OFF
2000W
HOLD
-+
DATA HOLD

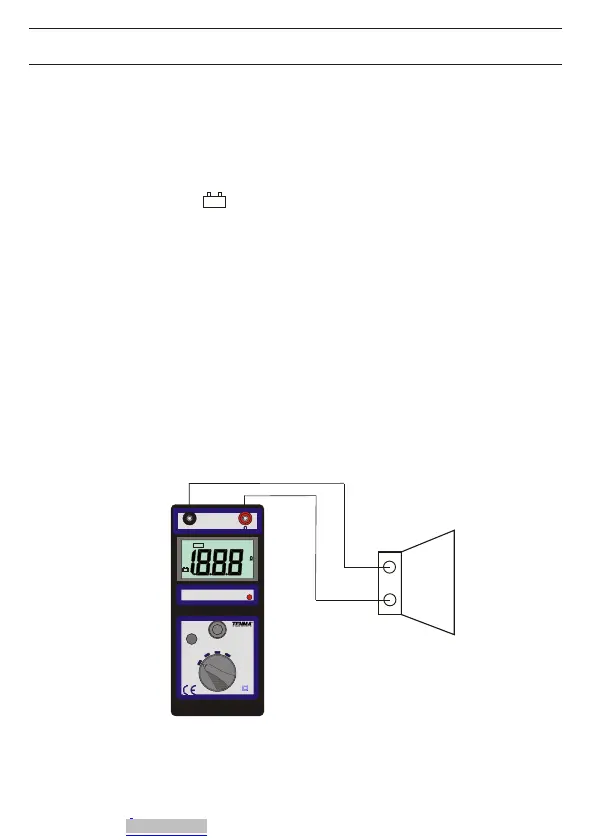

Measuring an Individual Speaker
4. Individual speakers are typically between 2W and 16W. For these
types, the 20W setting should be used. Some special application speakers
may be of much higher impedance. Speakers of up to 2KW (2000W) may
be measured using the 200W or 2000W setting. These higher settings also
allow measurement of speakers when connected to impedance matching
transformers or volume controls. In these cases, the speaker should be
connected to the meter as shown.
