◼ MIPI to Parallel Port Converter
◼ Supports up to 4 data lanes
◼ Package Size：73.4x60.0 mm
⚫ Package Size：73.4x60.0 mm

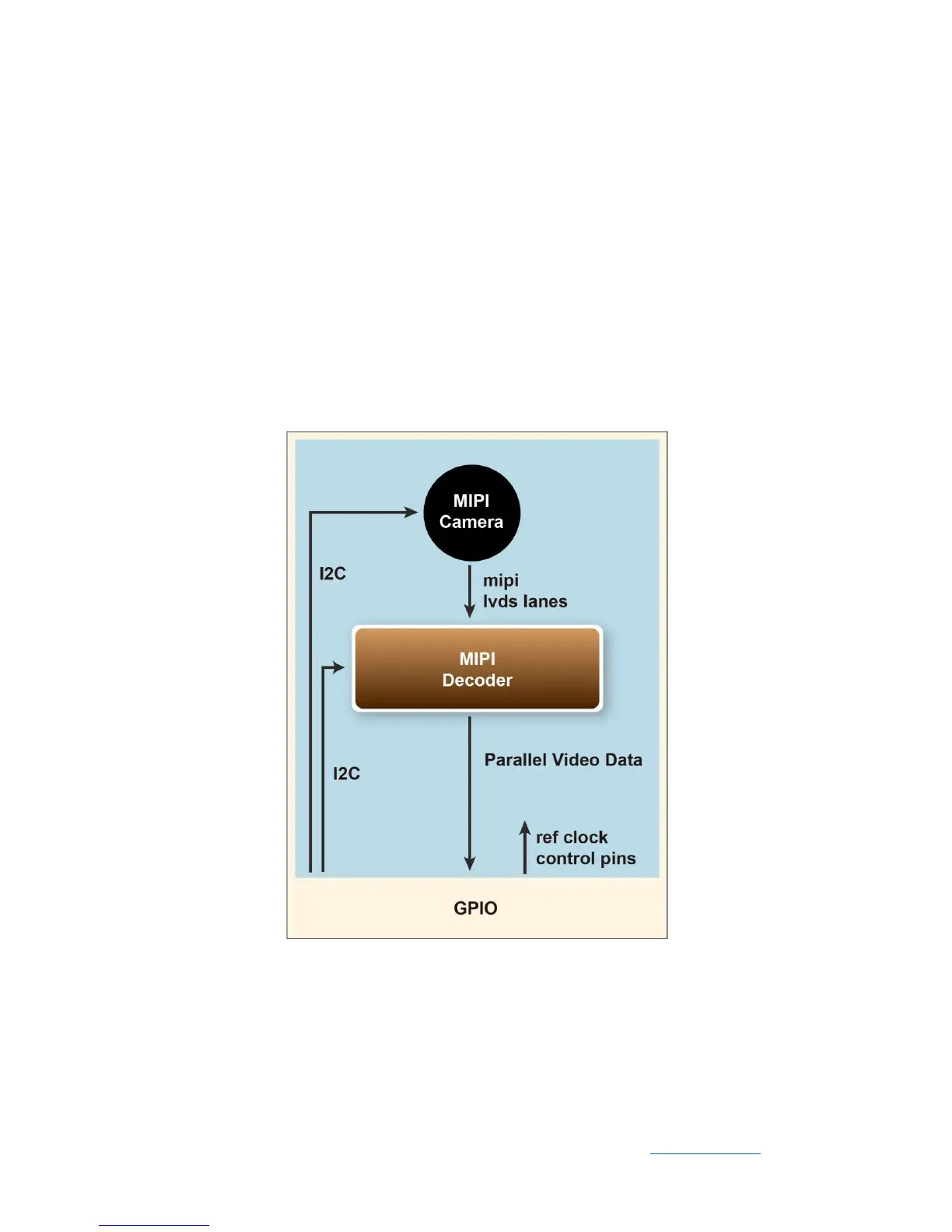

2.2 Block Diagram of the D8M Board
Below Figure 2-2 shows the D8M Block Diagram. MIPI Camera Module outputs 4
Lanes MIPI interface image data, which can be converted to Parallel data by passing
through the MIPI Decoder IC to the GPIO interface. Both MIPI Camera Module and
MIPI Decoder can be controlled by FPGA I2C interface.
Figure 2-2 Block diagram of D8M Board
