Terex 3B6 - Maximum Angle Setting

m
m
%
1
2
4
3
765
8

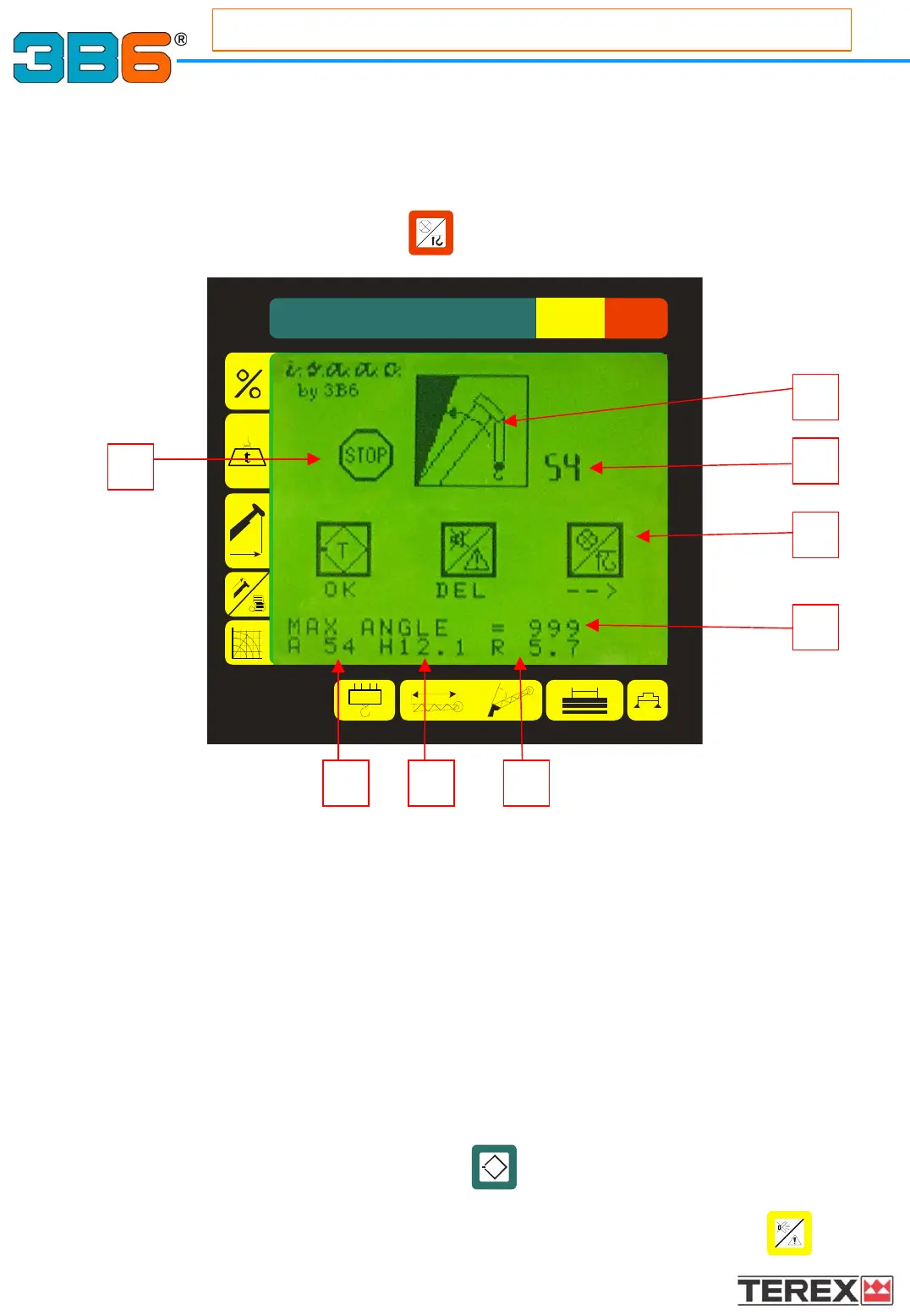

1) Graphic zone: the black area indicates the restricted working area (non-working area for
the boom). Blinking arrow indicates the limited movement
2) Actual Boom angle (degrees)
3) Push button function
4) Text line: indicates the actual stored allowed angle. (999 means no limitation)
5) Actual Boom angle (degrees)
6) Boom height (meters, 1 decimal) (feet/tenths)
7) Radius (meters, 1 decimal) (feet/tenths)
8) Warning: it is activated when the boom reaches the maximum allowed angle. When the
maximum angle is reached, the movement is automatically stopped and the red light is
illuminated at the same time with the “STOP” symbol
How to store max angle:
 Raise (or lower) the boom to the required maximum position.
 Press and release the green button .
 In the text line [4] you will see the blocking angle value in tenth of degrees
 To cancel the stored value, press and release the yellow pushbutton , the
value in the line [4] will be set default to 999 (no angle limit).
MAX Angle Setting:
Press and release the red pushbutton to access the following menu:
Working Area Limiting Link: (option)
Working Area Limiting Link: (option)
i.s.a.a.c. (interactive space advanced automatic control)
22
Appendix
