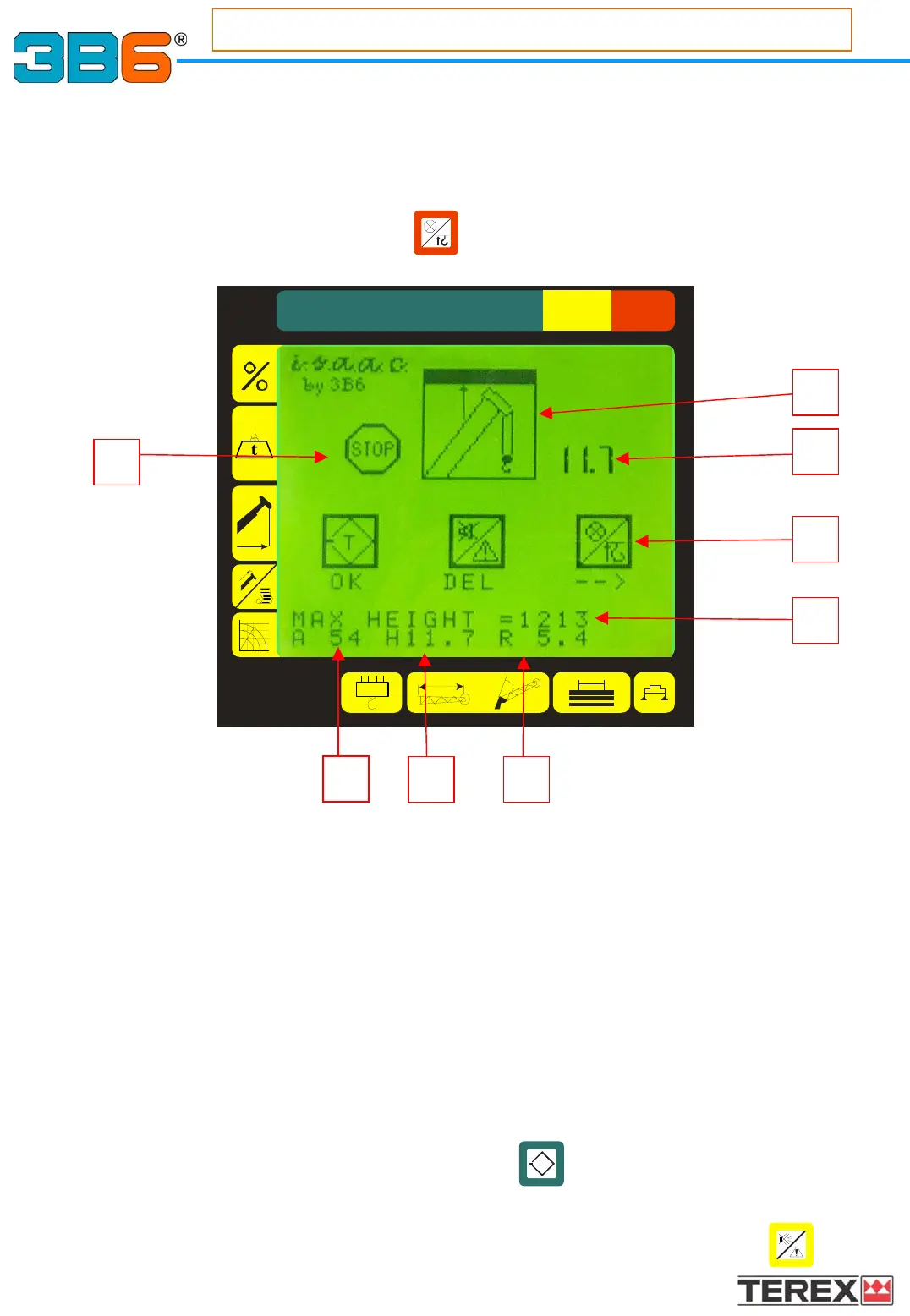

MAX Height setting:
Press and release the red pushbutton to access the following menu:
1) Graphic zone: the black area indicates the restricted working area (non-working area
for the boom). Blinking arrow indicates the limited movement
2) Actual Boom height (meters, 1 decimal) (feet/tenths)
3) Push button function
4) Text line: indicates the actual stored allowed angle. (999 means no limitation)
5) Actual Boom height (degrees)
6) Height of the head of the boom (meters, 1 decimal) (feet/tenths)
7) Radius (meters, 1 decimal) (feet/tenths)
8) Warning: it is activated when the boom reaches the maximum allowed height. When
the maximum height is reached, the movement is automatically stopped and the red
light is illuminated at the same time with the “STOP” symbol
How to store max height:
• Raise (or lower) the boom to the required maximum position.
• Press and release the green pushbutton .
• In the text line [4] you will see the blocking height value in meters plus one
decimal.
• To cancel the stored value, press and release the yellow pushbutton
the value in the line [4] will be set to 9999 (no height limit).
Working Area Limiting Link: (option)
Working Area Limiting Link: (option)
i.s.a.a.c. (interactive space advanced automatic control)
1
2
4
3
8
76
5
23
