5 Installation of generato
340-1560-12.65-37
1
2
3
4

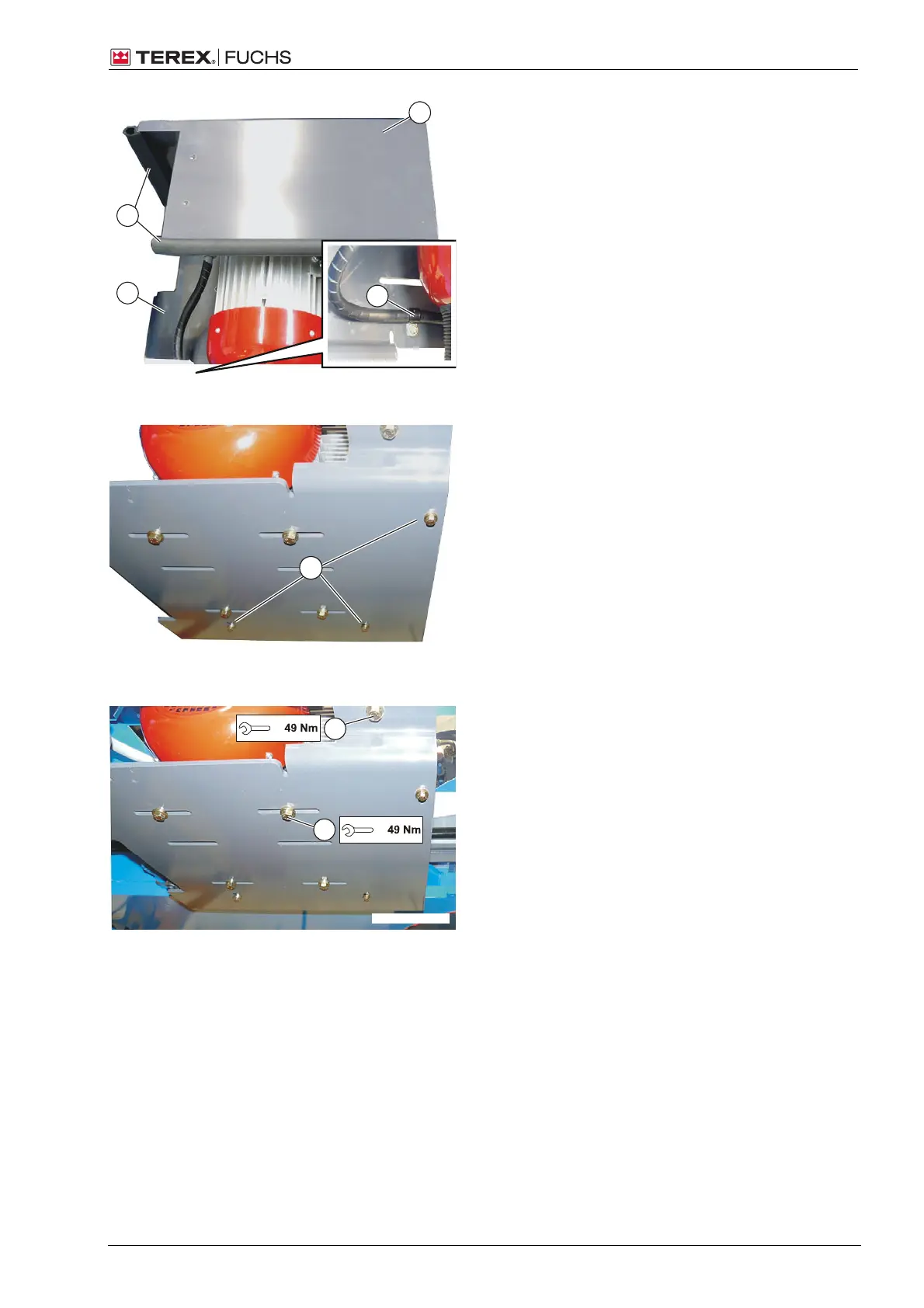

Attaching the shielding plate (attached outside the machine)
Attaching the shielding plate
Apply clamp (4) (only for 13 kW generator).
Insert the sealing profile (3) on the shielding
plate (1).
Set the shielding plate on the generator
plate (2).
340-1560-12.65-38
1
Attaching the shielding plate (view: from below)
Align the shielding plate with the fastening
holes (1).
Tighten the shielding plate screws.
340-1560-12.65-XX
340-1560-12.65-64
2
1
Fastening the generator (view: from below)
Fastening the generator
Place the generator plate on the industrial
truck with the generator screwed onto it,
observing the safety instructions given on
on page 21 and move it back into the ma-
chine.
Align the generator plate according to the
marks you made before letting it down.
Tighten all generator plate fastenings (1).
Torque: 49 Nm.
Tighten all generator fastenings (2).
Torque: 49 Nm.
12.65-SA10403-en-110808 Version 11.08.2008 25 (60)
