Inspections
38 GS
™
-1432m • GS
™
-1932m • GS
™
-1932m Lite Part No. 1308591GT

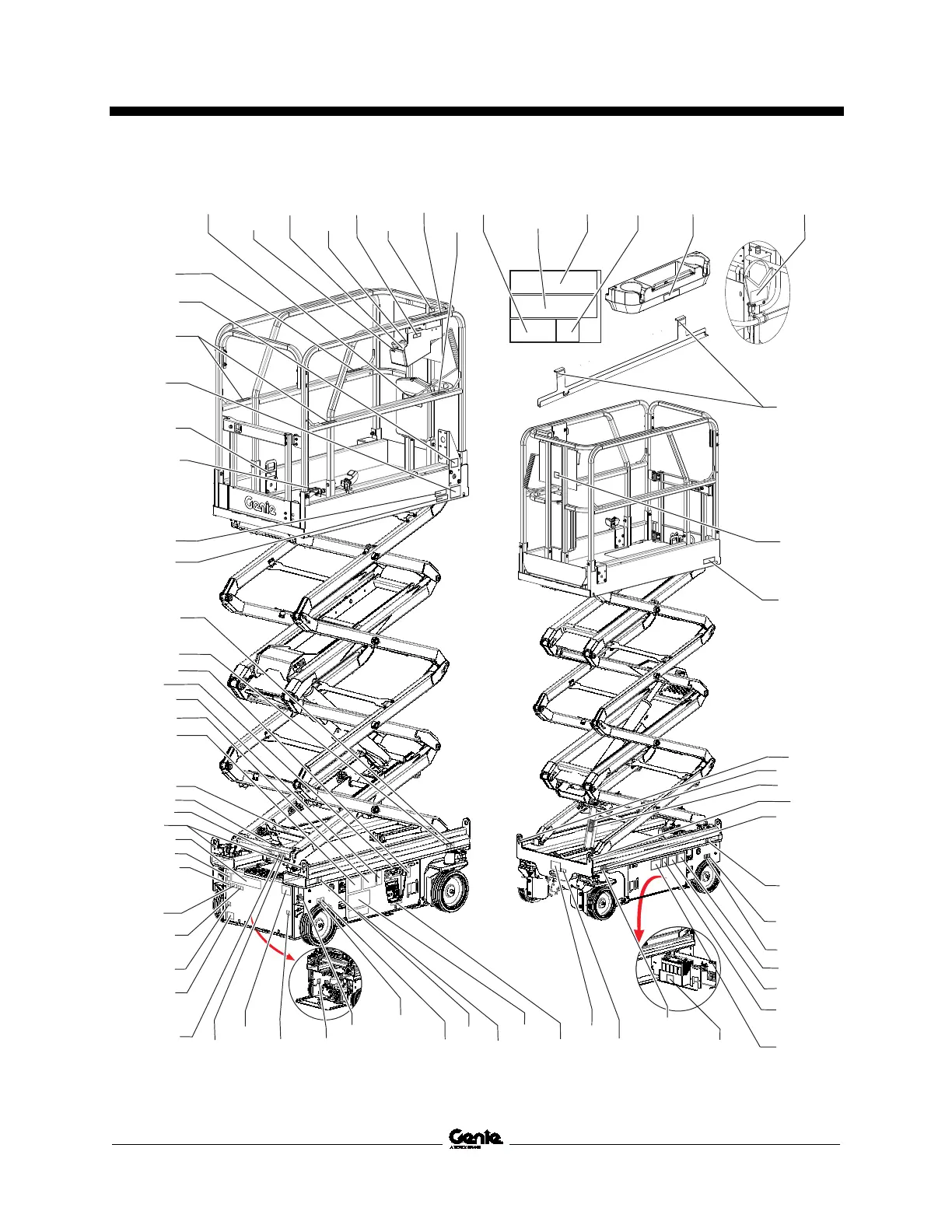

Inspection for Decals with Words
Determine whether the decals on your machine
have words or symbols. Use the appropriate
inspection to verify that all decals are legible and
in place.
Part No. Decal Description
Qty
28236 Warning – Improper Operation
1
38149 Label – Patents
1
43618 Label – Directional Arrows
1
72086 Label – Lifting Point
4
72143 Label – Emergency Stop
1
82557 Label – Platform Controls Location
1
128518 Label – Warning Ribbon
139 in
137605 Label – Emergency Stop, Platform
Control
1
137656 Label – Drive/Steer Direction,
Platform Control
1
1272242 Label – Machine Registration/Owner
Transfer
1
1281174 Label – Lanyard Anchorage Point, Fall
Arrest/Fall Restrained*
5
1283810 Label – Platform Control Panel
1
1283878 Label – Tech Pro Link
1
1280819 Label – Warning, Prop 65
1
1290675 Danger – Explosion/Burn Hazard
2
1292990 Label – Release Brake
1
1293324 Label – ICES-2/CAN-2 Compliance
1
1294398 Label – ANSI/CSA Compliant
1
1294682 Label – Ground Control Panel,
GS-1330m
1
1296034 Label – Smartlink Dual Zone
2
1296821 Decal – Warning, Tool Box
1
1296823 Decal – Warning, Pipe Cradle
2
1296824 Decal – Warning, Panel Carrier
2
1301158 Label – Fault Codes
1
1304174 Decal – Danger-Tip-Over, Battery,
GS-1932m
2
1304175 Decal – Instruct, Battery Connect,
GS-1932m
1
1304176 Decal – Label, Tire Specs, GS-1932m
4
1304177 Label – Wheel Load GS-1932m*
4
1304178 Decal – Electric Drive, E-drive
2
1304179 Label – Transport Diagram, GS-1932m*
1
Part No. Decal Description
Qty
1304183 Decal – Cosmetic Genie, GS-1932m
2
1305410 Label – Transport Tie Down*
3
1305415 Label – Charge Status Ind.*
1
1305416 Label – Power to Platform, 115V*
2
1305417 Label – Power to Platform, 230V*
2
1305418 Label – Power to Charger, 115UK,*
1
1305419 Label – Power to Charger, 230V EU*
1
1305420 Label – Airline 110 PSI*
2
1305424 Label – Direction Arrows*
1
1305427 Label – Danger, Use Safety Arm*
1
1305428 Label – Instructions, Charger Op.*
1
1305429 Label – Improper Operation,Mini*
2
1305430 Label – Danger, Elec. Hazard,GS, Mini*
1
1305431 Label – Operation Inst.,GCON*
1
1305434 Label – Danger, Brake Release Safety*
1
1305435 Label – Emergency Lowering*
1
1305436 Label – Chevron Rando*
1
1305439 Label – Danger/Warning Combo*
1
1305489 Decal – Cosmetic Genie, GS-1432m
2
1306772 Label – Combo, Elec. Haz., Annual Insp.,
Comp Access, Transport Inst.
1
1306781 Label – Hydraulic Tray Open Diagram
1
1306782 Label – Danger Do Not Alter Switch, Mini
1
1306903 Label – Combo, Tip-over Haz., Plat.
Overload, Max Cap, Max Side Force
1
1306904 Label – Combo, Elec. Haz., Tip-over
Haz Tilt Alarm*
1
1307060 Label – Safety Arm, Mini
1
1307117 Label – Wheel Load GS-1432m*
4
1307233 Decal – Platform Overload and Maximum
Capacity Side Force
1
1308331 Decal – GS-1932m Lite
2
1308333 Decal – Label, Wheel Load,
GS-1932m Lite
4
1309406 Decal – Black, Cosmetic Genie,
GS-1932m
2
1309408 Decal – Black, Cosmetic Genie,
GS-1432m
2
Shading indicates decal is hidden from view, i.e.
under covers
* These decals are model, option or configuration
specific.
