Inspections
40 GS
™
-1432m • GS
™
-1932m • GS
™
-1932m Lite Part No. 1308591GT
Inspection for Decals with
Symbols

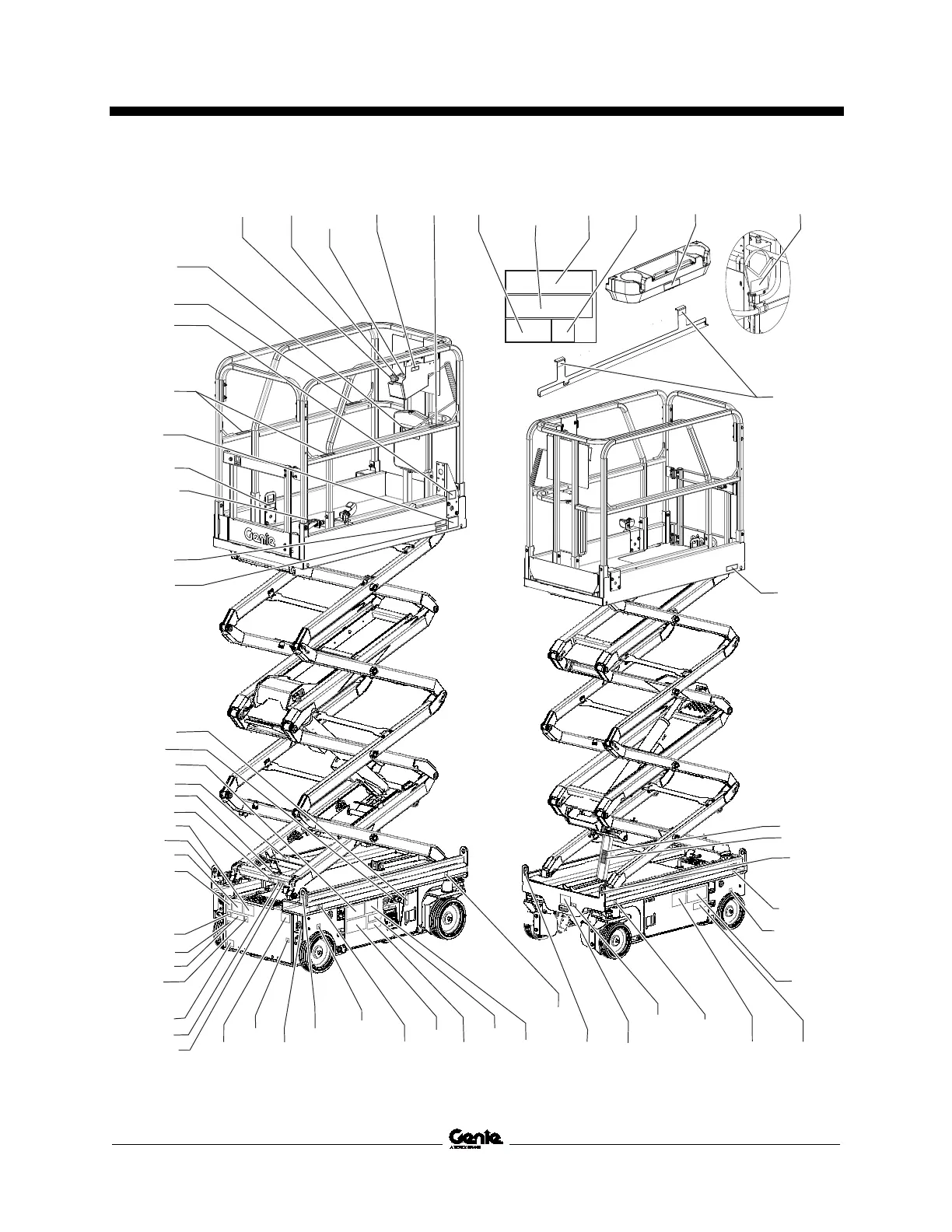

Determine whether the decals on your machine
have words or symbols. Use the appropriate
inspection to verify that all decals are legible and
in place.
Part No. Decal Description
Qty
38149 Label – Patents
1
43618 Label – Directional Arrows
1
72086 Label – Lifting Point
4
72143 Label – Emergency Stop
1
82481 Label – Battery/Charger Safety
2
128518 Label – Warning Ribbon
139 in
137605 Label – Emergency Stop, Platform
Control
1
137656 Label – Drive/Steer Direction,
Platform Control
1
1272242 Label – Machine Registration
1
1281174 Label – Lanyard Anchorage Point,
Fall Arrest/Fall Restrained
5
1283810 Label – Platform Control Panel
1
1283878 Label – Tech Pro Link
1
1292052 Label – Emergency Lowering
GS-1330m
1
1292990 Label – Release Brake
1
1294682 Label – Ground Control Panel,
GS-1330m
1
1296034 Label – Smartlink Dual Zone
2
1298467 Label – Read the Manual
5
1304177 Label – Wheel Load GS-1932m*
4
1304178 Decal – Electric Drive, E-drive
2
1304179 Label – Transport Diagram,
GS-1932m*
2
1304180 Label – Tip-over Hazard, Batteries,
GS-1932m*
2
1304183 Decal – Cosmetic Genie, GS-1932m
2
1305409 Label – Compartment Access,
Symbol
3
1305410 Label – Transport Tie Down
3
Part No. Decal Description
Qty
1305411 Label – Hazard, Safety Arm, Symbol
1
1305412 Label – Safety Arm, Symbol
1
1305413 Label – Danger, Electrocution Hazard
1
1305414 Label – Read the Manual
2
1305415 Label – Charge Status Ind.
1
1305416 Label – Power to Platform, 115V*
2
1305417 Label – Power to Platform, 230V*
2
1305418 Label – Power to Charger, 115UK,*
1
1305419 Label – Power to Charger, 230V EU*
1
1305420 Label – Airline 110 PSI*
2
1305421 Label – Tip-over Hazard, Tilt Alarm
1
1305424 Label – Direction Arrows*
2
1305425 Label – Electrocution Hazard, Plug
1
1305426 Label – Brake Release Safety and
Operating Instructions
1
1305437 Label – Power to Platform, Aktio*
2
1305496 Label – Power to Charger, Aktio*
1
1305489 Decal – Cosmetic Genie, GS-1432m
2
1306781 Label – Hydraulic Tray Open
Diagram
1
1306901 Label – Tip-over Hazard, Limit Switch
1
1306950 Label – Plat. Overload, Max Cap.,
Side Force
1
1306951 Label – Electrocution Haz.,
Danger, Warning
1
1307117 Label – Wheel Load GS-1432m*
4
1307234 Decal – Platform Overload and
Maximum Capacity Side Force,
1 Person
1
1308331 Decal – GS-1932m Lite
2
1308333 Decal – Label, Wheel Load,
GS-1932m Lite
4
1309406 Decal – Black, Cosmetic Genie,
GS-1932m
2
1309408 Decal – Black, Cosmetic Genie,
GS-1432m
2
Shading indicates decal is hidden from view, i.e.
under covers
* These decals are model, option or configuration
specific.
