Operating Instructions Wheel Loader TL120
Care and Maintenance 7
7.8.12.2 Differential of rear axle with
transmission
Checking the axle oil level
Remove the inspection plug (61/1), check and top up
oil if required.
Changing axle oil
• Park the machine on a level surface.
• Open the inspection plug (61/1) and the filler
plug (61/3).
• Open the drain plugs on the differential (61/2) and
the transmission (61/4) and drain oil.
• Flush out the axle if necessary.
• Carefully close the drain plugs.
• Pour in oil using the filling hole (61/3) until oil
escapes from the checking tap.
• Carefully close the inspection plug (61/1) and the
filler plug (61/3).

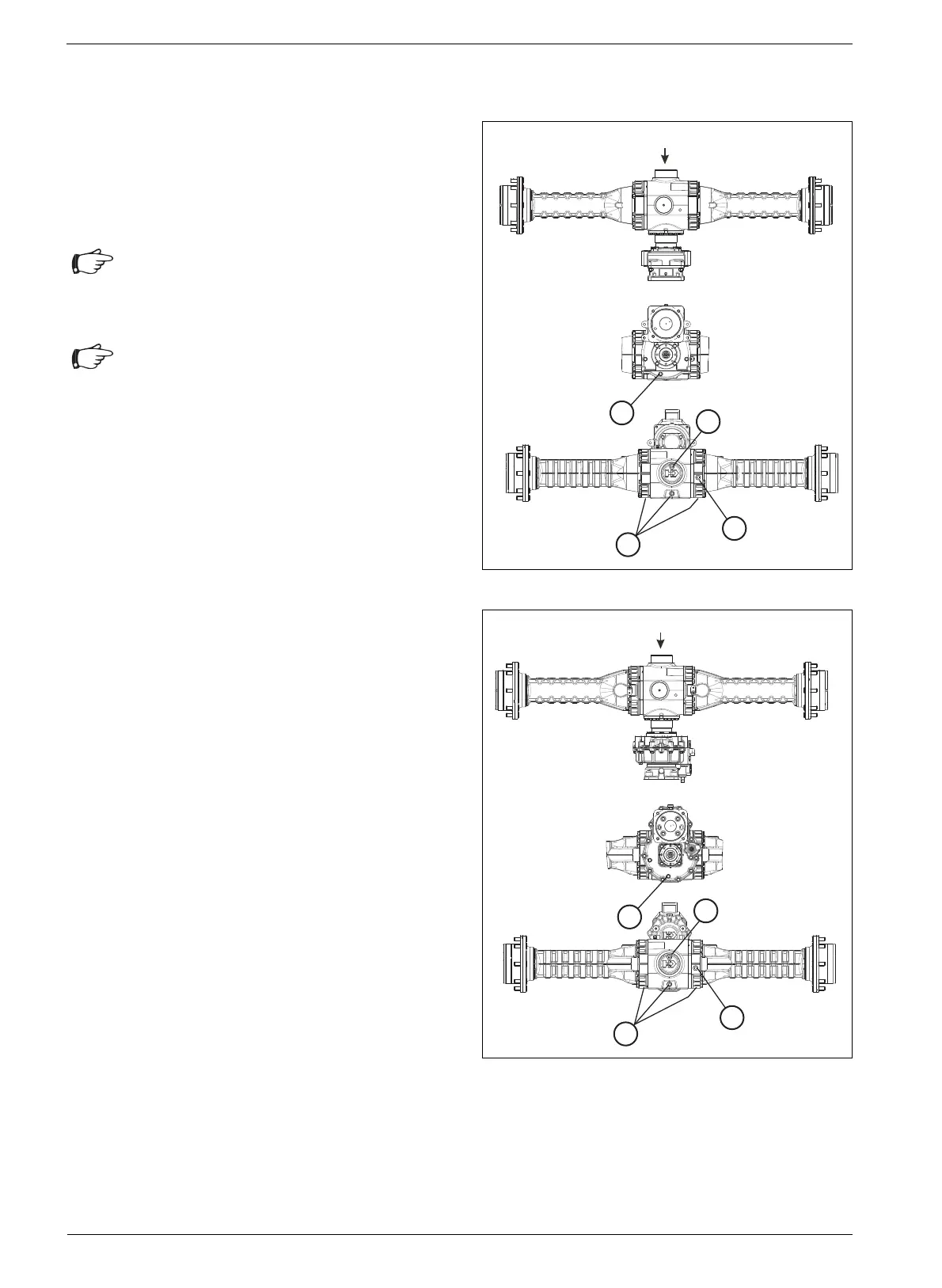

Fig. 61 Changing the axle oil of the rear axle
Fig. 62 TL120 S - Changing the axle oil of the rear axle
X
X
1
3
2
4
X
X
1
3
2
4
Attention
The rear axle differential and the
transmission have combined oil filling.
Attention
• If you have the TL120 S, please use
Fig. 62 instead of Fig. 61 for the following
operations. Fig. 62 shows the rear axle
installed in the TL120S.
