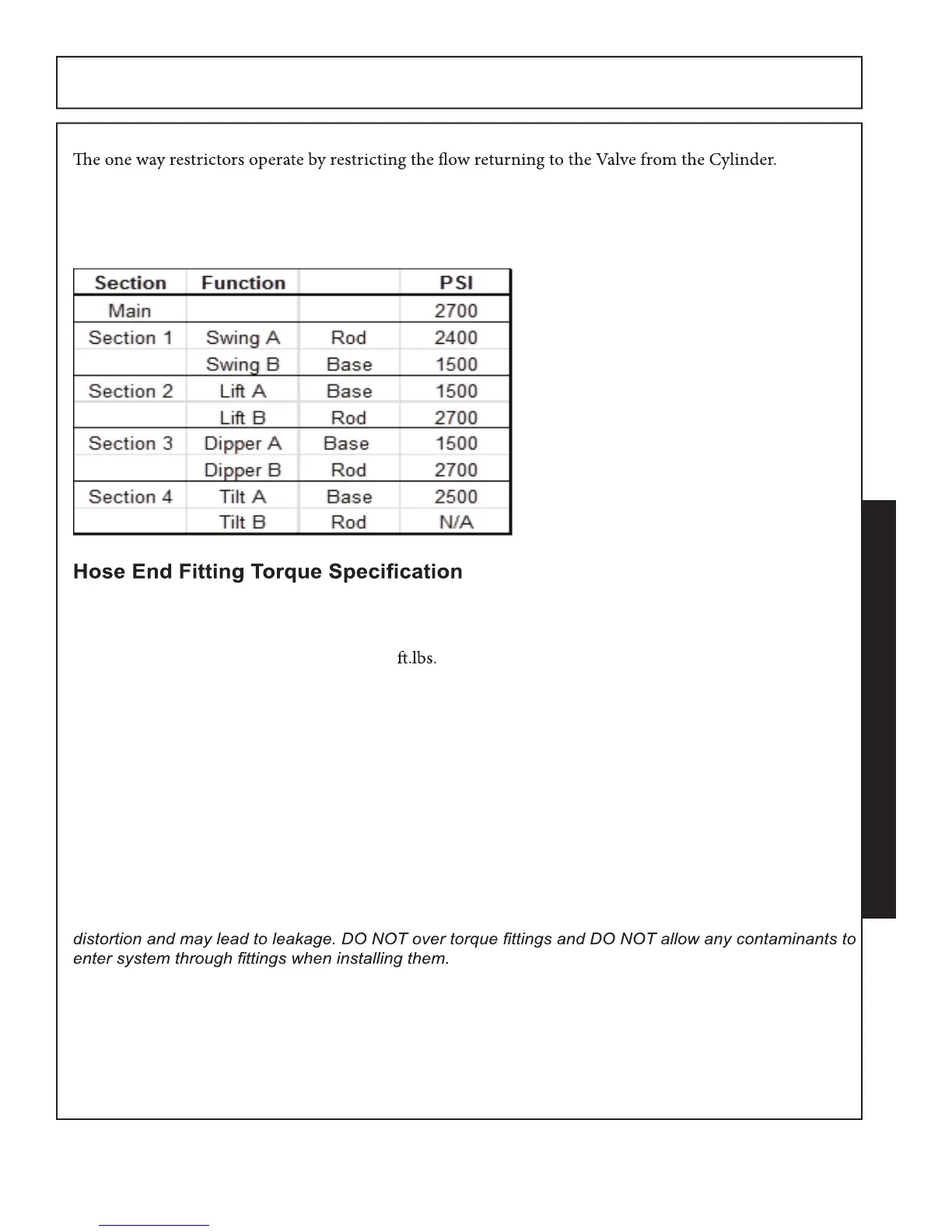

Terrain King KB21 - One Way Restrictors; Valve Sections Function; Hose End Fitting Torque Specification

KB21 Service Manual Pub 09-14
52
Cylinder Control Systems
40-A. Bucher L.8S - Manual Control/Cable
One Way Restrictors
Valve Sections Function
Hose End Type: 37 Degree Angle End Steel Hose End Fittings*
Dash Size Nominal
Cyl. Size (in)
Torque
in.lbs.
Torque
-4 1/4” 140 12
-6 3/8” 230 19
-8 1/2” 450 38
-10 5/8” 650 54
-12 3/4” 900 75
-16 1” 1200 100
-20 1-1/4” 1600 133
-24 1-1/2” 2000 167
-32 2” 2800 233
*Note: Straight threads do not always seal better when higher torgue are used. Too much torque causes
