KB21 Service Manual Pub 09-14
69
Cylinder Control Systems
40-B. Bucher L.8S - Electric Control/Cable

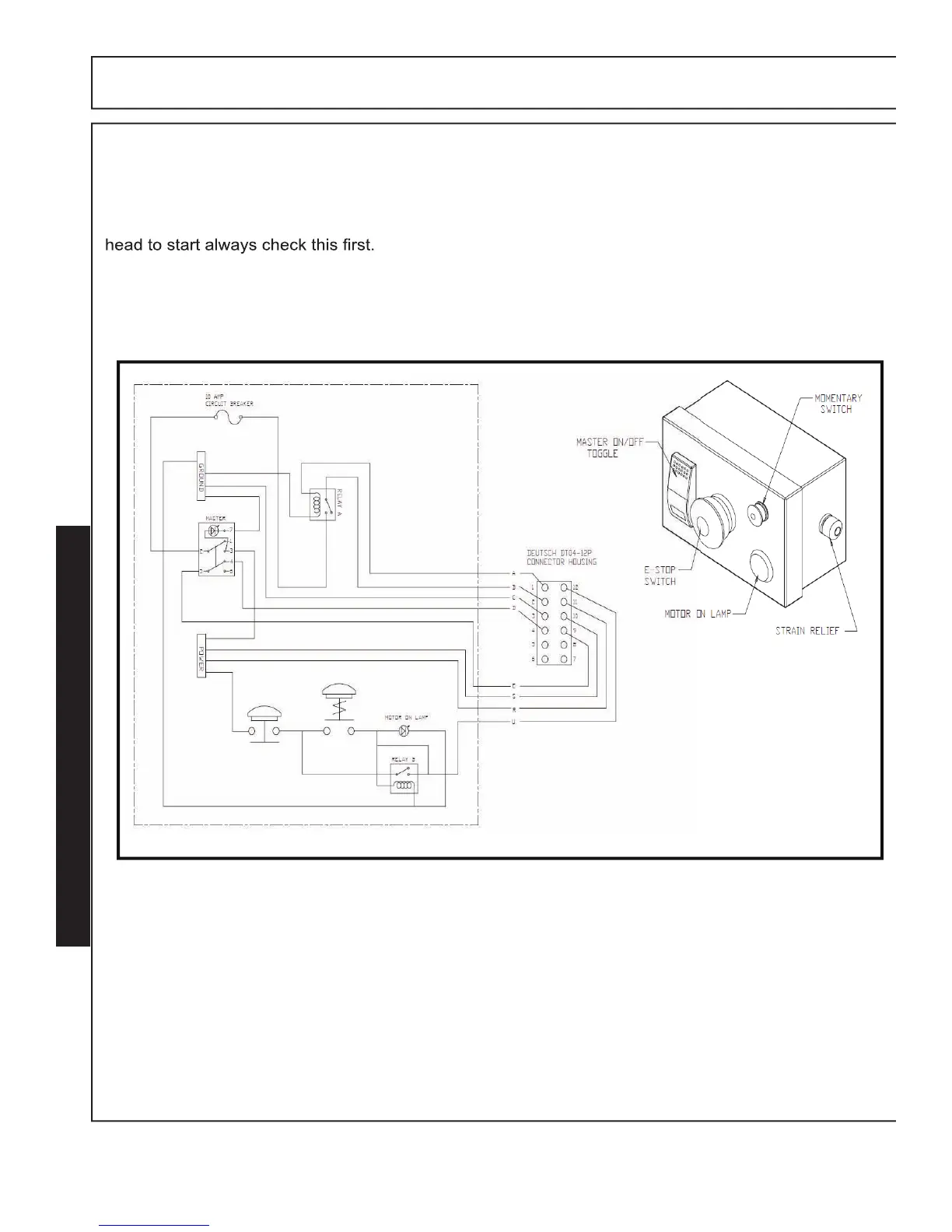

Emergency Stop (E-Stop) Switch
The emergency stop switch, also referred to as the E-Stop Switch is to stop the head motor from turning.
It is designed to stop the blades from rotating in 6 second from time switch is activated. The E-Stop
switch will not allow the head to start when activated the switch is engaged, if you are unable to get
Some parts may not be available as replacement parts for this switch, available as an assembly only.
The emergency stop switch is mounted in the arm rest, if it is not mounted in arm rest it must be
mounted where operator can have access to it immediately if needed.
