Cylinder Control Systems
40-A. Bucher L.8S Manual Control/Cable
Remote Cable Operation And Installation
Remote operation of the boom movement control valve can be achieved with the use of cables and
remote actuator handles. The remote operation system is standard equipment on cab tractor units and
can be installed on ROPS tractors as well. Four cable lengths are available and should be ordered
based on the length required to reach from the valve to the Operator’s location with out binding or
kinking. Cable lengths are limited to 48, 60, 72 and 102 inches.
To install the cables to the valve, refer to the controller installation instructions in this manual.

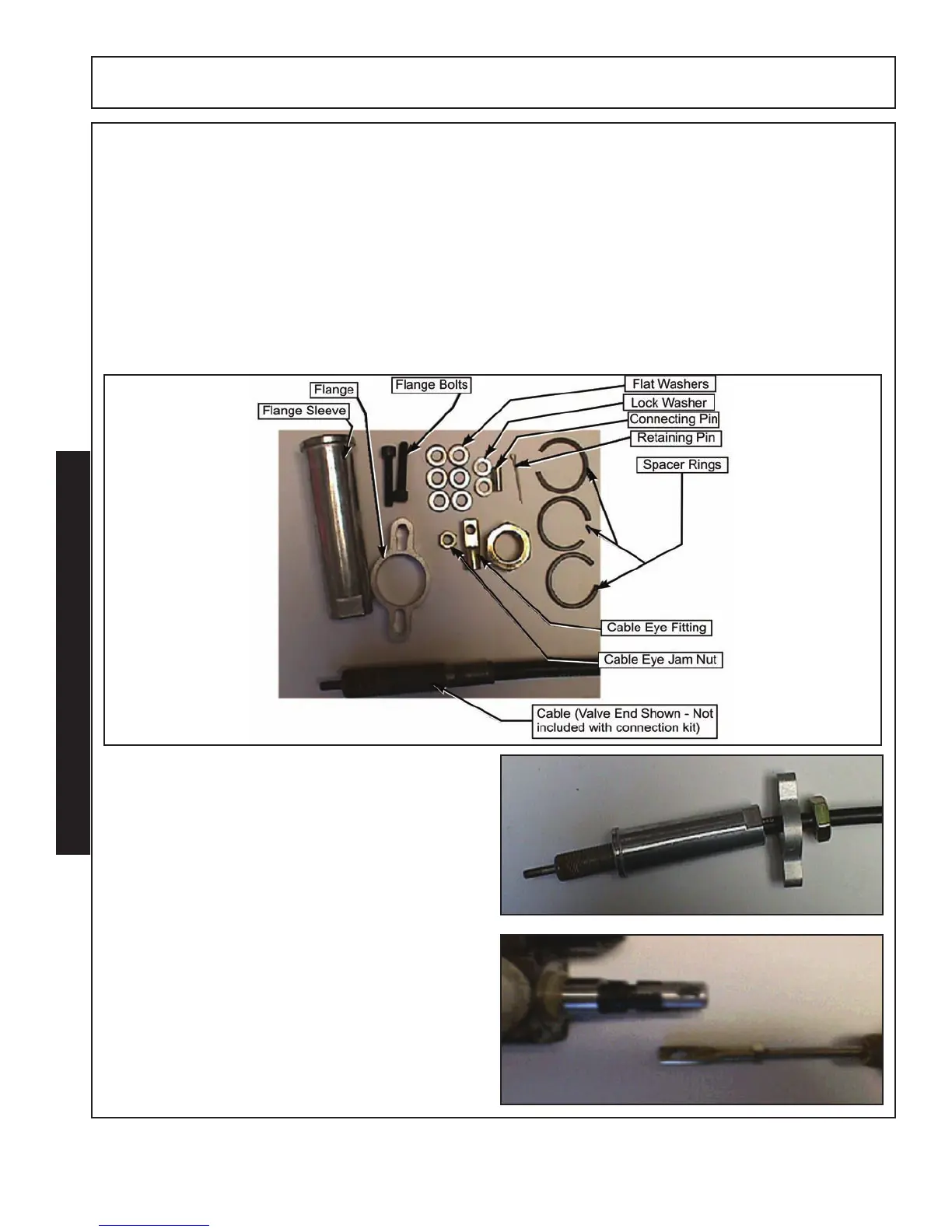

Turn the cable eye Jam nut on the threaded cable
end until it bottoms. Thread the Cable Eye onto
the cable end until it bottoms on the cable. Turn
the eye to align with the spool end and secure the
jam nut against the cable eye.
