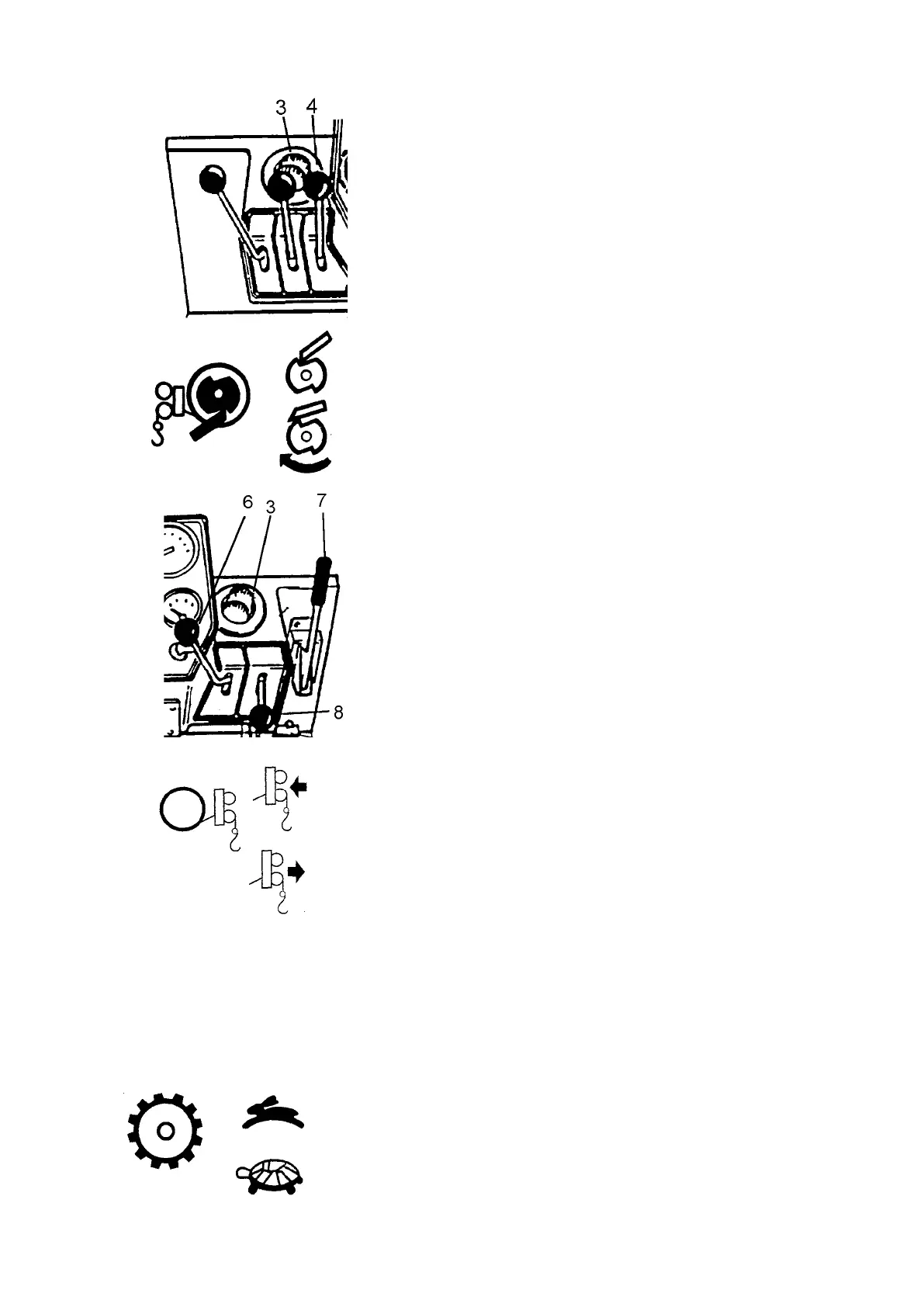

3 Front air vents
The direction of the incoming air is controlled
with the air vents. The air is directed towards the
front windscreen to provide a defroster action.
4 Winch lock
The winch lock prevents the wire rope from run-
ning out. It is operated with a lever to the left on
the dashboard. The winch lock is released when
the lever is in its upper position. Release the
winch lock and draw out the wire rope.
N.B. Wear protective gloves!
N.B. Never drive backwards with the drive lever
while using the winch! This may damage the ge-
arbox.
6 Winch
The winch is operated with a lever to the right
on the dashboard. When the lever is in the up-
per position, the gear in neutral, the trailer drive
disengaged, the drive lever forwards and the ac-
celerator pedal is pushed, the wire rope is wound
up on the drum
N.B. Never drive backwards with the drive lever
while using the winch! This will cause the wire
rope to be wound up in the wrong direction on the
winch drum.
7 Parking brake
This lever actuates a mechanical brake yoke.
When the lever is moved backwards, the machine
is braked. The lock is released with the button at
the end of the lever.
8
Gear shift lever
Two gears can be selected with the lever. If the
lever is moved upwards, the low gear is engaged,
while if the lever is moved downwards, the high
gear is engaged. When the lever stands in the
middle, the gearbox is in neutral.
Disengaged
Engaged
High gear
Low gear
Locked
