9

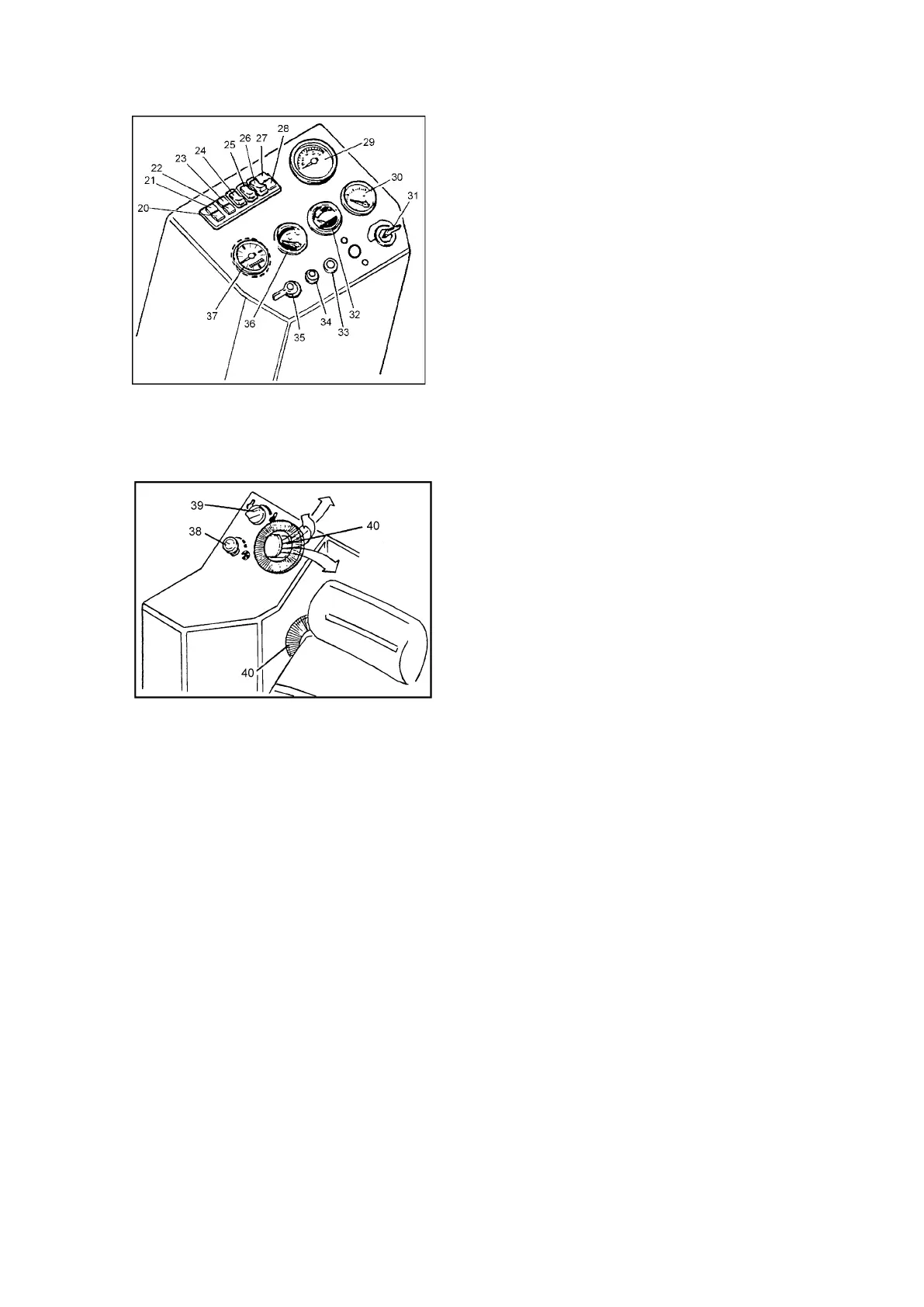

5 Front dashboard
20 Warning light for low hydraulic oil level
21 Warning light for differential lock engaged
22 Indicator for main beams
23 Glow plug indicator
24 Switch with indicator for main-dipped beams
25 Switch with indicator for working lights, side
26 Switch with indicator for working lights, rear
27 Warning light for low oil pressure in diesel engine
28 Charging indicator
29 Tachometer
30 Engine temperature gauge
31 Ignition switch
32 Hydraulic oil temperature gauge
33 Pushbutton for windscreen washer
34 Pushbutton for horn
35 Direction indicator
36 Fuel gauge
37 Running-time meter
16 Rear dashboard
38 Ventilation blower control
39 Cab heating control
40 Air vents
