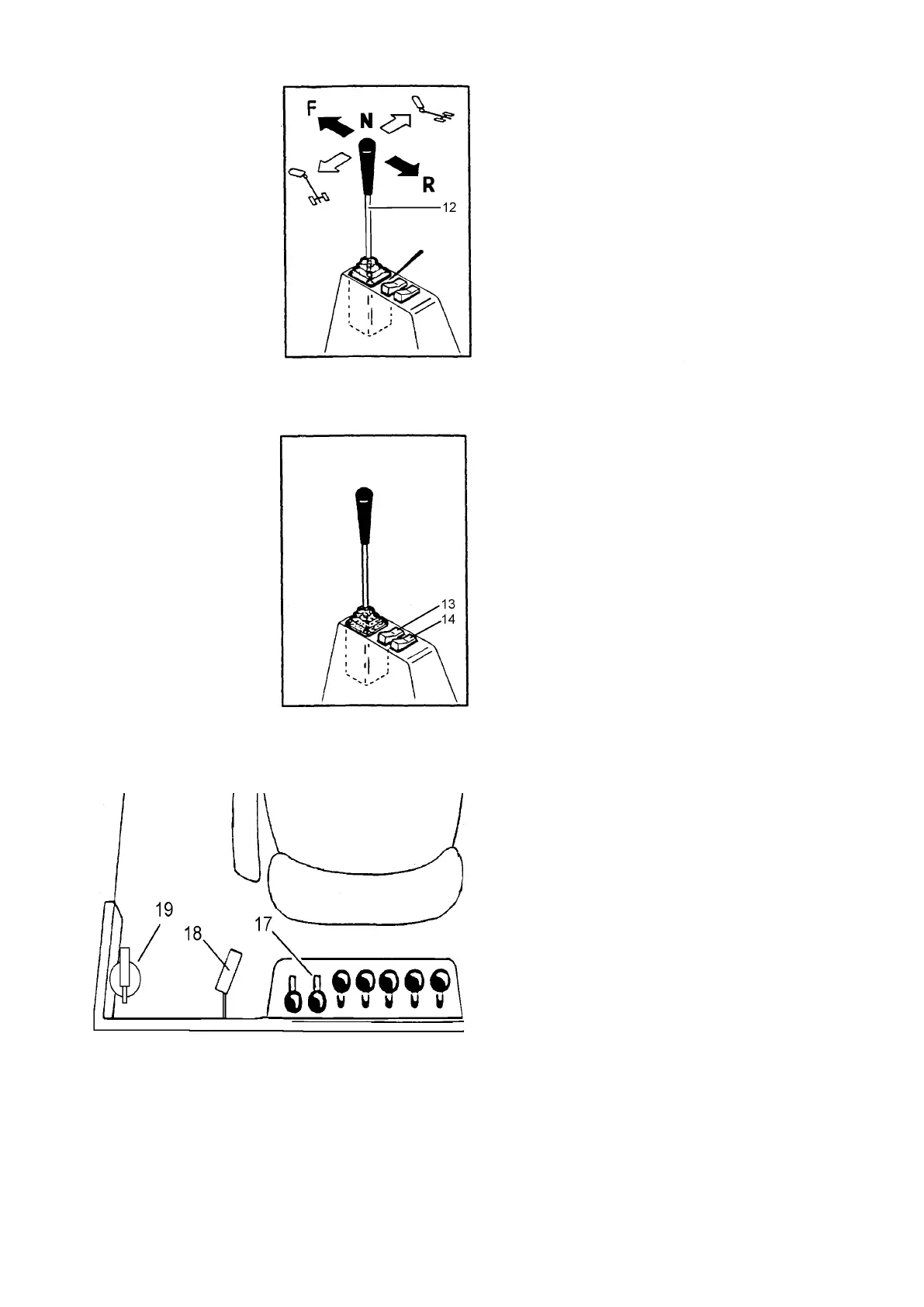

13 Drive lever
The driving direction and steering are controlled
with the drive lever.
When the drive lever is moved forwards, the
machine goes forwards.
When the drive lever is moved backwards, the
machine goes backwards.
When the drive lever is moved to the right, the
machine turns to the right.
When the drive lever is moved to the left, the
machine turns to the left.
The steering does not automatically return to
‘straight forwards’ but must be moved back with
the drive lever.
The drive lever can be locked in the neutral posi-
tion with the lock.
14 Trailer drive
The trailer drive is engaged and disengaged with
the switch. The indicator shines when the trailer
drive is engaged.
15 Trailer brake
The trailer brake is applied and released with the
switch. The indicator shines when the trailer brake
has been applied. When the oil pressure drops
below 10 bar, the trailer brake is automatically
applied.
N.B. The trailer brake is a parking brake. Always
release the trailer brake when driving the machi-
ne; the brake may otherwise be damaged!
17 Grab-loader controls
See separate instruction manual.
18 Accelerator pedal, rear
The engine speed is controlled with the accelerator
pedal during operation of the grab-loader.
19 Fire extinguisher
The re extinguisher is a 2 kg powder extinguis-
her. See the extinguisher instructions regarding its
use.
Regularly check that the extinguisher’s pressure
gauge eedle stands in the green eld.
When the hydraulic oil level drops to the mini-
mum level, the warning light shines.
Lock
