12

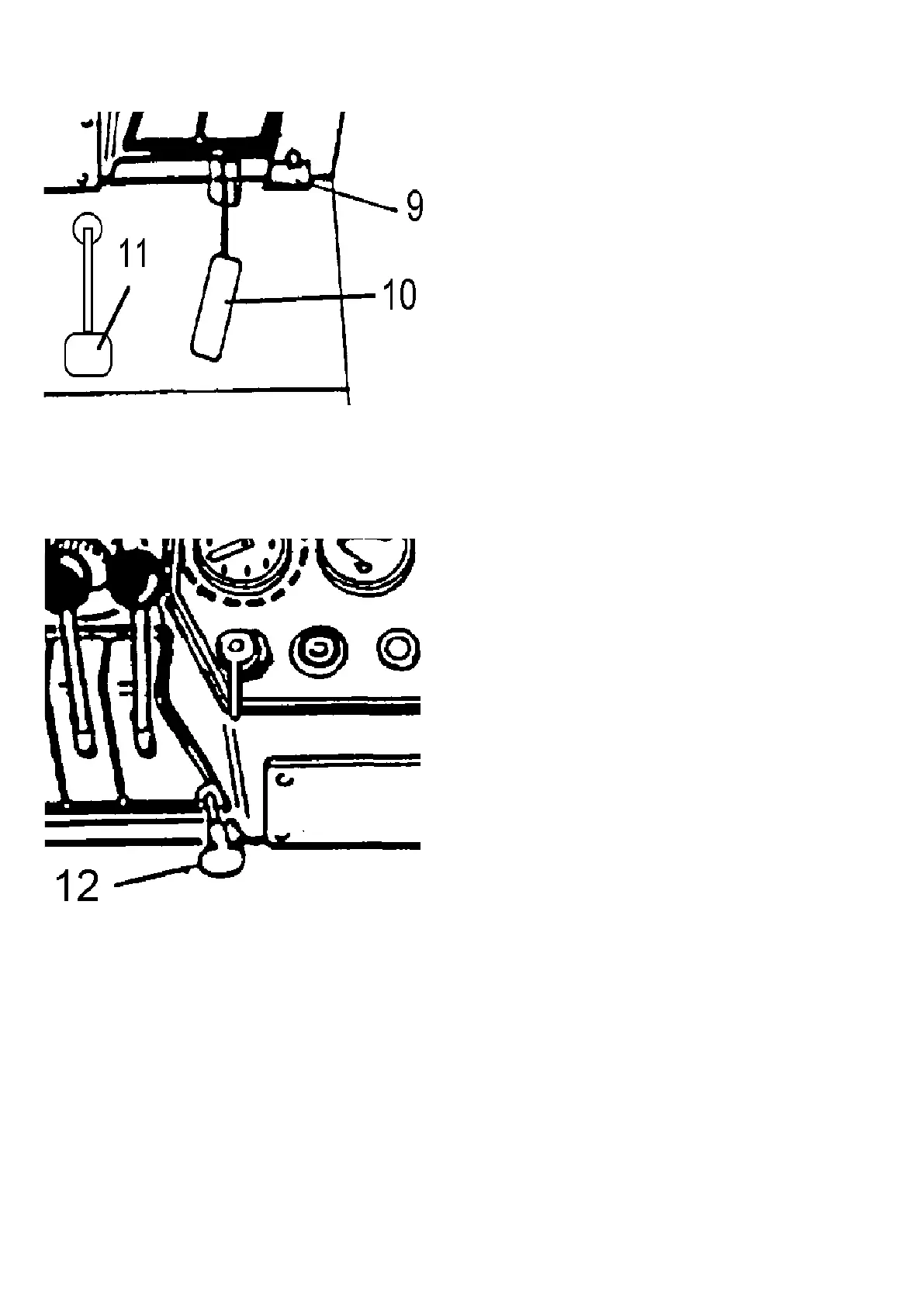

9 Main switch
All the power supply is disconnected with the
main switch.
N.B. Never open the main switch when the engine
is running!
10 Accelerator pedal, front
The engine speed is controlled with the accelerator
pedal during driving.
11 Brake pedal
The machine is braked with the brake pedal.
12 Hand throttle
(optional equipment)
The engine speed can be set with the hand throttle.
Rough setting: press the button and withdraw it.
Fine setting: turn the knob.
