33
Trailer adjustments
Alternative location of stanchions
The stanchions may be set up in three different
places. Take out the stanchion from its sleeve and
move it to the desired position.
N.B. The centre of gravity of the load shall always
lie just above or slightly in front of the bogie cen-
tre!
N.B. The stanchions must not be lengthened!
Moving of central bench
Slacken the nuts (4) of the tensioning bolts. Loo-
sen the clamps holding the hydraulic hoses by
the central bench. Disengage the trailer drive and
apply the trailer brake. Then carefully drive the
trailer forwards or backwards to the desired posi-
tion. Tighten the nuts and clamps.
N.B. Check that the hydraulic hoses do not get
caught when moving the bench!
Moving of rear bench
Take out the bolt passing through the central tube.
Pull the bench to the desired position and insert
the bolt into a new hole.
Moving of front bench
Slacken the nuts (4) of the tensioning bolts. Pull
the bench to the desired position. Tighten the nuts.
Moving of load protection
Slacken the nuts (4) of the tensioning bolts. Pull
the load protection to the desired position. Tighten
the nuts.
Anchorage eyes
Eyes for securing the load are provided by the
stanchion sleeves.
TOWING
Towing of Terri is possible only over a limited
distance, since the motors of the trailer drive do
not receive any oil and may therefore be damaged.
Prior to towing release the multiple-disc brake. If
the trailer is loaded, it must be unloaded. Remove
the cover at the front edge of the trailer (16 bolts).

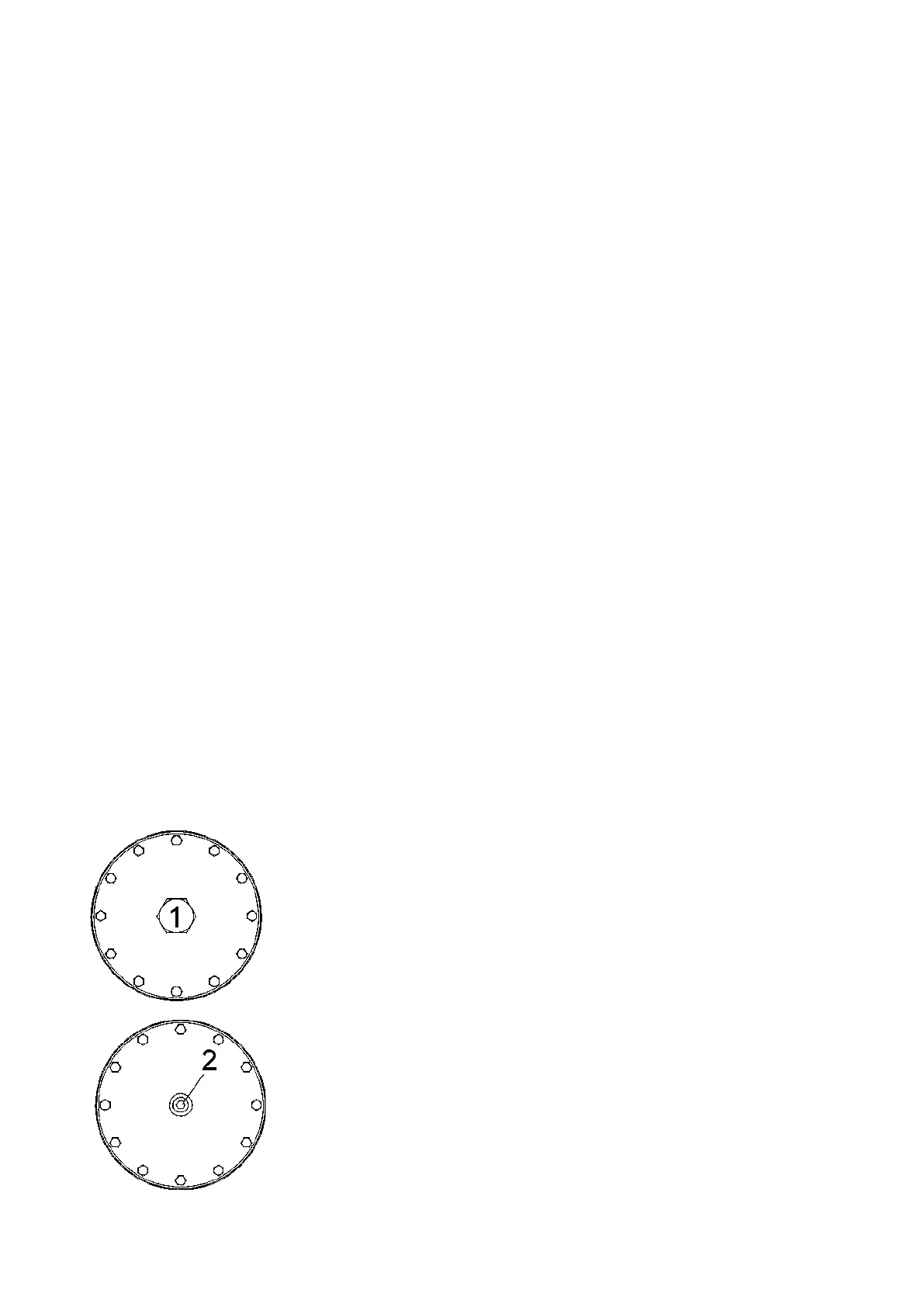

Remove the plug (1). Using the 8 mm socket span-
ner (included in the tool bag) screw (clockwise)
the release plug to the bottom.
Trailer hydraulic motor
viewed from behind
