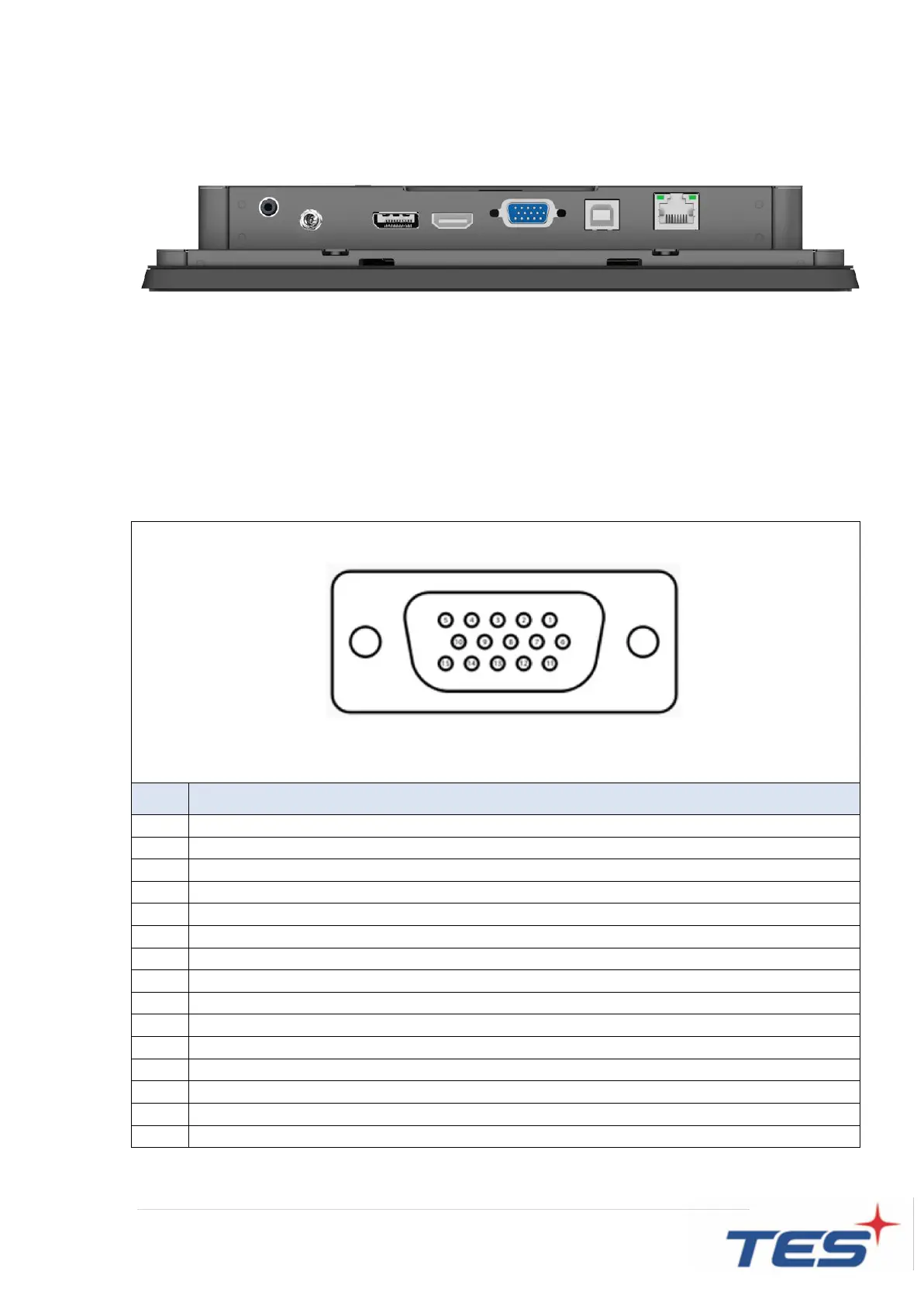

1.5 Interface Connectors
1.5.1 Power Connector
The AC/DC converter shall have an IEC320 type male power receptacle for
connection to AC mains power. The power cord, exact type to be supplied in the
appropriate Option Kit, shall be length of 1.8  0.05 meters, and PC99 compliant.
1.5.2 Video Signal Connector
The video signal input via D-type 15-pin female connector.
Connector Pin Assignment:
Pin
Signal
1
Red video signal input
2
Green video signal input
3
Blue video signal input
4
NC
5
DDC ground for the VESA DDC2B function
6
Analog signal ground for the red video
7
Analog signal ground for the Green video
8
Analog signal ground for the blue video
9
+ 5V: Input from host system for the VESA DDC2B function
10
Signal ground
11
NC
12
SDA signal input for the VESA DDC2B function
13
Horizontal signal input from host system
14
Vertical signal input from host system
15
SCL signal input for the VESA DDC2B function
