Tescom NEOLINE PLUS 1102ST - LCD Display Wordings Index; UPS Setting

29
USER MANUAL
NEOLINE PLUS � 1/1 � 1-3 kVA � ONLINE UPS
29

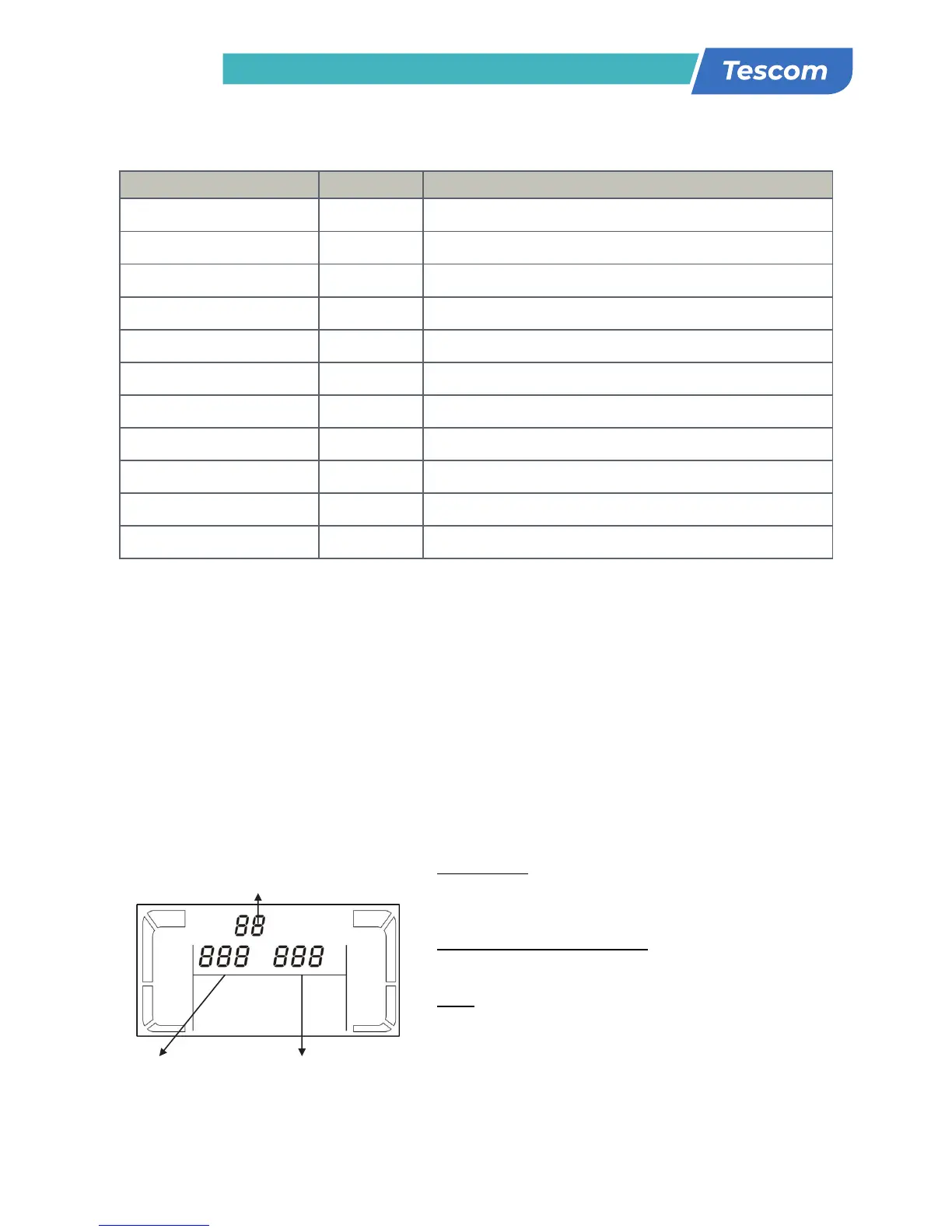

3-4. LCD display wordings index
Συντομογραφία οθόνης Περιεχόμενο Ορισμός
ENA
ENA
Enable
DIS
dis
Disable
ESC
ESC
Escape
HLS
HLS
High loss
LLS
LLS
Low loss
BAT
BAT
Battery
CF
CF
Converter
TP
TP
Temperature
CH
CH
Charger
FU
FU
Unstable Bypass frequency
EE
EE
EEPROM fault
3-5. UPS setting
There are three parameters to set up the UPS:
Parameter 1:
It’s for program alternatives. There are 8 programs to set
up. Refer to below table.
Parameter 2 and parameter 3:
Are the setting options or values for each program.
Note:
Please choose “Up” or “Down” button to change programs
or parameters.
Parameter 1
Parameter 2 Parameter 3
EN
14
3-3. Audible Alarm
Battery Mode
Sounding every 4 seconds
Low Battery
Sounding every second
Overload
Sounding twice every second
Fault
Continuously sounding
Bypass Mode
Sounding every 10 seconds
3-4
. LCD display wordings index
Abbreviation
Display content
Meaning
ENA
Enable
DIS
Disable
ESC
Escape
HLS
High loss
LLS
Low loss
BAT
Battery
CF
Converter
TP
Temperature
CH
Charger
FU
Bypass frequency unstable
EE
EEPROM error
3-5
. UPS Setting
There are three parameters to set up the
UPS.
Parameter 1: It’s for program
alternatives. Refer to below table.
Parameter 2 and parameter 3 are the
setting options or values for each
program.
 01: Output voltage setting
Interface
Setting
Parameter 3: Output voltage
For 208/220/230/240 VAC models, you may choose the
following output voltage:
208: presents output voltage is 208Vac
220: presents output voltage is 220Vac
Parameter 1
Parameter 2
Parameter 3
