6
Operating instructions
• Connection of probes
• Power supply

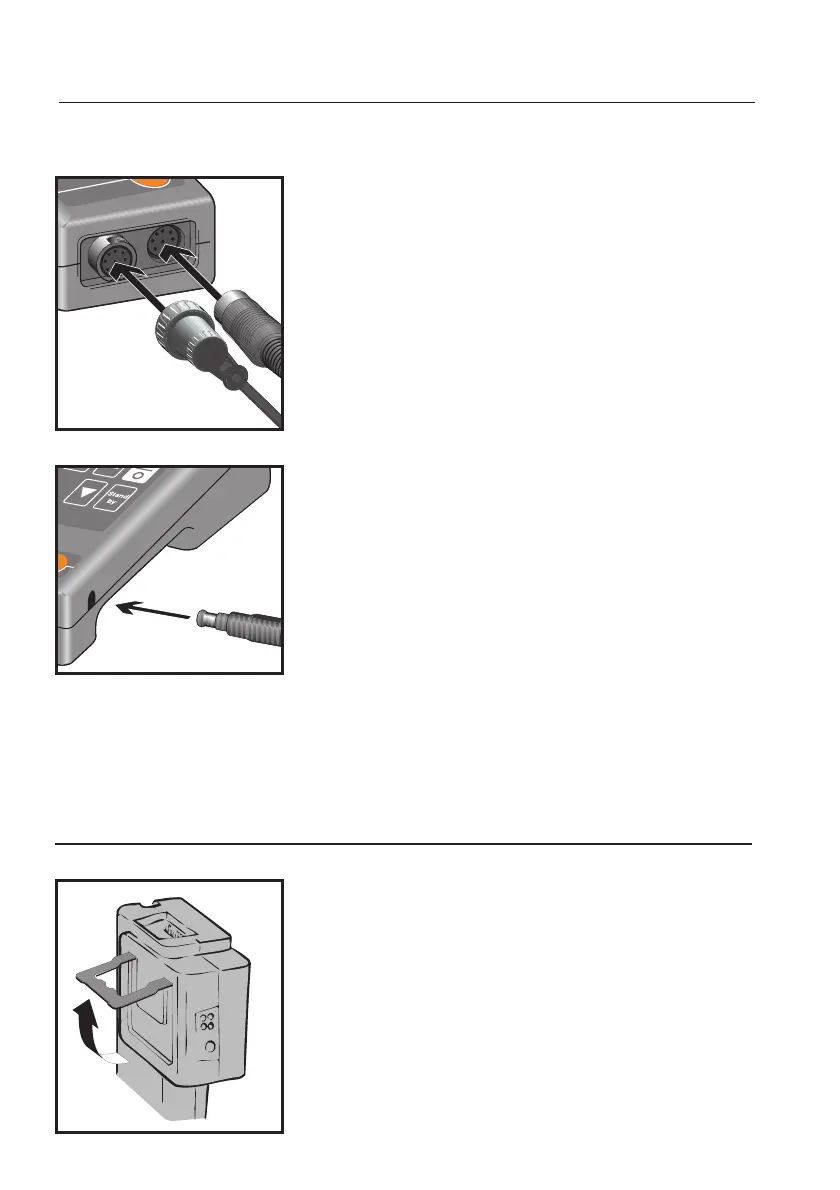

Connection of probes
mechanical rpm sensor/trigger lead
Refer to the connection diagram and connect the
9-pin connector plug accordingly.
Flashlight transmitter
Take note of the connection diagram, attach the
connection plug and lock the connection by
turning the knurled ring.
Mains connection
The socket for the plug-in mains unit (included in
the delivery) is located at the side of the measure-
ment instrument.
Clamp to raise/hang up the instrument
(located on rear of instrument)
By simply folding out the clamp you can raise the
measurement instrument.
To hang up the measuring instrument you have to
turn the clamp by 180 °. Take out the folded out
clamp by pressing the clamp ends together, turn
and insert into the guide.
