• Concept E 450 Digital 11
Connecting satellite
speakers
CA UTION
The speaker cables may pose a tripping
hazard.
– Lay the cables so that no one can get
caught in them.
NOTICE
Make sure the polarity is correct!
– Connect the like coloured terminals. Oth-
erwise, the sound quality will suffer.
The strands of the speaker cables are
marked with different colours or shapes.

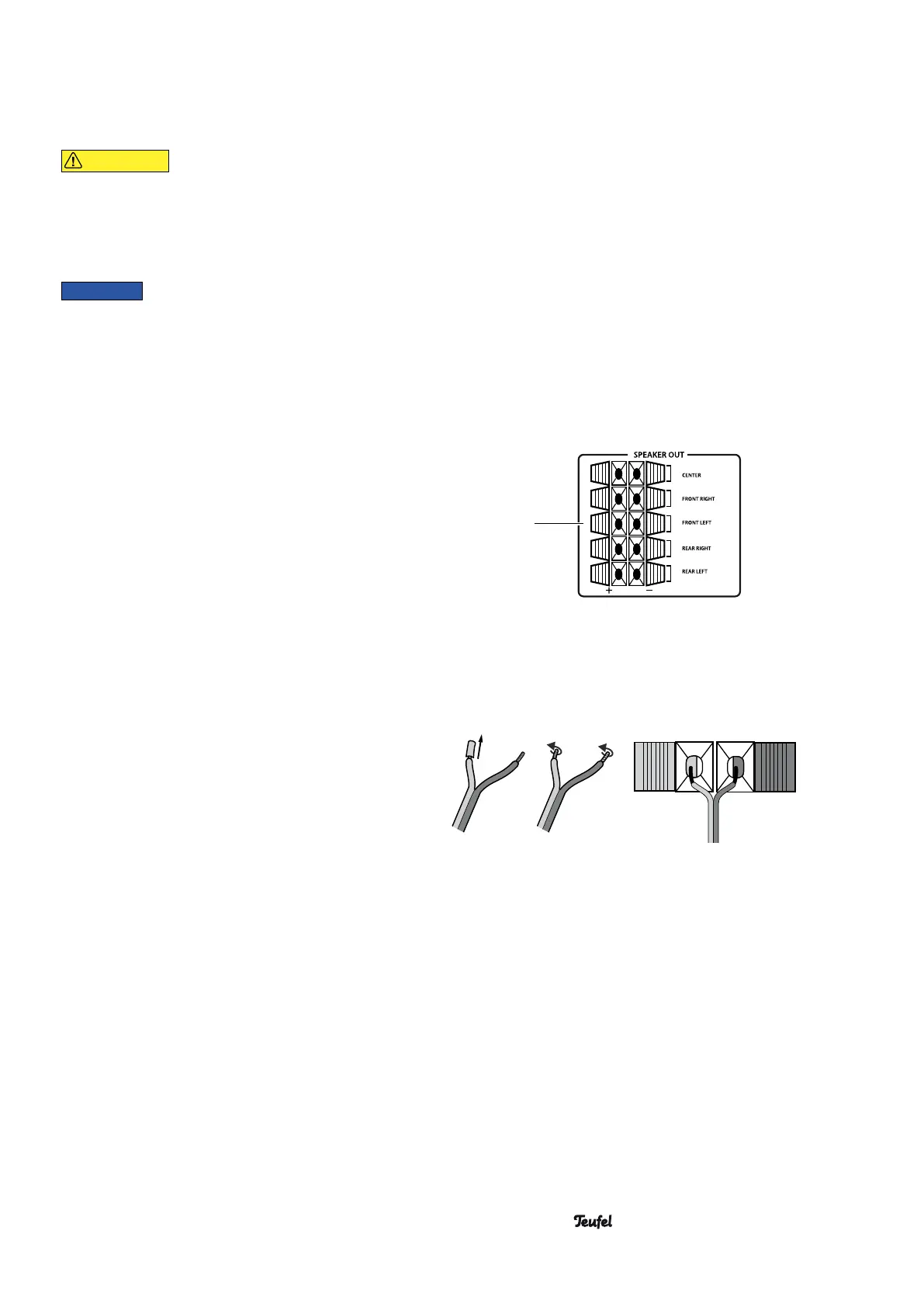

1. The connector terminals SPEAKER OUT (28) for the
satellite speakers are located on the back side of
the Concept E 450 Digital.
Run the speaker cables from the subwoofer to each
satellite speaker.
Small piece of advice: Label the cables on the
subwoofer end – this facilitates setup and tear-
down of the system.
2. Split the speaker cables down to approx. 30 mm on
both ends and strip approx. 10 mm of insulation off
of each cord.
3. Twist the stripped single wire ends together so that
no wire protrudes. Tin coating is not necessary.
4. Push down the connector terminal levers and run
the stripped cable ends into the corresponding
holes. When releasing the lever, the cable ends will
be locked.
Connect all cables to the subwoofer in this way.
Ensure that no part of the insulation is clamped in
place.
5. Connect the other ends of the speaker cables to
the satellite speakers. The instruction manual of
the speakers should contain notes on this.
Connection to the grid
• Insert the mains plug in an easily accessible mains
socket.
• Plug the mains plugs of your external players back
into the mains socket.
