A
B
11 • CoreStation

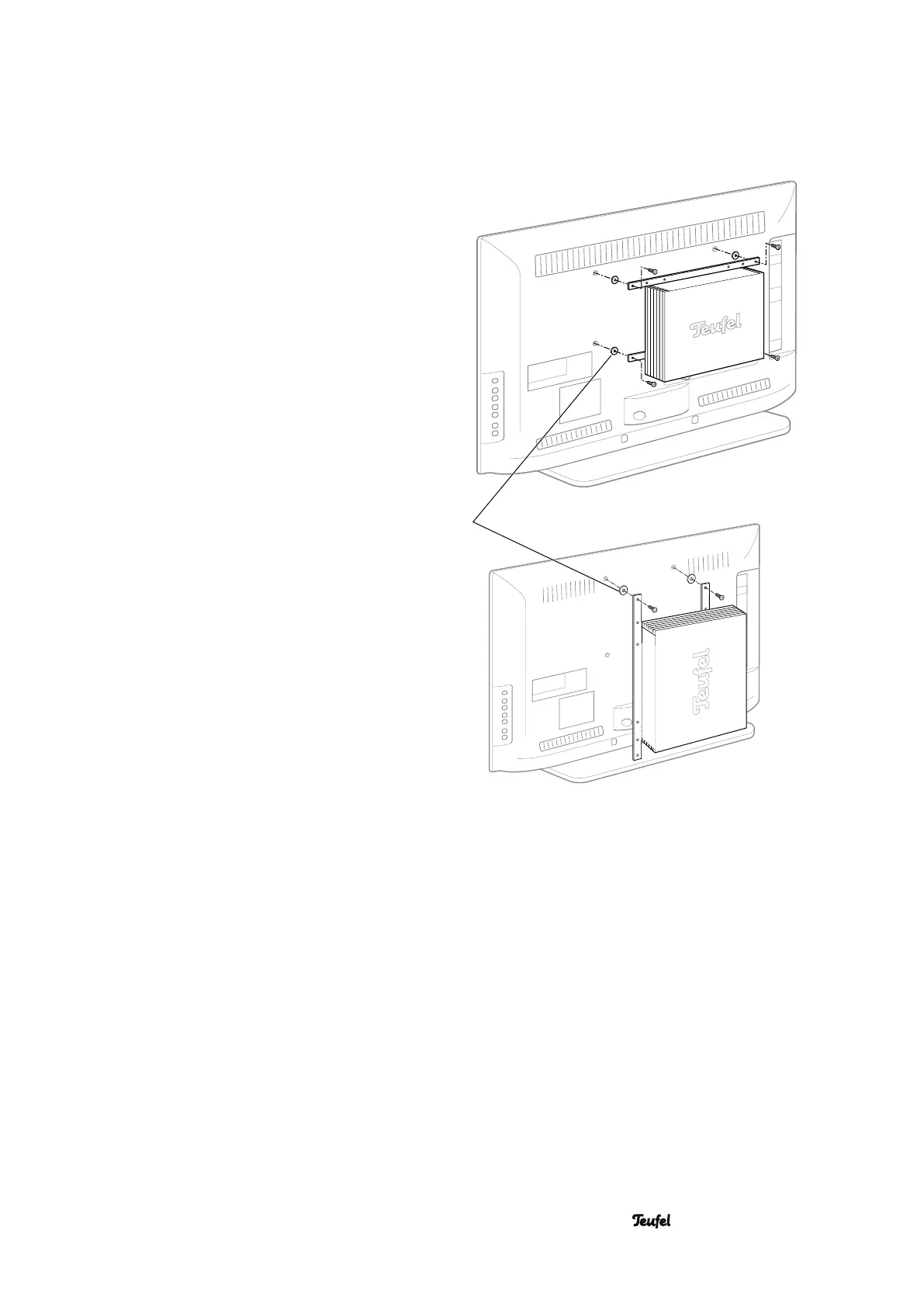

2. Mount the CoreStation depending on how the
top two VESA mounting points on your TV set are
spaced:
Spaced at 400 mm:
Mount the CoreStation in a lateral position (with the
connections facing down — see Fig. A).
Spaced at 200 mm:
Mount the CoreStation in an upright position (with
the connections pointing to the left or right — see
Fig. B)
3. If necessary, place the washers under the
mounting brackets as a spacer.
4. Begin by only screwing the top of the CoreStation
into place.
5. If the bottom bore holes of the mounting brackets
match up with the bottom VESA fasteners, screw
the CoreStation into place on the bottom as well.
Otherwise, it is sufficient if the CoreStation is se-
cured along the top with two screws.
