4 x Satellite speakers CUB 2 FR 15
1 x Center speaker CUB 2 C 15
6× Rubber damping mats
Check that the delivery is complete and nothing is
damaged. If you find damage, do not operate the
device; instead contact our service department.
Product Contents
Setting up the Speakers
Comprehensive instructions for correct in-
stallation can be found on our website at
www.teufelaudio.com
.
Specially designed speaker stands can be ordered from
our webshop.
• Select a stable, level base or a suitable wall.
• Make sure that the environment is clean and free from
dust.
• Select a location away from heat sources and direct
sunlight.
• Do not place any heavy objects on the cord or the
speaker.
Setup

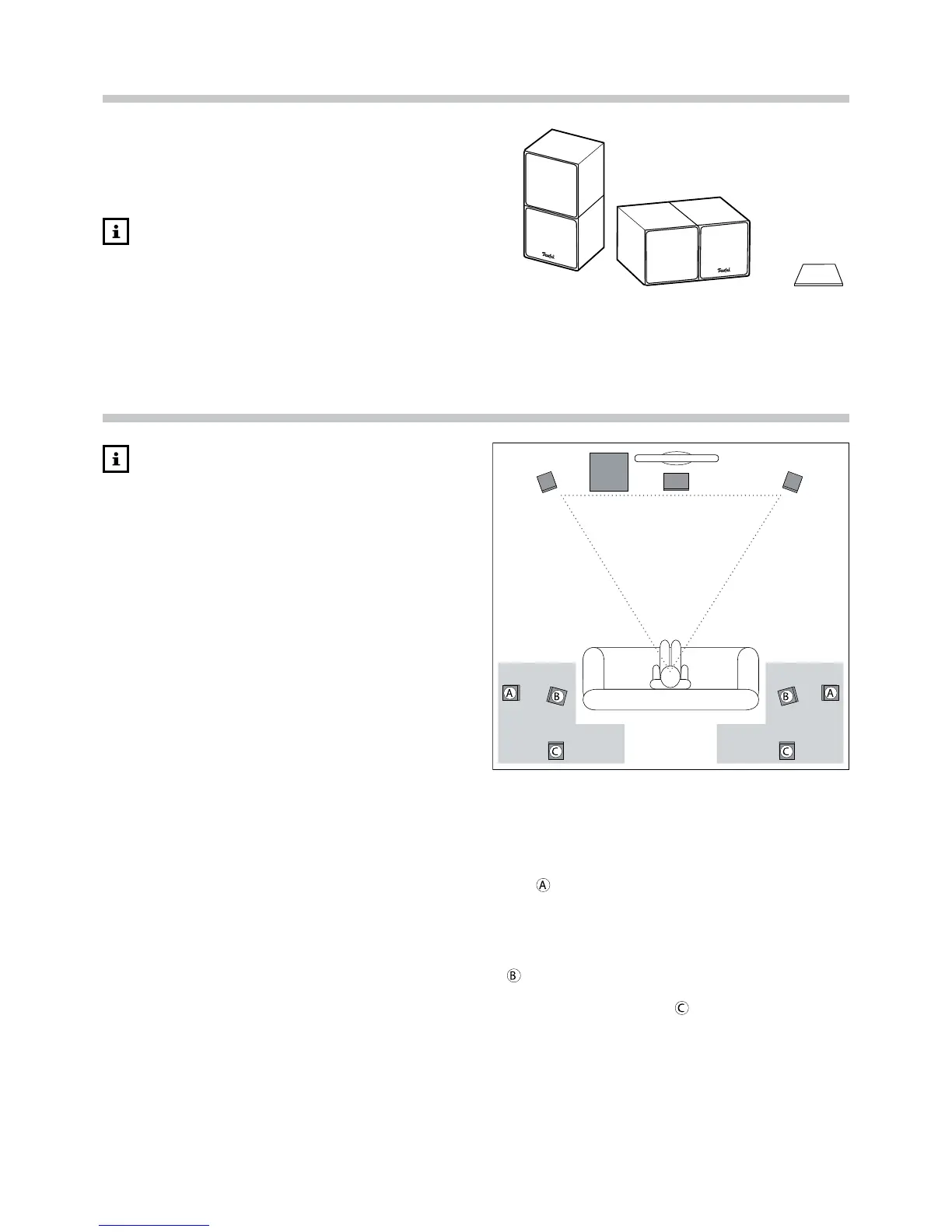

The following data concern an “ideal home cinema”, in
which the viewer or listener sits in a central position at a
sufficient distance in front of the video screen or screen
(see the following graphic) and no objects (tables or the
like) are located in between. Unfortunately, the room,
furnishings or other circumstances do not always allow
for optimum arrangement.
Modern software in the players offers diverse possibili-
ties to electronically compensate for possible compromis-
es in the placement. The following general rule applies:
You can always experiment on what works best in your
listening room in terms of sound and appearance based
on our recommendations. Let your ears (and eyes) be the
judge!
Mounting the rubber damping mats
• Affix a rubber damping mat
to the bottom of the
speakers CUB 2 FR 15 and 2 rubber damping mats to
the bottom of the center speaker CUB 2 C 15.
Front
CUB 2 FR 15
REAR
CUB 2 FR 15
Front
CUB 2 FR 15
Rear
CUB 2 FR 15
Center
CUB 2 C 15
Subwoofer
Stereo
triangle
Rear speakers
• The rear speakers are set up or hung next to or behind
the listener at a height of 1.20 m to 2.10 m.
• The ideal position is offset by approx. 20 degrees from
the parallel position to the listener on the left and right
side
. It is generally recommended that the distance
of the rear speakers to the hearer’s place exceeds 1 m.
However, if you (need to) sit closer please ensure that
the front side of the speaker is not directly facing you.
Rather, the speaker must be angled towards the wall
. Alternatively, you can create a greater distance by
placing the speakers higher than 1.20 m (e.g. also on
the ceiling) or further away .
Centre Speaker
• Place the centre speaker in a central position under or
above the video screen or screen.
