CAUTION
Risk of injury/damage!
– Lay the speaker cable so that it does not pose
a tripping hazard.

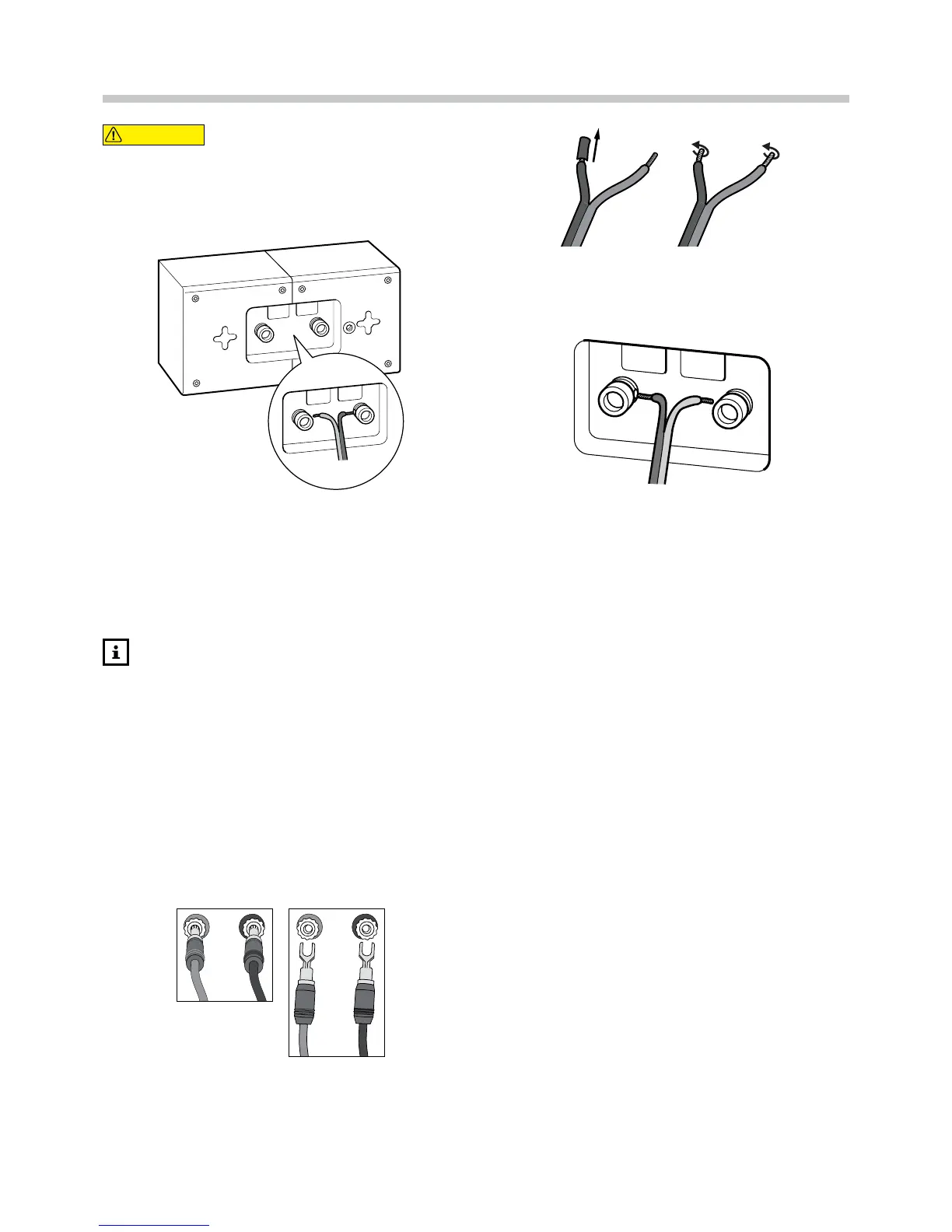

• On the back of the speakers are the connection
terminals, with 2 terminal clips. You can connect the
speaker cables here directly or with banana plugs or
spade terminals from our catalogue. The terminals are
marked in red (+) and black(-).
Make sure the polarity is correct!
Connect the like-coloured terminals together, other-
wise the sound quality will suffer. The speaker terminals
of your amplifier should be similarly marked. The individ-
ual speaker cables are marked with different colours or
shapes.
1. Turn off your AV receiver/multi-channel active sub-
woofer.
2. Lay the speaker cables from your AV receiver/multi-
channel active subwoofer to each of the speakers.
If your speaker cables are not long enough, order more
high-quality double wire cables with marked strands on
our website in the “Accessories” area.
3. When you use speaker cables with banana plugs or
spade terminals from our catalogue, simply insert the
banana plug into the terminal with the
matching colour.
Spade terminals are pushed under the connector ter-
minals and then tightened.
Connecting the Speakers
4. If you use speaker wires without plugs, split the wire
down to approx. 30 mm on both ends and remove
approx. 10 mm of the insulation on each end. Twist the
wire so that no strands are protruding.
5. Turn the connector terminal counterclockwise until
loose. Run the stripped cable end into the now visible
hole. Close the terminal by turning it clockwise. The
cable has now been clamped in place.
6. Connect the other end of the speaker cables to your
AV receiver/multi-channel active subwoofer. You should
be able to find corresponding notes in the operating
instructions of your device.
7. Turn your AV receiver/multi-channel active subwoofer
back on.
Crossover frequency
• Don’t use the satellites as full-range speakers.
• It is recommended to set a separation frequency of
200 Hz on the AV receiver. Depending on the sound
preferences and spatial conditions you may however
also choose a value in the range from 150 to 250 Hz.
• Please be absolutely sure to adhere to the notes in the
operating instructions of your AV receiver.
