N
I
w
-..J
-
N
I
w
00
Step
Symptom

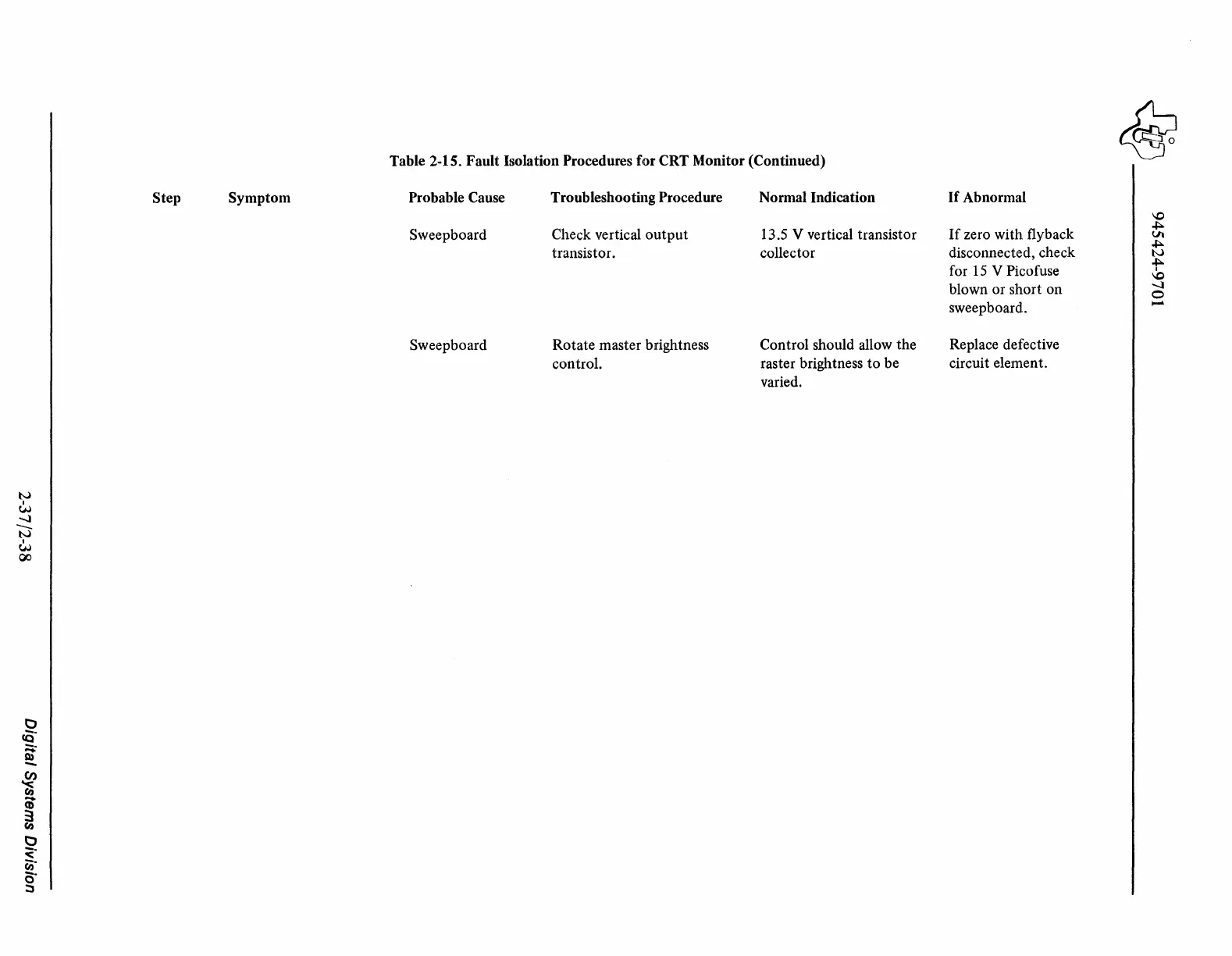

Table 2-15. Fault Isolation Procedures for CRT Monitor (Continued)
Probable Cause
Sweepboard
Sweepboard
Troubleshooting Procedure
Check vertical output
transistor.
Rotate master brightness
control.
Normal Indication
13
.5
V vertical transistor
collector
Control should allow the
raster brightness to be
varied.
If
Abnormal
If
zero with flyback
disconnected, check
for
15
V Picofuse
blown or short on
sweep board.
Replace defective
circuit element.
