Schematics, Assembly, Layout, and Bill of Materials (BOM)
www.ti.com
18
SLUUC57A–October 2019–Revised June 2020
Submit Documentation Feedback
Copyright © 2019–2020, Texas Instruments Incorporated
BQ79600-Q1 Evaluation Module

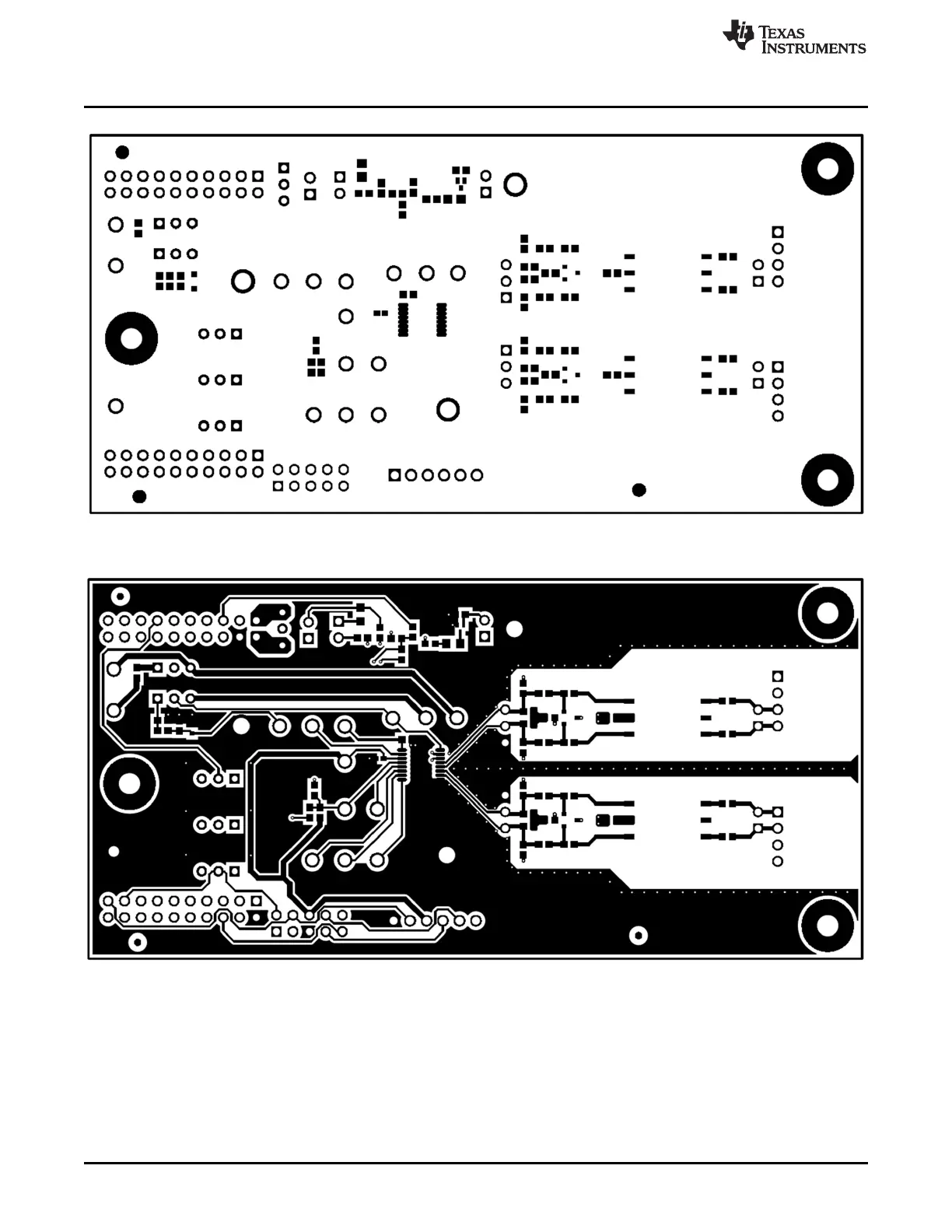

Figure 16. BQ79600EVM Top Solder
Figure 17. BQ79600EVM Top Layer
