Schematics, Assembly, Layout, and Bill of Materials (BOM)
19
SLUUC57A–October 2019–Revised June 2020
Submit Documentation Feedback
Copyright © 2019–2020, Texas Instruments Incorporated
BQ79600-Q1 Evaluation Module

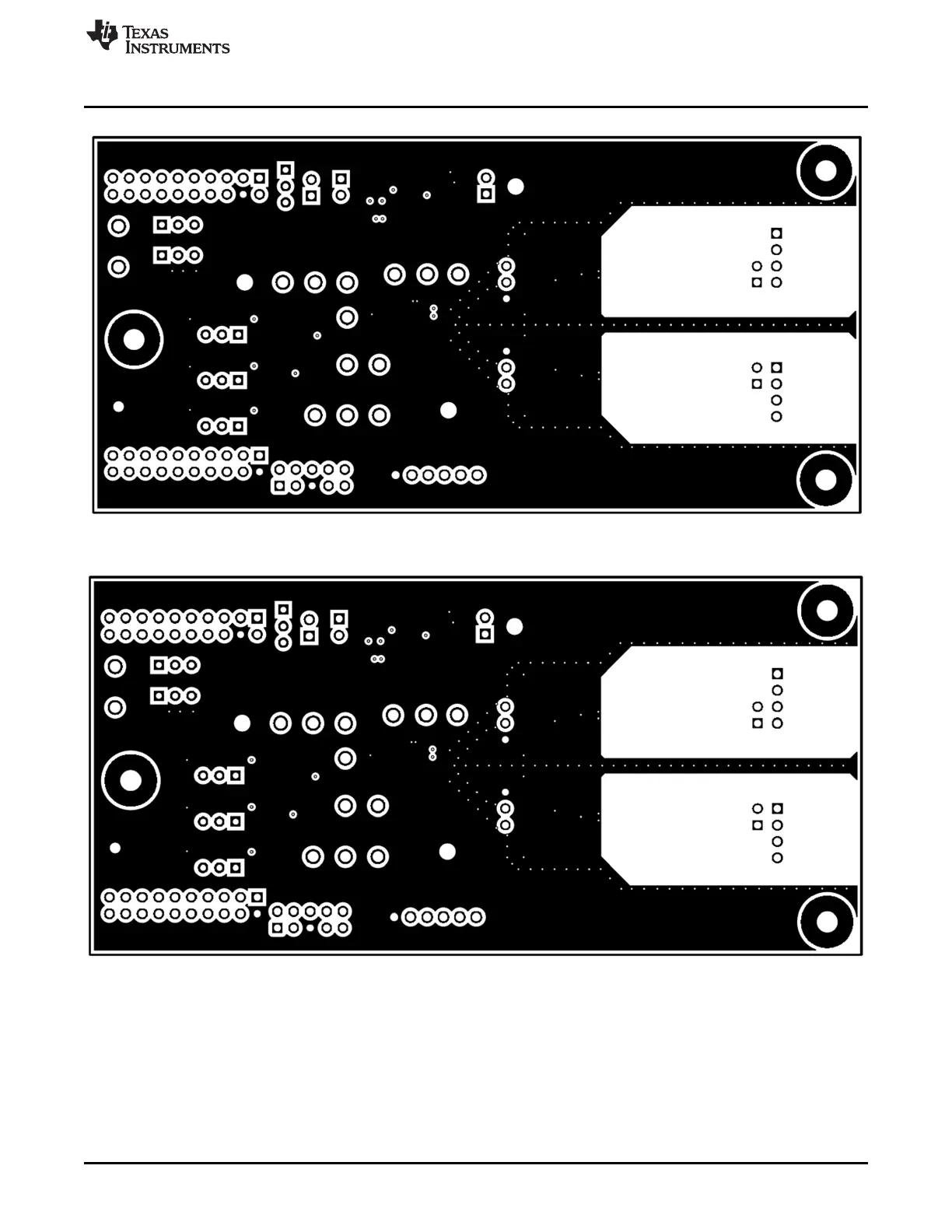

Figure 18. BQ79600EVM Internal Signal Layer 1 - GND Plane
Figure 19. BQ79600EVM Internal Signal Layer 2 - GND Plane
