4.4 LAUNCHXL-F280039C Board Dimensions

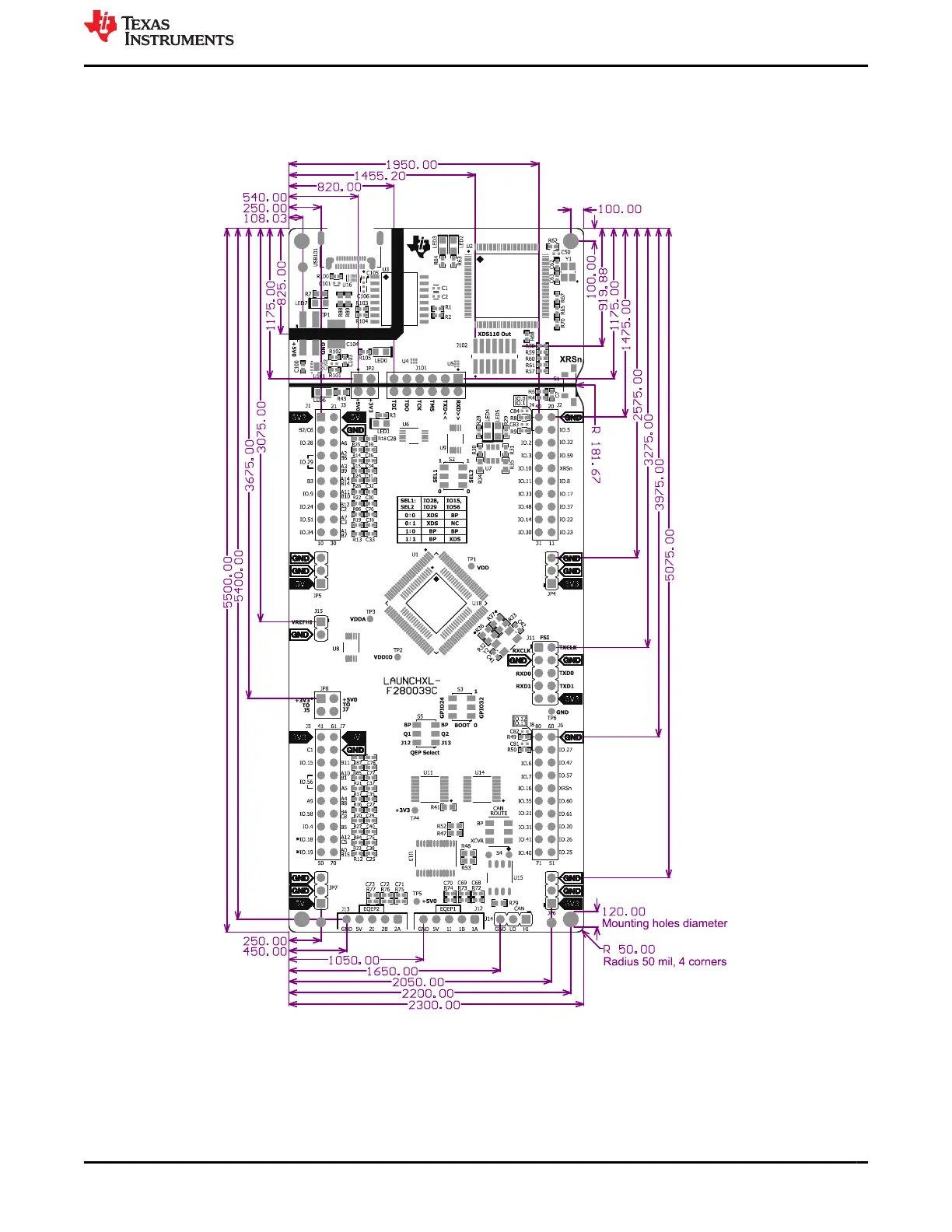

Figure 4-5 is a dimensional drawing of the F28003x LaunchPad that shows the location of selected features of
the board as well as the component locations.
Figure 4-5. F28003x LaunchPad Dimensions and Component Locations
www.ti.com Board Design
SPRUJ31 – APRIL 2022
Submit Document Feedback
C2000
™
F28003x Series LaunchPad
™
Development Kit 21
Copyright © 2022 Texas Instruments Incorporated
