4.2.2 GUI Operation
Setup, launch, and connect the GUI to the EVM per GUI Setup and Connection. Refer to the sections below for
a description on how to use each page of the GUI.
4.2.2.1 Homepage Tab
The GUI starts out on the homepage tab. To get back to this page from anywhere, just click the (Home) icon
on the menu on the left.
From the homepage, you can easily confirm successful GUI to EVM connection (see GUI to EVM Connection),
as well as access helpful resources through the buttons on the bottom, shown in Figure 4-9.

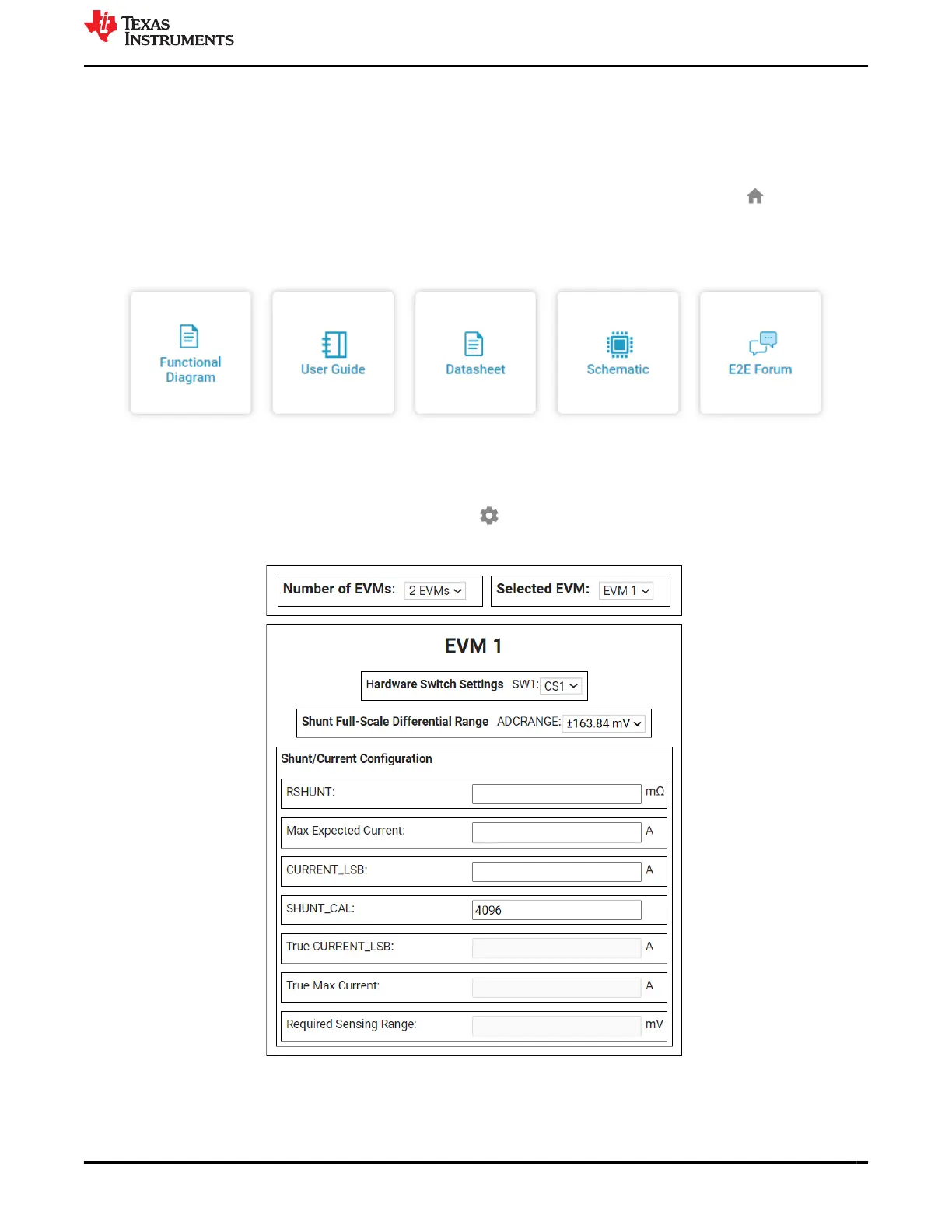

Figure 4-9. Home Tab Links
4.2.2.2 Configuration Tab
To do the initial setup for each connected EVM, click the (Configuration) icon on the menu on the left. An
example of the configuration tool is shown in Figure 4-10, which may change based on the device connected.
Figure 4-10. Configuration Tool
