Clock Outputs (DCLKout and SDCLKout)
31
SNAU145B–MAY 2013–Revised March 2018
Submit Documentation Feedback
Copyright © 2013–2018, Texas Instruments Incorporated
Typical Phase Noise Performance Plots

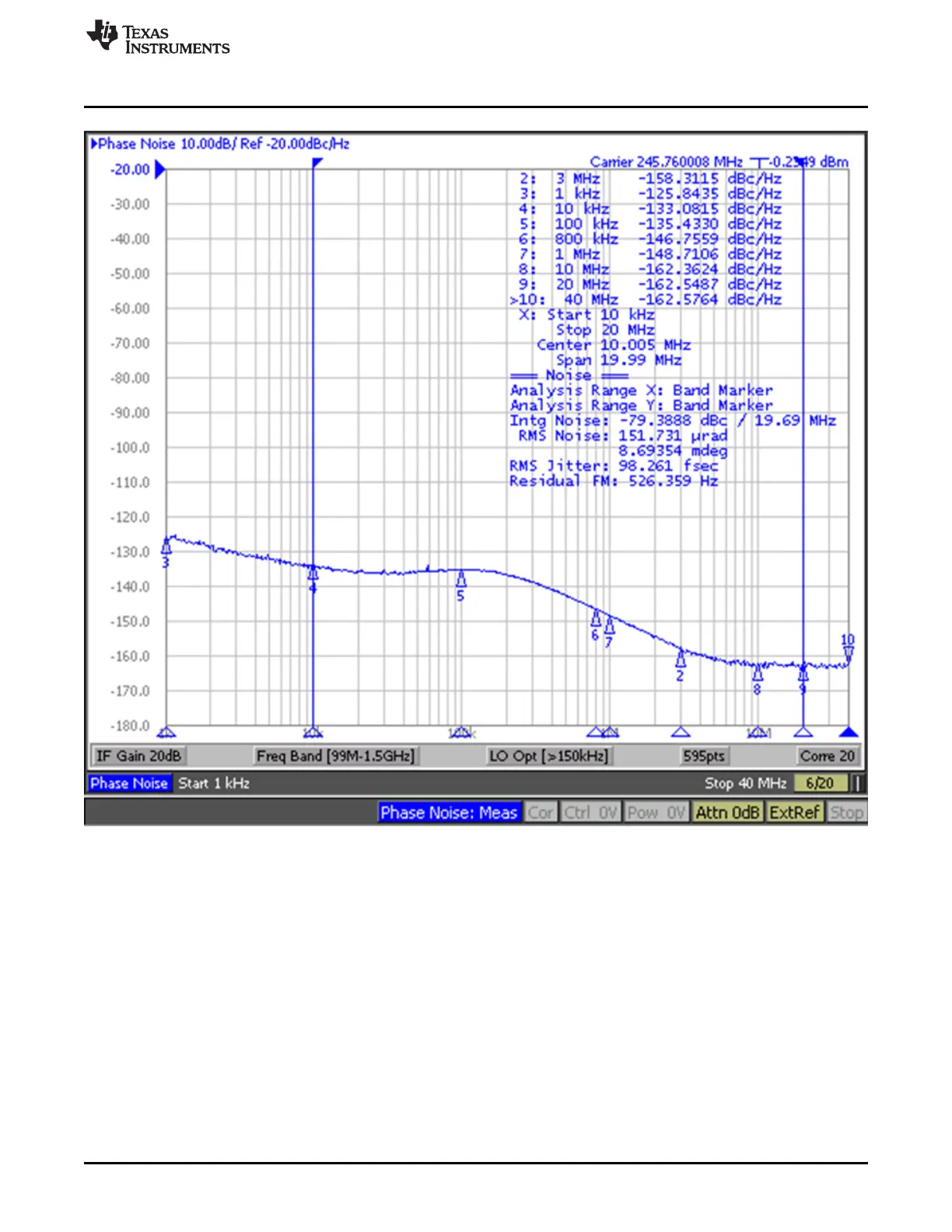

Figure 20. LMK04826 DCLKout2, VCO0, 245.76 MHz, Div8, LVPECL20 /w
240-Ω Emitter Resistor, DCLKoutX_MUX=Divider, IDL=1, ODL=0, Balun = Prodyn BIB-100G
