Texas Instruments LMK04826 - LMK04826 Dclkout2, VCO1, 245.76 Mhz, Div10, LVPECL20;W 240-Ω Emitter Resistor, Dclkoutx_Mux=Divider, IDL=1, ODL=0, Single Ended

Clock Outputs (DCLKout and SDCLKout) www.ti.com
34
SNAU145B–MAY 2013–Revised March 2018
Submit Documentation Feedback
Copyright © 2013–2018, Texas Instruments Incorporated
Typical Phase Noise Performance Plots

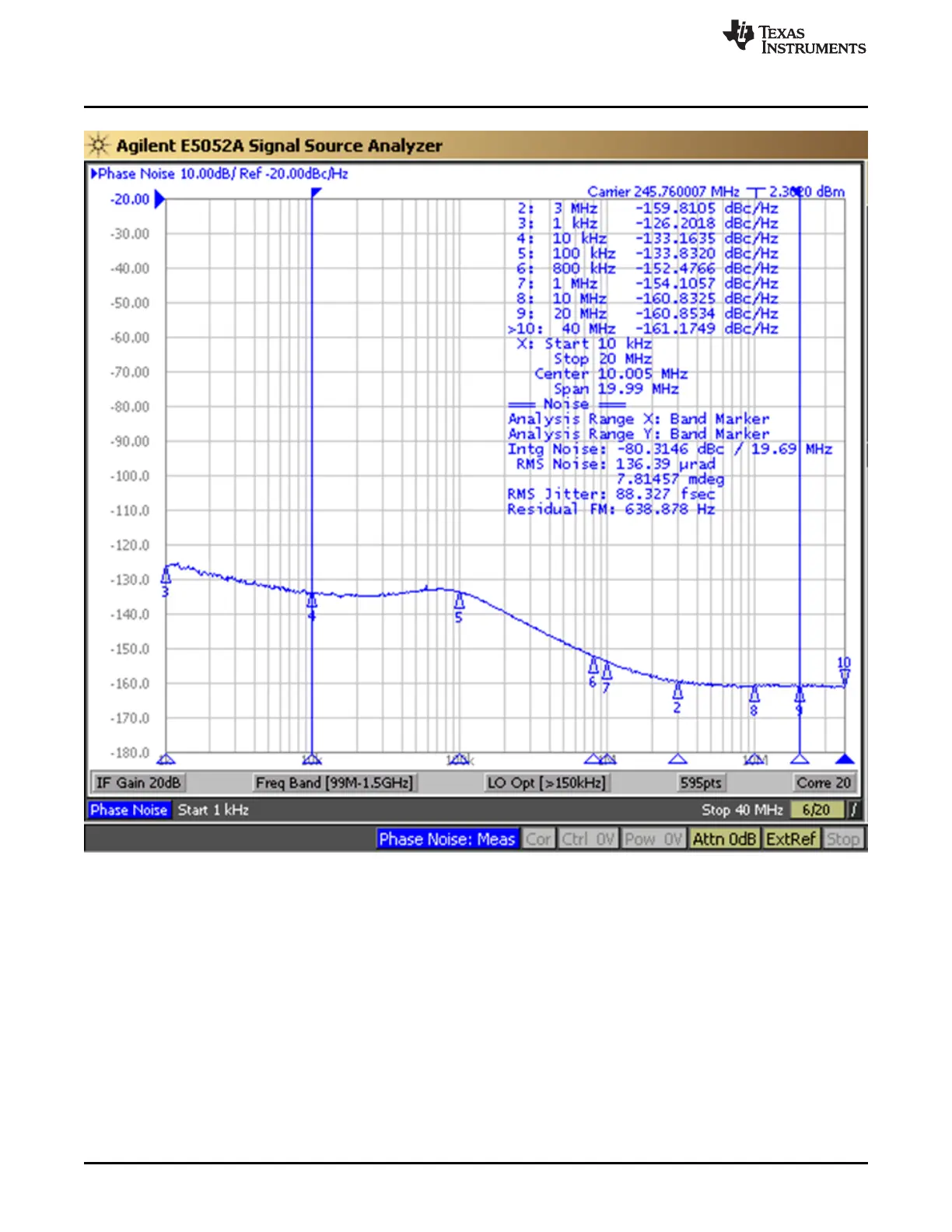

Figure 23. LMK04826 DCLKout2, VCO1, 245.76 MHz, Div10 , LVPECL20 /w
240-Ω Emitter Resistor, DCLKoutX_MUX=Divider, IDL=1, ODL=0, Single Ended
