Typical Phase Noise Performance Plots

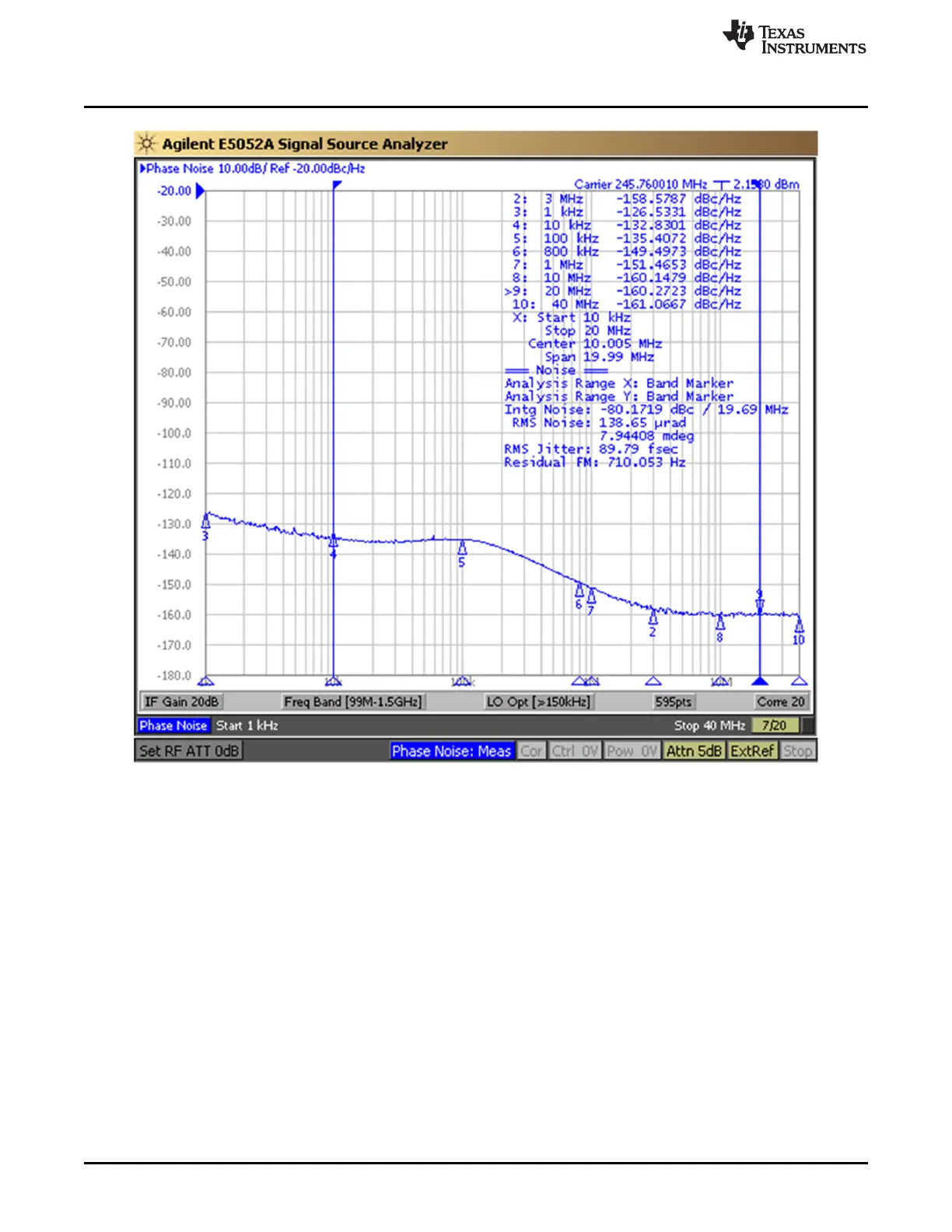

Figure 27. LMK04828 DCLKout2, VCO1, 245.76 MHz, Div12, LVPECL20 /w
240-Ω Emitter Resistor, DCLKoutX_MUX=Divider, IDL=1, ODL=0, Single Ended
