Typical Phase Noise Performance Plots

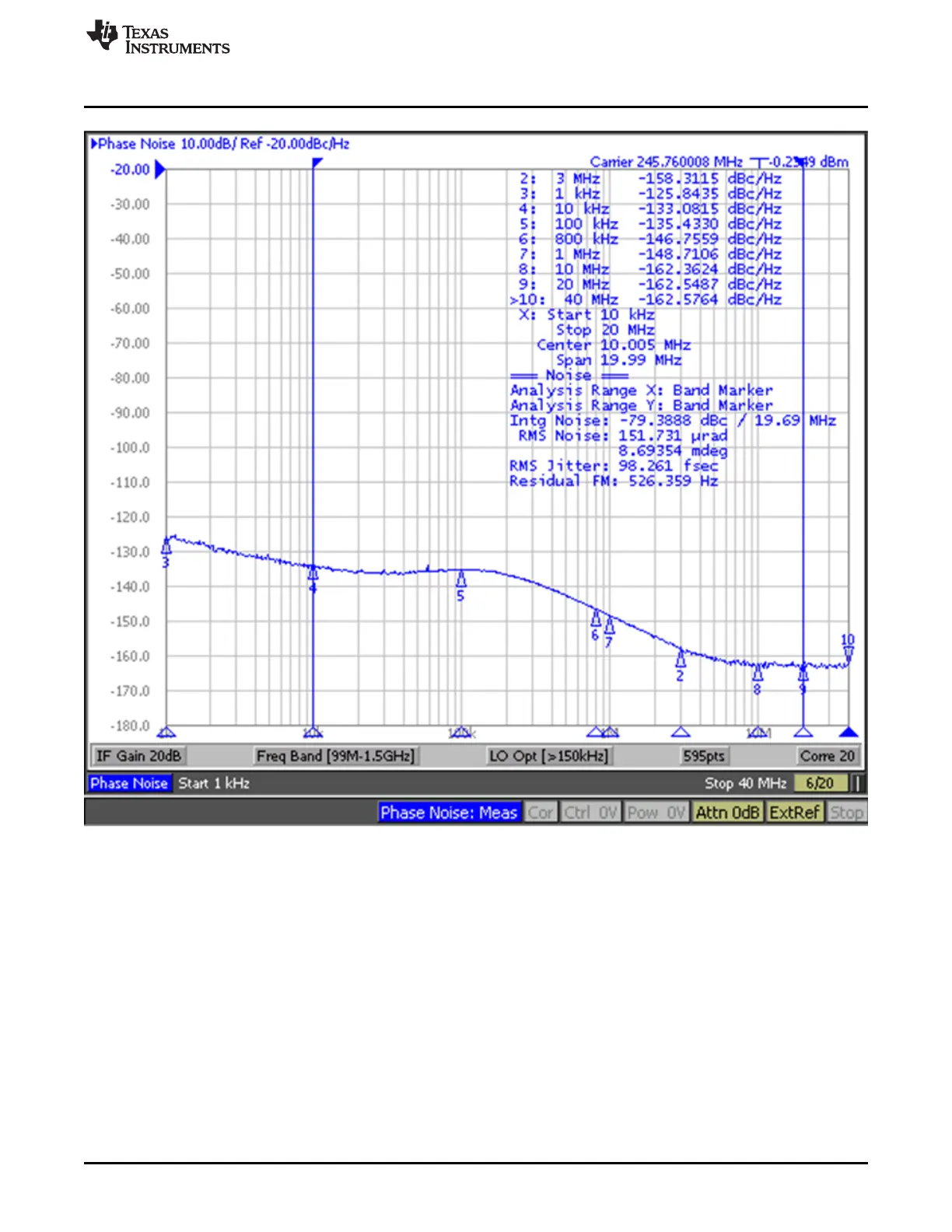

Figure 20. LMK04826 DCLKout2, VCO0, 245.76 MHz, Div8, LVPECL20 /w
240-Ω Emitter Resistor, DCLKoutX_MUX=Divider, IDL=1, ODL=0, Balun = Prodyn BIB-100G
