LMK04826 and LMK04828 User’s Guide

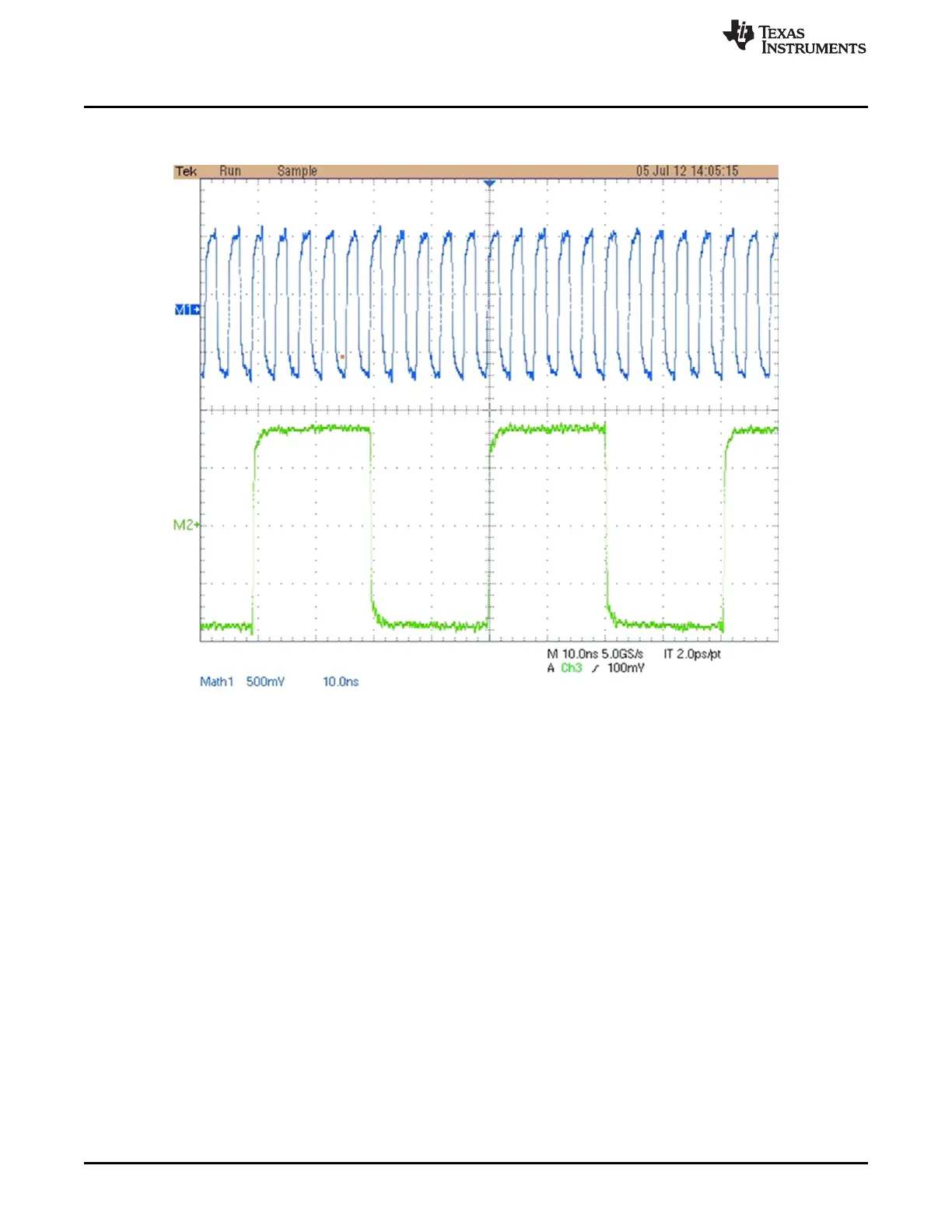

In Figure 3 and Figure 4, the Blue trace is DCLKout6 at 245.76 MHz and the Green trace is SDCLKout7
(SYSREF) at 24.475 MHz. Figure 5 shows the configuration of the LMK0482xB outputs.
Figure 3. Continuous SYSREF Output
