Typical Phase Noise Performance Plots

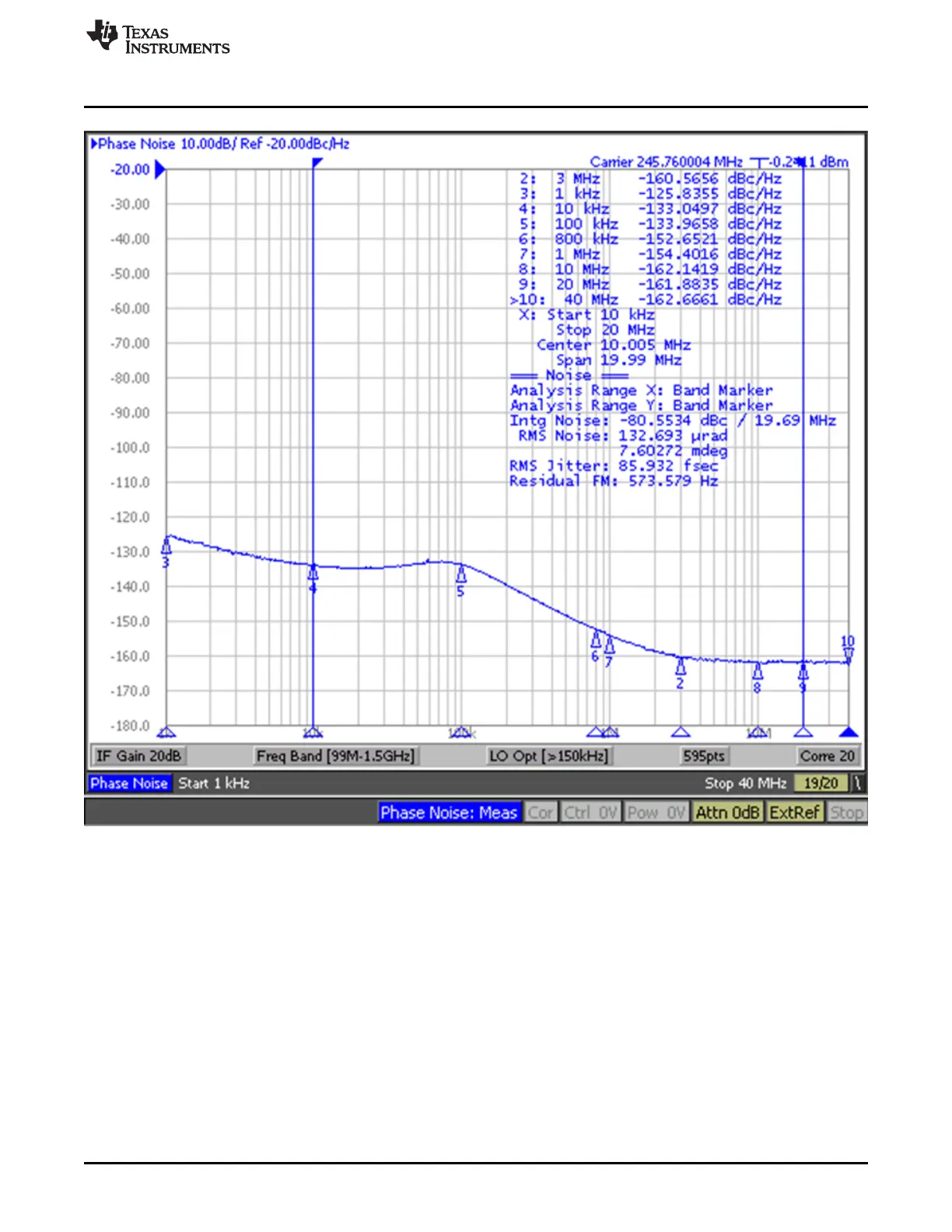

Figure 22. LMK04826 DCLKout2, VCO1, 245.76 MHz, Div10, LVPECL20 /w
240 ohm emitter resistor, DCLKoutX_MUX=Divider, IDL=1, ODL=0, Balun = Prodyn BIB-100G
