Texas Instruments MSP-FET430X110 - MSP-TS430 PW14 Target Socket Module, PCB

www.ti.com
Jumper J4
Open to disconnect LED
Orient Pin 1 of
MSP430 device
Jumper J6
Open to measure current
Connector J3
External power connector
Jumper J5 to 'ext'
LED connected to P1.0
Jumpers J7 to J12
Close 1-2 to debug in
Spy-Bi-Wire Mode.
Close 2-3 to debug in
4-wire JTAG mode.
Schematics and PCBs

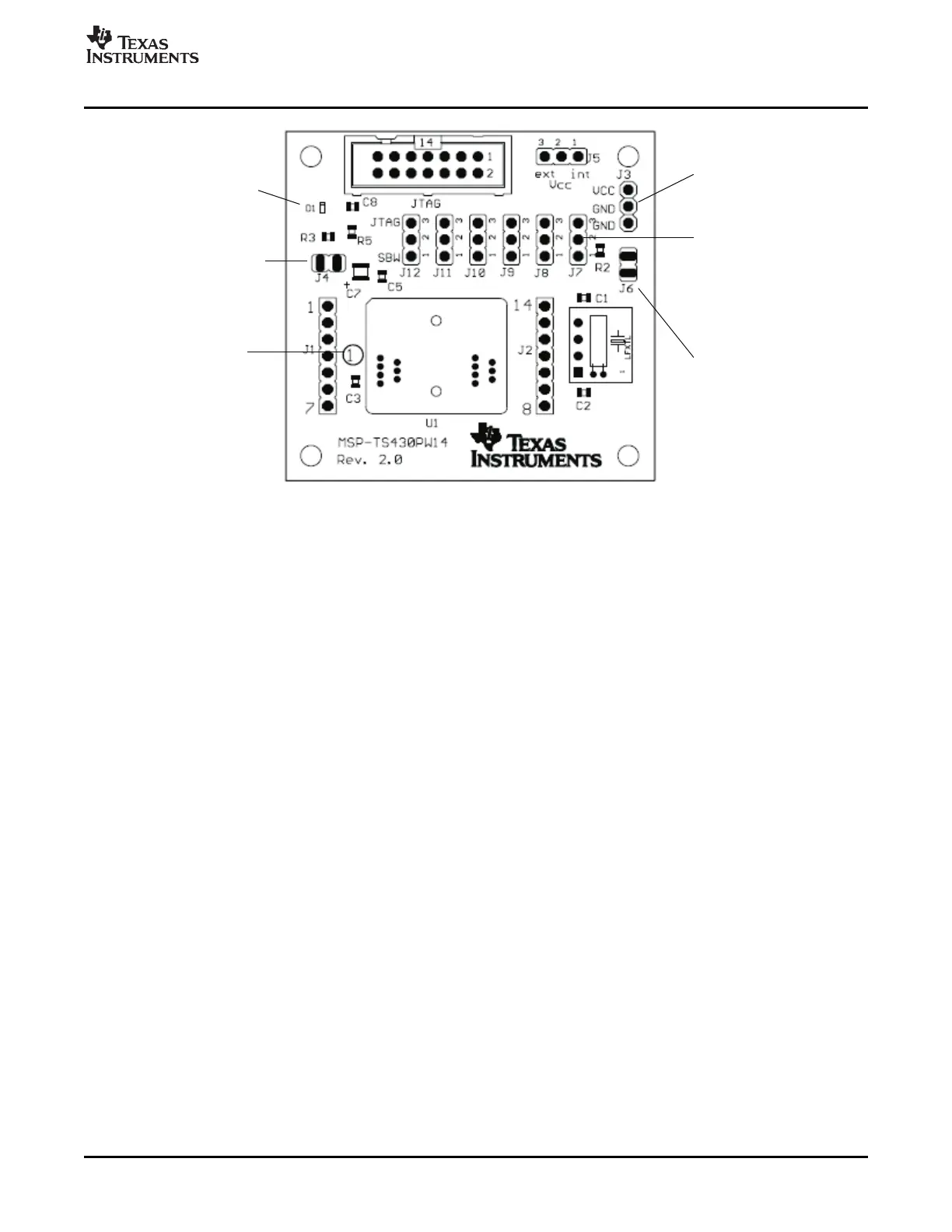

Figure B-4. MSP-TS430PW14 Target Socket Module, PCB
SLAU138F – June 2004 – Revised March 2007 Hardware 41
Submit Documentation Feedback
