Texas Instruments MSP-FET430X110 - MSP-TS430 PM64 Target Socket Module, Schematic

www.ti.com
Schematics and PCBs
Note: Connections between the JTAG header and pins XOUT and XIN are not required and should not be made.

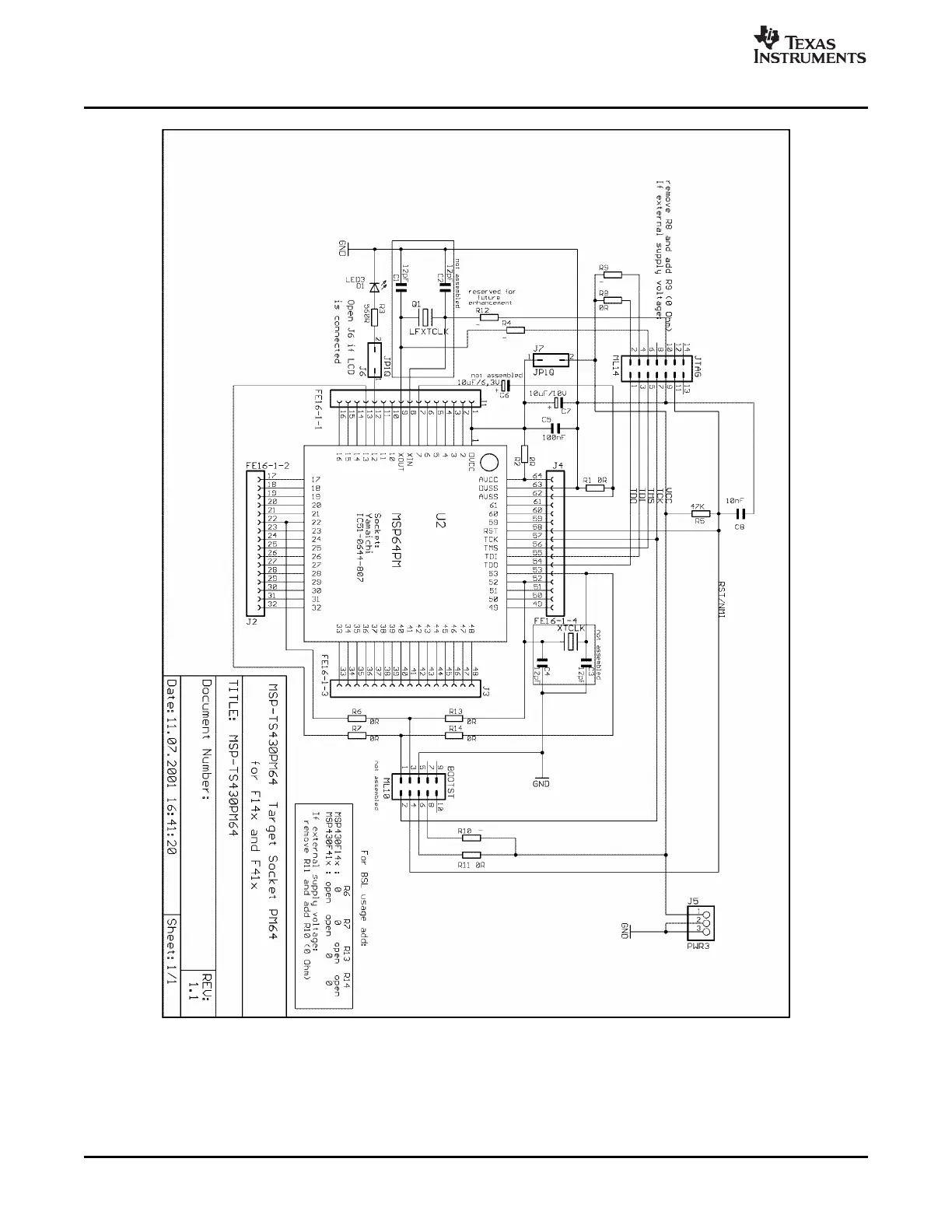

Figure B-13. MSP-TS430PM64 Target Socket Module, Schematic
50 Hardware SLAU138F – June 2004 – Revised March 2007
