Texas Instruments MSP-FET430X110 - MSP-TS430 PZ100 Target Socket Module, PCB

www.ti.com
Connector J5
External power connection
Remove R8 and jumper R9
LED connected to pin 12
Jumper J6
Open to disconnect LED
Orient Pin 1 of MSP430 device
Jumper J7
Open to measure current
Schematics and PCBs

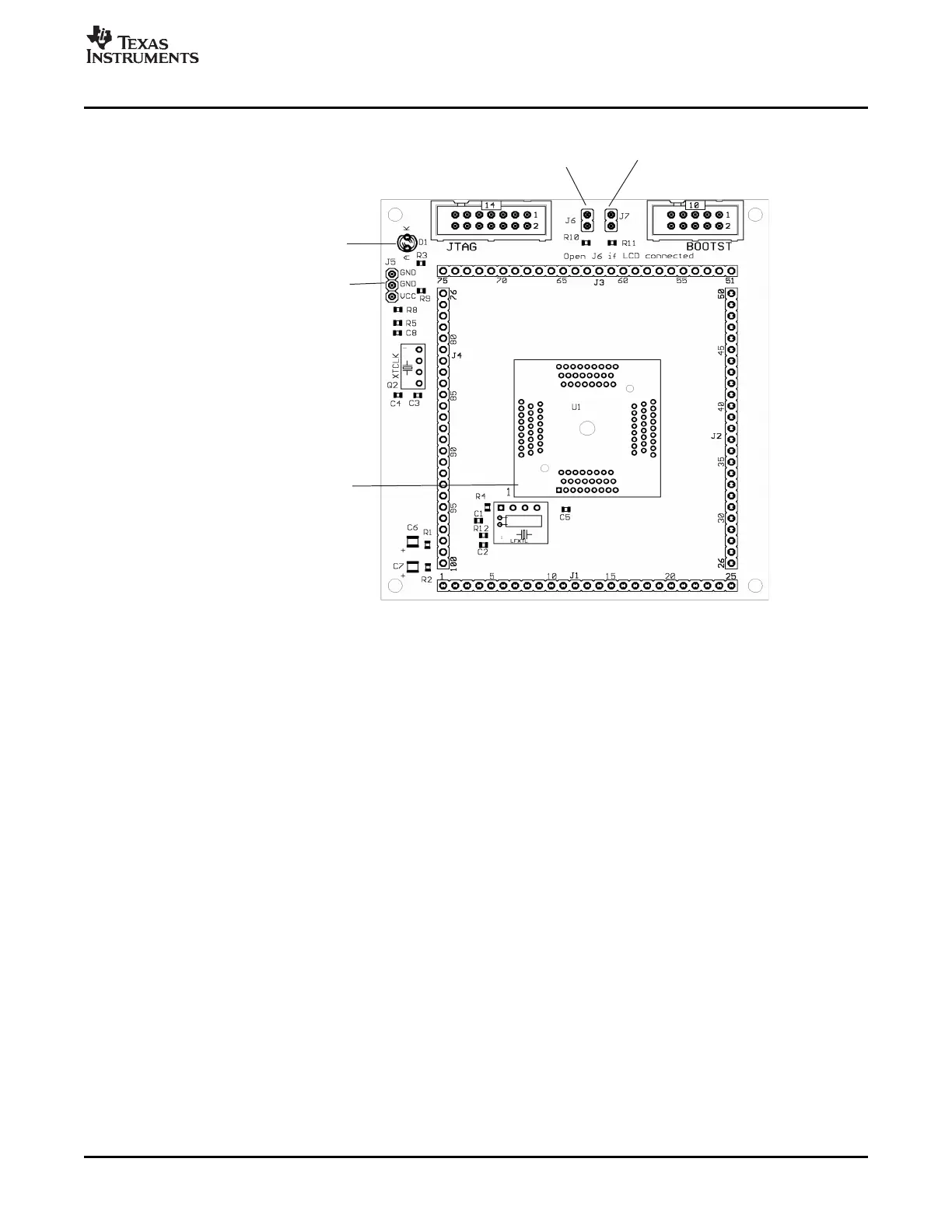

Figure B-18. MSP-TS430PZ100 Target Socket Module, PCB
