Texas Instruments MSP-FET430X110 - MSP-Ts430 Qfn23 X0 Target Socket Module, Schematic

www.ti.com
Schematics and PCBs

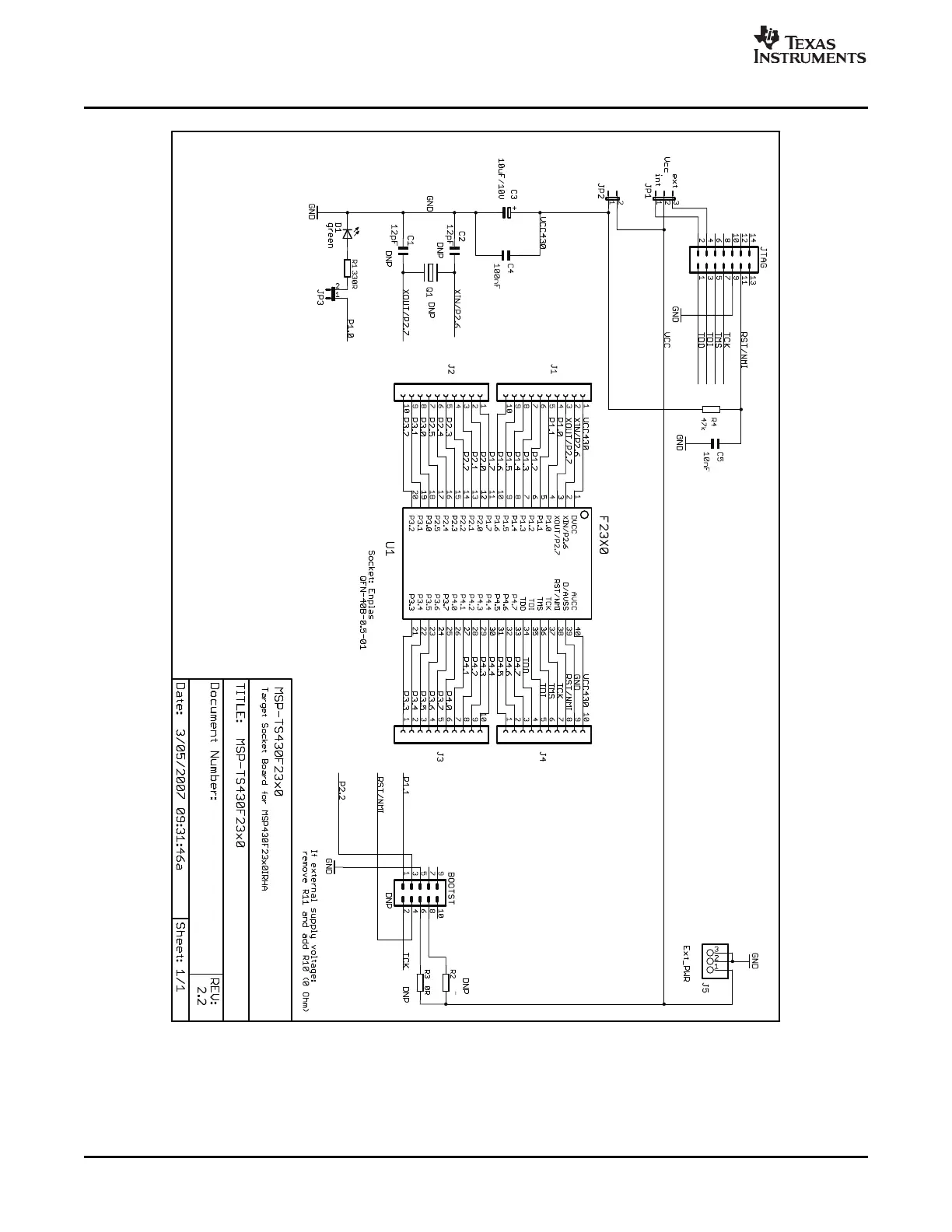

Figure B-9. MSP-TS430QFN23x0 Target Socket Module, Schematic
46 Hardware SLAU138F – June 2004 – Revised March 2007
Submit Documentation Feedback
